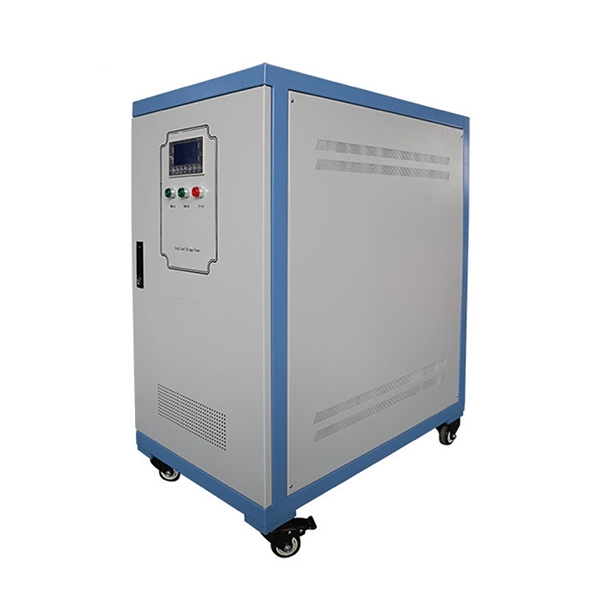

300 kVA Automatic Voltage Stabilizer, Three Phase, 208V/380V/480V

30kVA-3000kVA 3-Phase Voltage Stabilizer User Manual

Q1: What are the primary applications for a 300 kVA voltage stabilizer?

This unit is deployed in large-scale, power-critical environments, such as: Major Manufacturing & Processing Plants (automotive, steel, chemicals), Large Data Center Campuses, Hospital Complexes & Medical Research Facilities, Telecommunications Infrastructure Hubs, Water Treatment & Utility Plants, and Airport or Transportation Critical Systems. It's used where voltage instability can lead to massive financial loss, safety risks, or operational failure.

Q2: For such a large capacity (300 kVA), what are the critical installation and site preparation requirements?

Installation is a significant project:

• Structural & Spatial: Requires a dedicated, reinforced equipment room with substantial floor space, clear access routes for delivery, and often a specialized concrete foundation due to extreme weight.
• Electrical Infrastructure: The site must have an incoming utility service and distribution gear rated to handle the full input current. This often requires coordination with the local power utility.
• Cooling & Ventilation: Despite being air-cooled, it generates considerable heat. The room must have adequate forced ventilation or air conditioning to maintain ambient temperature within specified limits, often requiring engineered HVAC design.
• Professional Oversight: Installation must be executed and certified by a team of qualified power systems engineers and electricians.

Q3: How is "virtually maintenance-free" defined for a unit of this scale?

For a 300 kVA unit, "virtually maintenance-free" means it is designed for long intervals between scheduled services. Key aspects include: Sealed & Durable Components (like vacuum impregnated transformers), Advanced Solid-State Electronics with no moving parts in the control core, Self-Diagnostic Systems that predict maintenance needs, and Long-Life Design (e.g., special contact materials). Maintenance typically shifts from frequent adjustments to scheduled preventive inspections (e.g., annual thermal imaging, connection tightening, fan and filter checks) performed by qualified technicians, rather than reactive repairs.
