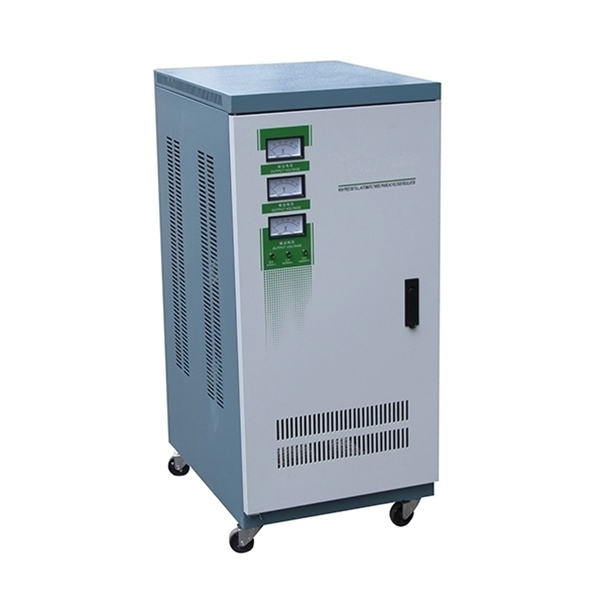

    15 kVA Automatic Voltage Stabilizer, Three Phase, 380V/400V/415V

    0 review(s) | Add your review
    SKU: PH-AVS-3P15K
    $2,962.31
    ● Engineered for demanding applications with a 15 kVA rating. ● Features a fast-response servo motor for precise, continuous voltage correction. ● Intelligent automatic control circuit ensures reliable, maintenance-free operation. ● Both input and output voltages can be tailored to your specific needs. ● The default 3-phase 380V configuration is the backbone of industrial power systems.
    *
    *
    *
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ⏱️ Delivery: 10-20 days
    🔙 30-day Returns
    Related products

    8 kVA Automatic Voltage Stabilizer, Three Phase, 220V/380V/400V

    ● Rated capacity is 8 kVA, with automatic voltage stabilization ● Wide AC input voltage range reaches 304V–456V (±20%) ● Standard 3 phase 380V output, customizable to 415V or 480V ● Designed for three-phase four-wire power systems ● Suitable for industrial equipment and commercial power applications
    $2,294.26

    20 kVA Automatic Voltage Stabilizer, Three Phase, 230V/440V/460V

    ● 20 kVA capacity for demanding equipment with ±1% output accuracy. ● Compatible with 304V-456V AC input (380V ±20% tolerance). ● Built-in protections against voltage anomalies, overheating, and short circuits. ● Clear LED display for monitoring key parameters and system status. ● Standard 380V output with customization options for diverse applications.
    $3,110.16

    30 kVA Automatic Voltage Stabilizer, Three Phase, 240V/415V/480V

    ● Features a robust 30 kVA servo motor for precise and responsive voltage correction. ● Default configuration handles a wide three-phase input range of 304V-456V AC (±20%) with a stable 380V output. ● Both input and output voltage parameters can be factory-customized to meet specific regional or equipment requirements. ● Automatically and continuously adjusts to stabilize output voltage amidst supply fluctuations or changing load conditions. ● Integrated safeguards include over-voltage, under-voltage, overload, overheat, and short circuit protection. ● Equipped with an LCD and menu navigation buttons for easy monitoring, setting adjustments, and status checks.
    $4,963.05

    40 kVA Automatic Voltage Stabilizer, Three Phase, 208V/380V/415V

    ● Delivers a substantial 40 kVA capacity, providing robust voltage support for multiple critical systems or high-demand machinery. ● Features a full-automatic compensated servo motor system for real-time, precise voltage correction without waveform distortion. ● Offers user-selectable output accuracy of ±1% for ultra-sensitive equipment or ±2-4% for standard industrial applications. ● Default configuration supports a wide three-phase, four-line input range (Phase: 175V-265V / Line: 304V-456V) with a stable 380V output, adaptable to diverse grid conditions.
    $6,080.49

    50 kVA Automatic Voltage Stabilizer, Three Phase, 220V/400V/440V

    ● Provides a robust 50 kVA power capacity, designed for medium to large industrial power applications. ● Incorporates advanced computer programming for precise, adaptive, and self-optimizing voltage regulation. ● Operates at an efficiency of＞95%, minimizing operational energy costs and heat generation. ● Handles a broad three-phase input range (Line: 304V-456V AC; Phase: 175V-265V) and delivers a stable, customizable 380V output.
    $6,829.23

    60 kVA Automatic Voltage Stabilizer, Three Phase, 380V/400V/460V

    ● 60 kVA rating, ideal for industrial plants and commercial buildings. ● Handles wide input range (304V-456V); factory-selectable 380V/415V/480V output. ● Highly space-efficient and aesthetically sleek for easier integration into modern facilities. ● Engineered for long-term reliability with minimal service requirements. ● >95% operational efficiency, reducing energy loss and operational costs.
    $8,133.87
    Overview

    Our 15 kVA 3-phase automatic voltage stabilizer is built with a high-torque servo motor and robust regulator for superior performance in high-power, variable-load applications. With a standard 380V three-phase output and an input-voltage tolerance of ±20%, it effectively compensates for grid instability and load fluctuations, ensuring reliable power delivery. Built with a servo-motor regulation system and an intelligent automatic control circuit, this stabilizer achieves output-voltage accuracy of up to ±1%, making it ideal for power-sensitive industrial equipment. Both input and output voltages can be customized, allowing flexible integration into different power environments and regional standards.

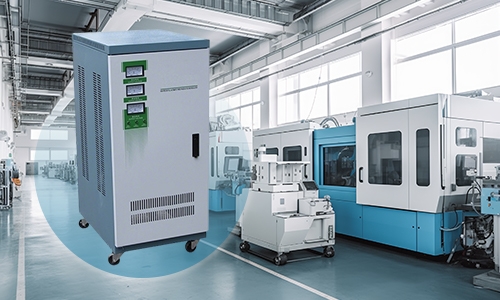

    15 kVA 3 phase voltage stabilizer feature

    Feature

    • High-Capacity Power Core: Engineered for demanding applications with a 15 kVA rating.
    • Servo Motor Precision: Features a fast-response servo motor for precise, continuous voltage correction.
    • Advanced Control Circuitry: Intelligent automatic control circuit ensures reliable, maintenance-free operation.
    • Ultra-Stable Output: Guarantees a high-precision output with accuracy up to ±1%.
    • Custom Voltage Solutions: Both input and output voltages can be tailored to your specific needs.
    • Wide Compatibility: The default 3-phase 380V configuration is the backbone of industrial power systems.


    Details

    1. Heat dissipation holes
    2. Voltage display
    3. Circuit breaker
    4. Bypass
    15 kVA 3 phase voltage stabilizer details

    3 Phase Voltage Stabilizer Schematic Diagram

    3 phase voltage stabilizer schematic diagram

    Specs
    Capacity 15 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
    Phase 3-Phase 4-line
    Input Voltage Range ±15% tolerance for all standard output voltages above 380V.
    ±20% tolerance for the required 380V output and all standard voltages below.
    Output Voltage 3-phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Output Accuracy ±2~4% / ±1% (Optional)
    * In case of output accuracy of ±2~4%, the voltage stabilizer will be servomotor-based, and in case of output accuracy of ±1%, the voltage stabilizer would be SCR-based.
    Frequency 50Hz/60Hz
    Current Type AC
    Efficiency ≥95%
    Response Time ≤1.5S
    Ambient Temperature -15°C~+40°C
    Cooling Method Air-cooled
    Insulation Resistance ≥5MΩ
    Electrical Intensity Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
    Overload Capacity Overload current (%) Duration (min)
    20 ≤60
    40 ≤15
    60 ≤5
    Waveform Distortion Non-lack fidelity waveform
    Protection Over-voltage, over-current, feed phases
    Protection Grade IP 24
    Warranty 12 months
    Certificate ISO9001:2008, CE
    Weight 140 Kg
    Package Size 450×370×790 (mm)
    Application
    3 phase automatic voltage stabilizer for medical equipment

    Medical Equipment

    3 phase automatic voltage stabilizer for communication circuits

    Communication Circuits

    3 phase automatic voltage stabilizer for CNC machine tools

    CNC Machine Tools

    3 phase automatic voltage stabilizer for power distribution equipment

    Power Distribution Equipment

    FAQ

    Q1: How does the servo motor system improve performance compared to other technologies?

    The high-torque servo motor allows for faster, more precise, and smoother voltage adjustments. This results in a more stable output, reduced wear on internal components, and superior handling of rapid voltage sags or surges.

    Q2: Can this 15 kVA voltage stabilizer handle the high inrush currents from large motors?

    Yes. The 15 kVA capacity and the robust design of the regulator and servo system are engineered to manage the high starting currents typical of large industrial motors, pumps, and compressors without compromising output stability.

    Q3: Is professional installation required?

    We strongly recommend installation by a qualified electrician to ensure correct wiring, proper grounding, and adherence to all local electrical codes and safety standards for a three-phase system. This is crucial for safety and optimal performance.
