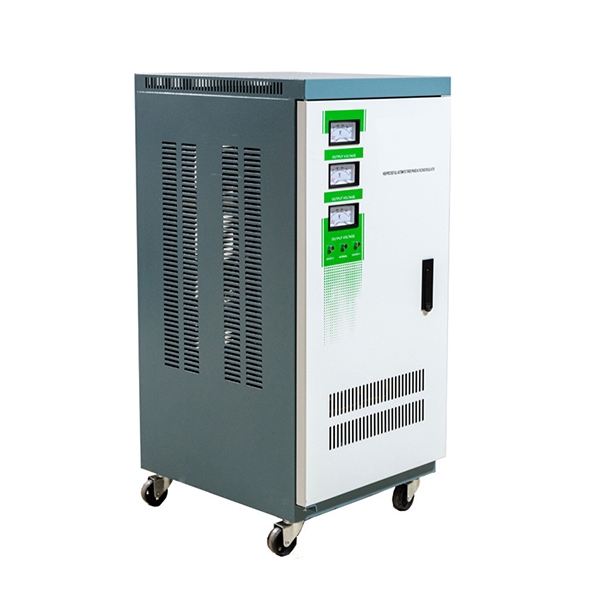

    8 kVA Automatic Voltage Stabilizer, Three Phase, 220V/380V/400V

    0 review(s) | Add your review
    SKU: PH-AVS-3P8K
    $2,294.26
    ● Rated capacity is 8 kVA, with automatic voltage stabilization ● Wide AC input voltage range reaches 304V–456V (±20%) ● Standard 3 phase 380V output, customizable to 415V or 480V ● Designed for three-phase four-wire power systems ● Suitable for industrial equipment and commercial power applications
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    15 kVA Automatic Voltage Stabilizer, Three Phase, 380V/400V/415V

    ● Engineered for demanding applications with a 15 kVA rating. ● Features a fast-response servo motor for precise, continuous voltage correction. ● Intelligent automatic control circuit ensures reliable, maintenance-free operation. ● Both input and output voltages can be tailored to your specific needs. ● The default 3-phase 380V configuration is the backbone of industrial power systems.
    $2,962.31

    20 kVA Automatic Voltage Stabilizer, Three Phase, 230V/440V/460V

    ● 20 kVA capacity for demanding equipment with ±1% output accuracy. ● Compatible with 304V-456V AC input (380V ±20% tolerance). ● Built-in protections against voltage anomalies, overheating, and short circuits. ● Clear LED display for monitoring key parameters and system status. ● Standard 380V output with customization options for diverse applications.
    $3,110.16

    30 kVA Automatic Voltage Stabilizer, Three Phase, 240V/415V/480V

    ● Features a robust 30 kVA servo motor for precise and responsive voltage correction. ● Default configuration handles a wide three-phase input range of 304V-456V AC (±20%) with a stable 380V output. ● Both input and output voltage parameters can be factory-customized to meet specific regional or equipment requirements. ● Automatically and continuously adjusts to stabilize output voltage amidst supply fluctuations or changing load conditions. ● Integrated safeguards include over-voltage, under-voltage, overload, overheat, and short circuit protection. ● Equipped with an LCD and menu navigation buttons for easy monitoring, setting adjustments, and status checks.
    $4,963.05

    40 kVA Automatic Voltage Stabilizer, Three Phase, 208V/380V/415V

    ● Delivers a substantial 40 kVA capacity, providing robust voltage support for multiple critical systems or high-demand machinery. ● Features a full-automatic compensated servo motor system for real-time, precise voltage correction without waveform distortion. ● Offers user-selectable output accuracy of ±1% for ultra-sensitive equipment or ±2-4% for standard industrial applications. ● Default configuration supports a wide three-phase, four-line input range (Phase: 175V-265V / Line: 304V-456V) with a stable 380V output, adaptable to diverse grid conditions.
    $6,080.49
    Overview

    This 8 kVA 3-phase automatic voltage stabilizer is designed to provide reliable and precise voltage regulation for industrial and commercial power systems. Featuring a wide input voltage range of 304V–456V AC (±20%) and a standard 380V output, it effectively protects sensitive equipment from voltage fluctuations caused by unstable grids. With a compact industrial-grade design, LED status display, and IP24 protection level, this stabilizer is suitable for three-phase four-wire systems where consistent voltage stability is essential. Multiple output voltages, including 380V, 415V, and 480V, are available to meet different regional and application requirements.

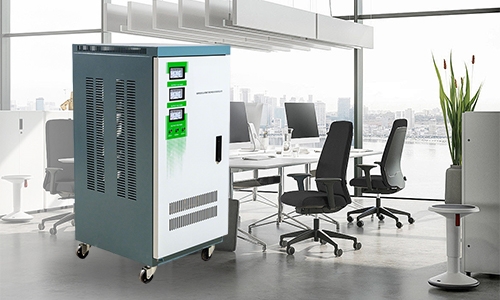

    8 kVA 3 phase voltage stabilizer feature

    Feature

    • Industrial-Grade Precision: Ensures a perfectly stable output voltage of 380V (±1%) under the demanding conditions of a wide input range from 304V to 456V AC.
    • Customizable & Compact Solution: Offers flexible output voltage selection (380V/415V/480V...) and features a highly compact, virtually maintenance-free design ideal for space-conscious installations.
    • Intuitive Monitoring & Robust Protection: Equipped with a clear LED display for real-time voltage monitoring and housed in an IP24-rated cabinet for reliable protection in industrial and commercial settings.
    • Seamless System Integration: Specifically engineered for three-phase four-line power systems, ensuring a stable and safe voltage supply for critical machinery and sensitive processes.


    Details

    1. Heat dissipation holes
    2. Voltage display
    3. Circuit breaker
    4. Bypass
    8 kVA 3 phase voltage stabilizer details

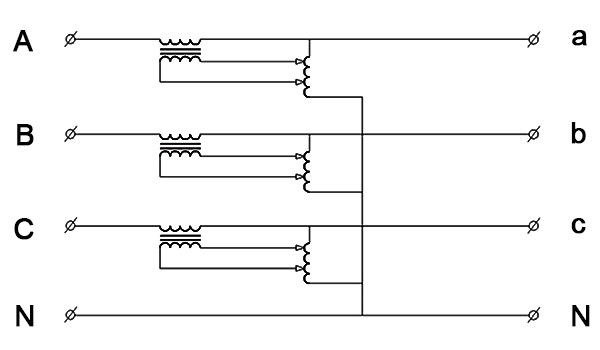

    3 Phase Voltage Stabilizer Schematic Diagram

    3 phase voltage stabilizer schematic diagram

    Specs
    Capacity 8 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
    Phase 3-Phase 4-line
    Input Voltage Range ±15% tolerance for all standard output voltages above 380V.
    ±20% tolerance for the required 380V output and all standard voltages below.
    Output Voltage 3-phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Output Accuracy ±2~4% / ±1% (Optional)
    * In case of output accuracy of ±2~4%, the voltage stabilizer will be servomotor-based, and in case of output accuracy of ±1%, the voltage stabilizer would be SCR-based.
    Frequency 50Hz/60Hz
    Current Type AC
    Efficiency ≥95%
    Response Time ≤1.5S
    Ambient Temperature -15°C~+40°C
    Cooling Method Air-cooled
    Insulation Resistance ≥5MΩ
    Electrical Intensity Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
    Overload Capacity Overload current (%) Duration (min)
    20 ≤60
    40 ≤15
    60 ≤5
    Waveform Distortion Non-lack fidelity waveform
    Protection Over-voltage, over-current, feed phases
    Protection Grade IP 24
    Warranty 12 months
    Certificate ISO9001:2008, CE
    Weight 120 Kg
    Package Size 370×340×790 (mm)
    Application
    3 phase automatic voltage stabilizer for medical equipment

    Medical Equipment

    3 phase automatic voltage stabilizer for communication circuits

    Communication Circuits

    3 phase automatic voltage stabilizer for CNC machine tools

    CNC Machine Tools

    3 phase automatic voltage stabilizer for power distribution equipment

    Power Distribution Equipment

    FAQ

    Q1: Can the output voltage be set to a value other than 380V?

    Yes. While 380V is the default standard output, this model can be factory-customized to provide a stable 415V or 480V output to meet specific regional or equipment requirements.

    Q2: Is this voltage stabilizer suitable for outdoor use?

    The unit features an IP24 protection level, meaning it is protected against solid objects larger than 12.5mm and water splashes from any direction. It is ideal for indoor industrial environments or sheltered outdoor installations, but is not designed for complete exposure to heavy rain or submersion.

    Q3: What makes this a "virtually maintenance-free" solution?

    Our voltage stabilizer is built with robust, industrial-grade components and a solid-state design that minimizes moving parts prone to wear. This engineering focus ensures long-term reliability and consistent performance with minimal need for servicing.
