    Picture of DC-DC Boost-Buck Converter, 5V-36V to 12V
    Picture of DC-DC Boost-Buck Converter, 5V-36V to 12V
    Picture of DC-DC Boost-Buck Converter, 5V-36V to 12V
    Picture of DC-DC Boost-Buck Converter, 5V-36V to 12V
    Picture of DC-DC Boost-Buck Converter, 5V-36V to 12V

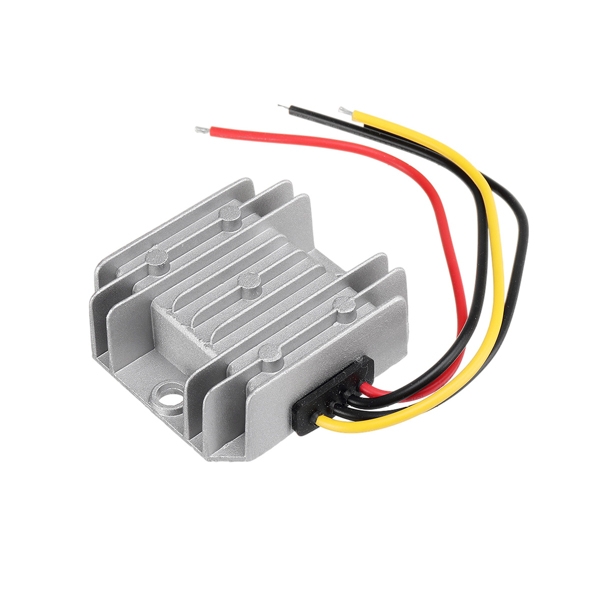

    DC-DC Boost-Buck Converter, 5V-36V to 12V

    0 review(s) | Add your review
    SKU: PH-DCBBC-5-36S12
    $47.25
    ● Input supports 5-36V, output constant 12V voltage, DC-DC boost-buck converter with multiple protections. ● High-quality 18 AWG cables with up to 3A output current provide a cost-effective solution for industrial needs for 12V stabilized power. ● The 12v buck boost converter features ±1% voltage regulation, 2% load regulation, no-load loss of only 28mA, and 64mV ripple noise. ● Free-air convection heat sink design with a temperature range of -40°C~80°C for reliable operation in harsh environments.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    DC-DC Boost-Buck Converter, 8V-36V to 12V

    ● High-power DC converter with input voltage range of 8V-36V, supports boost and buck automatic conversion, and can stabilize 12V output. ● Conversion efficiency up to 96.8%, support up to 10A output current, built-in 20A fuse. ● With natural air-cooled design, the output voltage is precisely controlled at ±1% and supports up to 10000μF external capacitor load. ● The DC-DC step up step down converter is equipped with TVS anti-surge protection and automatic under-voltage recovery, and supports long-time short-circuit protection.
    $59.45

    DC-DC Boost and Buck Converter, 8V-40V to 12V

    ● DC-DC boost and buck converter supports 8V-40V wide voltage input and output stabilized at 11.9-12.3V with multiple safety mechanisms. ● Built-in 20A fuse, support up to 3A/6A/10A/20A/25A/30A stabilized current output options. ● High efficiency conversion rate up to 89.1%, MTBF over 200,000 hours, suitable for long-term operation system. ● Reasonable price and multiple solutions are suitable for powering a wide range of devices such as routers, motor drives, security monitoring and so on.
    $52.53

    DC-DC Boost-Buck Converter, 8V-40V to 13.8V

    ● DC-DC buck and boost converter with a wide input voltage range of 8-40V is an efficient and stable bi-directional voltage regulator module. ● The output of high current buck boost converter is stabilized at 13.8V, and the output current supports 3A/5A/10A/20A. ● Conversion efficiency of more than 90%, even at low voltage can provide stable power. ● Power supply noise as low as 250mVp-p and cost-effective design with built-in 20A fuse and short-circuit protection are available from stock.
    $57.35

    DC-DC Boost-Buck Converter, 9V-36V to 24V

    ● High performance DC-DC boost-buck converter, good price for sale, input voltage range 9-36V. ● Support undervoltage auto recovery, high reliability, high efficiency up to 97.8%, max output current 6A. ● 24V buck boost converter only about 100mA current consumption when no load, with good temperature rise control and EMC. ● The power module is naturally cooled and supports operating temperatures from -40°C to 50°C , making it ideal for use in harsh climates.
    $61.65

    DC-DC Boost and Buck Converter, 9V-40V to 24V

    ● In stock to support boost and buck DC converter for sale, 9V-40V to 24V regulator module, ±1% high precision voltage regulation. ● A variety of output current options (2A/3A/6A/10A/15A), the user can be flexible according to the actual power requirements. ● The boost and buck converter has a built-in input 20A fuse, strong safety, MTBF up to 200,000 hours, suitable for long-time continuous operation. ● High voltage buck boost converter is suitable for vehicle power supply, solar energy system, motor control and other scenarios, efficiency up to 98%.
    $53.18

    DC-DC Boost-Buck Converter, 9V-40V to 28V

    ● Buck and boost converter 9V-40V wide input, automatic boost or buck output 28V, to meet a variety of power supply needs. ● The output voltage is stabilized at 28V (±1% accuracy), and the current can be up to 5A/10A/15A, with high-quality output filtering, the power can be up to 420W. ● The no-load current is only 67mA, and the high frequency 130kHz ±10kHz switching design effectively reduces energy consumption and minimizes interference. ● DC-DC step up down converter can work under -40°C to 50°C, built-in EMC protection and insulation structure, insulation resistance ≥ 50MΩ, strong anti-interference.
    $67.56
    Overview

    DC-DC boost-buck converter is suitable for 5V-36V wide input voltage, regulated output 12V, maximum power 36W, with ±1% voltage accuracy and IP68 waterproof grade. Suitable for car, solar system, monitoring power supply and other scenes for sale, high efficiency up to 90%, stable performance, price advantage.

    DC DC boost buck converter 5v-36v features

    Feature

    • Buck and boost converter overall use of high quality thermally conductive silicone potting, shockproof aluminum alloy shell, small size, easy to install.
    • DC-DC converter with built-in protection functions of over-current, low voltage, over-temperature and short circuit.
    • 5-36V wide voltage input, up to 90% conversion efficiency, maximum output power up to 36W.
    • No-load loss of only 28mA, with a long service life of more than 100000 hours.

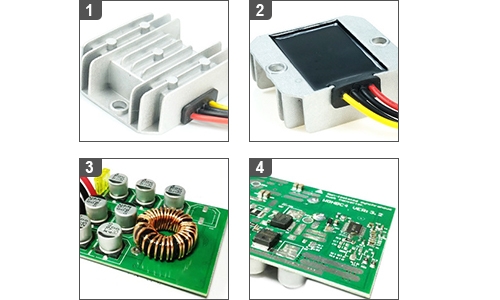

    Details

    1. High-quality die-casting aluminum is used for the dc to dc voltage converter case package, with good heat dissipation, safe and reliable.
    2. Excellent organic silicone potting, with waterproof, dustproof, shockproof, IP68 waterproof and other qualities.
    3. Pure copper inductor with magnetic core can play an effective role in boost buck converter internal filtering, oscillation, trapping. The good or bad inductance will directly affect the stability of the power supply.
    4. SMT SMD process uses brand new and high quality electronic components (e.g. TIIPPO, etc.) with high stability and reliability.
    DC DC boost buck converter 5v-36v details

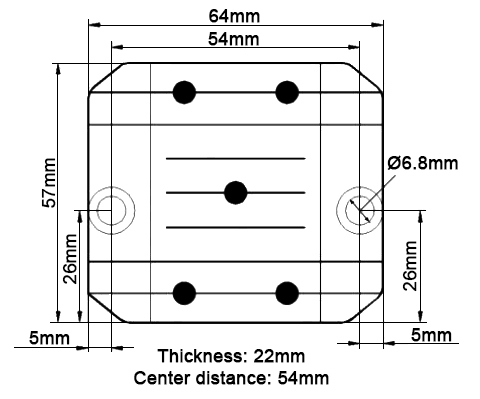

    Dimension (unit: mm)

    DC DC boost buck converter 5v-36v dimension

    Wiring Diagram

    DC DC boost buck converter 5v-36v wiring

    Specs
    Input
    Rated Voltage 12V
    Working Voltage Range 5-36V
    Efficiency 90% @ 24V input test
    Positive Cable (Red) 18 AWG@16.5CM
    Negative Cable (Black) 18 AWG@16.5CM
    Output
    Voltage 12V
    Maximum Rated Current 3A
    Maximum Power Rating 36W
    Voltage Adjustment Ratio ±1%
    Load Adjustment Ratio 2%
    No-load Loss 28mA @ 24V input test
    Ripple & Noise 64mV (full load test)
    Positive Cable (Yellow) 18 AWG@16.5CM
    Negative Cable (Black) 18 AWG@16.5CM
    Working Environment
    Working Temperature -40°C ~ +80°C
    Working Humidity 10%RH ~ 90%RH
    Storage Temperature -40°C ~ +100°C
    Protection Function
    Short Circuit Protection Yes
    Overcurrent Protection Yes
    Waterproofing IP68
    Over Temperature Protection Yes
    Low Voltage Protection Yes
    Physical Datas
    Weight 120g
    Dimension 57*64*22mm
    Heat Dissipation Method Free air convection
    Package White box

    PDF computing5V-36V to 12V, 3A DC-DC Boost-Buck Converter User Manual

    Application
    Industrial equipment

    Industrial Equipment

    Automotive equipment

    Automotive Equipment

    Vehicle LED advertising

    Vehicle LED Advertising

    Communication equipment

    Communication Equipment

    FAQ

    Q1: What is overcurrent protection in boost buck converter?

    When the output current is greater than the set value, the output voltage value decreases gradually until no voltage is output. (When the starting load is too large, it will start the overcurrent protection and no output voltage. Common inductive loads, such as motors, pumps, etc.)

    Q2: Explanation of over-temperature protection in buck and boost converter

    When the chip temperature of the dc buck boost converter is greater than 150°C, the power converter stops working and no voltage is output. (Note: This temperature does not mean the working environment temperature)

    Q3: Short circuit protection

    Under normal use, an instantaneous short circuit of the positive and negative terminals of the output will not cause damage to the DC-DC power converter. (Note: This protection includes all step-down, step-up and isolation products, step-up products do not have this protection).
