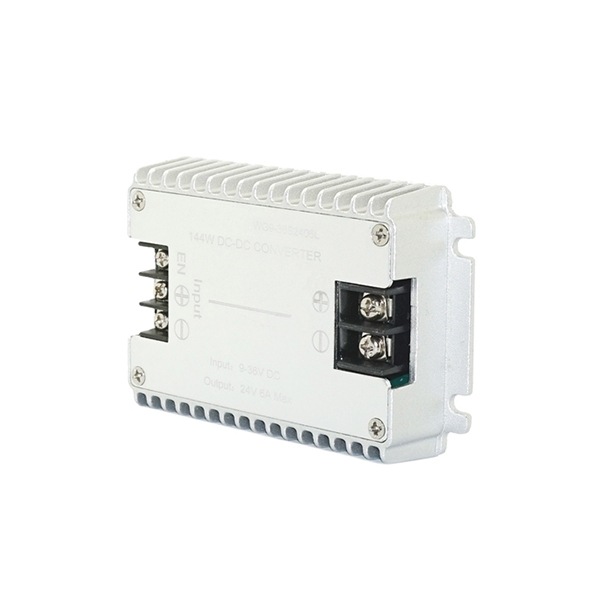

    DC-DC Boost-Buck Converter, 9V-36V to 24V

    0 review(s) | Add your review
    SKU: PH-DCBBC-9-36S24
    $61.65
    ● High performance DC-DC boost-buck converter, good price for sale, input voltage range 9-36V. ● Support undervoltage auto recovery, high reliability, high efficiency up to 97.8%, max output current 6A. ● 24V buck boost converter only about 100mA current consumption when no load, with good temperature rise control and EMC. ● The power module is naturally cooled and supports operating temperatures from -40°C to 50°C , making it ideal for use in harsh climates.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    DC-DC Boost and Buck Converter, 9V-40V to 24V

    ● In stock to support boost and buck DC converter for sale, 9V-40V to 24V regulator module, ±1% high precision voltage regulation. ● A variety of output current options (2A/3A/6A/10A/15A), the user can be flexible according to the actual power requirements. ● The boost and buck converter has a built-in input 20A fuse, strong safety, MTBF up to 200,000 hours, suitable for long-time continuous operation. ● High voltage buck boost converter is suitable for vehicle power supply, solar energy system, motor control and other scenarios, efficiency up to 98%.
    $53.18

    DC-DC Boost-Buck Converter, 9V-40V to 28V

    ● Buck and boost converter 9V-40V wide input, automatic boost or buck output 28V, to meet a variety of power supply needs. ● The output voltage is stabilized at 28V (±1% accuracy), and the current can be up to 5A/10A/15A, with high-quality output filtering, the power can be up to 420W. ● The no-load current is only 67mA, and the high frequency 130kHz ±10kHz switching design effectively reduces energy consumption and minimizes interference. ● DC-DC step up down converter can work under -40°C to 50°C, built-in EMC protection and insulation structure, insulation resistance ≥ 50MΩ, strong anti-interference.
    $67.56

    DC-DC Boost-Buck Converter, 5V-36V to 12V

    ● Input supports 5-36V, output constant 12V voltage, DC-DC boost-buck converter with multiple protections. ● High-quality 18 AWG cables with up to 3A output current provide a cost-effective solution for industrial needs for 12V stabilized power. ● The 12v buck boost converter features ±1% voltage regulation, 2% load regulation, no-load loss of only 28mA, and 64mV ripple noise. ● Free-air convection heat sink design with a temperature range of -40°C~80°C for reliable operation in harsh environments.
    $47.25

    DC-DC Boost-Buck Converter, 8V-36V to 12V

    ● High-power DC converter with input voltage range of 8V-36V, supports boost and buck automatic conversion, and can stabilize 12V output. ● Conversion efficiency up to 96.8%, support up to 10A output current, built-in 20A fuse. ● With natural air-cooled design, the output voltage is precisely controlled at ±1% and supports up to 10000μF external capacitor load. ● The DC-DC step up step down converter is equipped with TVS anti-surge protection and automatic under-voltage recovery, and supports long-time short-circuit protection.
    $59.45

    DC-DC Boost and Buck Converter, 8V-40V to 12V

    ● DC-DC boost and buck converter supports 8V-40V wide voltage input and output stabilized at 11.9-12.3V with multiple safety mechanisms. ● Built-in 20A fuse, support up to 3A/6A/10A/20A/25A/30A stabilized current output options. ● High efficiency conversion rate up to 89.1%, MTBF over 200,000 hours, suitable for long-term operation system. ● Reasonable price and multiple solutions are suitable for powering a wide range of devices such as routers, motor drives, security monitoring and so on.
    $52.53

    DC-DC Boost-Buck Converter, 8V-40V to 13.8V

    ● DC-DC buck and boost converter with a wide input voltage range of 8-40V is an efficient and stable bi-directional voltage regulator module. ● The output of high current buck boost converter is stabilized at 13.8V, and the output current supports 3A/5A/10A/20A. ● Conversion efficiency of more than 90%, even at low voltage can provide stable power. ● Power supply noise as low as 250mVp-p and cost-effective design with built-in 20A fuse and short-circuit protection are available from stock.
    $57.35
    Overview

    High power buck boost converter for sale, the input voltage range is wide, support 9V to 36V, can automatically lift the voltage to stabilize the output 24V, the output current up to 6A, built-in 30A fuse to protect the input safety. Its lightweight design and 220kHz high-frequency switching design, suitable for industrial, electric vehicles, outdoor and other application scenarios.

    DC DC boost buck converter 9v-36v features

    Feature

    • 9-36V to 24V, output current 6A, output power up to 144 watts.
    • The use of imported devices, synchronous voltage regulator technology, so that the power supply heat is very low, the power is sufficient, the output is stable, the conversion efficiency is as high as 97.8%.
    • Organic silicone potting makes 24v buck boost converter with IP68 protection level, waterproof, dustproof and shockproof, suitable for all kinds of harsh environments.
    • The capacitors/resistors/MOS tubes of DC-DC converter are all SMD originals with high integration, high reliability and high stability.


    Details

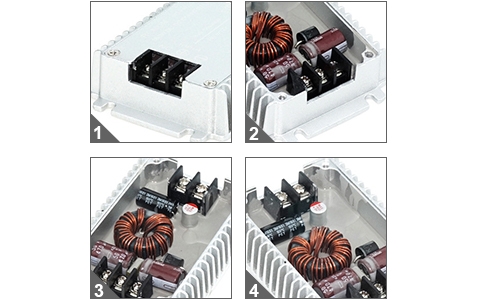

    1. Die-casting aluminum alloy shell, with good heat dissipation function and heat conduction effect, strengthen its own hardness.
    2. High quality terminals provide fast and efficient connection and circuit distribution for buck and boost converter.
    3. Pure copper inductor with magnetic core effectively filters oscillations and traps.
    4. FR-4 multilayer circuit board resistors, capacitors and switching MOS tubes are SMT components, so that the power supply has a high degree of integration and high reliability and stability.
    DC DC boost buck converter 9v-36v details

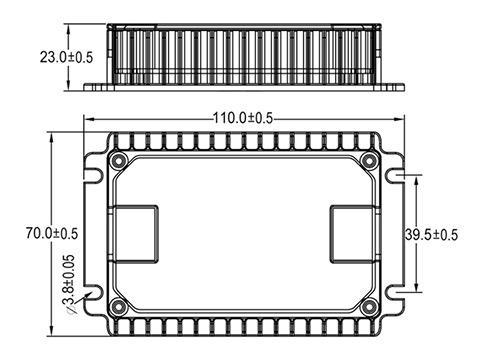

    Dimension (unit: mm)

    8V-40V to 12V 3A

    DC DC boost buck converter 9v-36v dimension

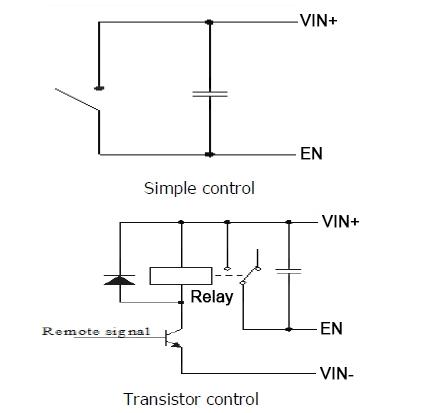

    Various Circuits for Driving EN

    Various circuits for driving the EN

    Input Undervoltage Protection: The converter will shut down after the input voltagedrops below the under-voltage protection threshold for shutdown. The converter will start to work again afterthe input voltage reaches the input under voltageprotection threshold for startup.

    Output Overcurrent Protection: The converter equipped with current limiting circuitrycan provide protection from an output overload or shortcircuit condition. If the output current exceeds theoutput overcurrent protection set point, the converterenters hiccup mode. When the fault condition isremoved, the converter will automatically restart.

    Wiring Diagram

    DC DC boost buck converter 5v-36v wiring

    Specs
    Input
    Input Voltage 9-36V
    Max. Input Voltage 36V
    Undervoltage Shutdown 7.4-7.8V (Automatic Recovery)
    Undervoltage Recovery 7.5-7.9V (Automatic Recovery)
    Max. Input Current 23A (Vin=7.6V; Iout =6A)
    No Load Current 100mA (Typ. 89mA; Vin=24V)
    Positive Electrode Cable 14 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
    Negative Electrode Cable
    Enable Pin Cable 22 AWG (If the product has this feature)
    Fuse 30A (Input positive has built-in fuse)
    Output
    Efficiency 97.8% (Vin=12V; Iout=6A)
    Output Voltage 24-24.5V (Vin=12V; Iout=6A)
    Regulator Accuracy ±1%
    Voltage Regulation
    Load Regulation
    Overvoltage Protection 40V@25°C,TVS clamp protection
    Output Current 0-6A
    Overcurrent Protection 7.0-8.5A (Vin=12V)
    External Capacitance 0-10000μF
    Output Ripple and Noise 150mVp-p (Vin=9-36V; Iout=6A, Oscilloscope Bandwidth: 20 MHz)
    Output Voltage Rise Time 150mS
    Boot Delay Time 250mS
    Out Voltage Overshoot 2% (Vin=12V, 50%-75% Load Step)
    Over Temperature Protection Shell temperature, @ 80°C Restore working
    Short Circuit Protection Long-term (4 hours) short circuit is notdamaged, Hiccup mode
    Positive Electrode Cable 16 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
    Negative Electrode Cable
    Safety and EMC Features
    Anti-electric Strength Input to output: /
    Input to shell: ≥500V (Leakage Current ≤ 3.5mA, 1min,No Breakdown, No Arcing)
    Output to shell: ≥500V (Leakage Current ≤ 3.5mA, 1min,No Breakdown, No Arcing)
    Insulation Resistance Input to output: ≥50MΩ (Test Voltage =500V)
    Input to shell: ≥50MΩ (Test Voltage =500V)
    Output to shell:≥50MΩ (Test Voltage =500V)
    Absolute Maximum Ratings
    Operating Ambient Temperature -40-50℃
    Shell Ambient Temperature -40-80℃
    Storage Temperature -55-100℃
    Operating Humidity 5-95% (Non-condensing)
    Atmospheric Pressure 62-106Kpa
    Altitude 4000m
    Cooling Way Natural cooling
    Other
    Weight ≤260g
    Package White Box
    MTBF ≥200000H
    Switching Frequency 220±10kHz

    PDF computing9V-36V to 24V, 6A DC-DC Boost-Buck Converter User Manual

    Application
    Industrial equipment

    Industrial Equipment

    Automotive equipment

    Automotive Equipment

    Vehicle LED advertising

    Vehicle LED Advertising

    Communication equipment

    Communication Equipment
