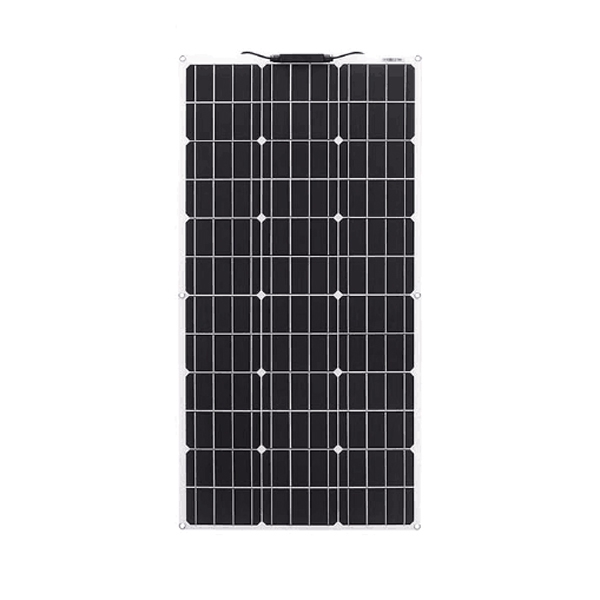

100 Watt Flexible PV Panel, 18V

SKU: PH-FPP-100
$139.54
● Flexible PV panel peak power of 100W, a maximum system voltage of 1000VDC, an operating voltage of 18V, and an operating current of 5.55A. ● Transparent PET lamination technology, offers durability and excellent light transmission. ● Easy installation on curved or uneven surfaces such as RVs, boats, tents, and other mobile applications. ● Esidential use for outdoor camping and leisure activities, and charging 12V batteries.
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

The 100 Watt Flexible PV Panel features high-efficiency monocrystalline silicon cells, 18V operating voltage, and 22% conversion efficiency. It measures 1200mm x 550mm x 3mm and weighs 2kg, making it compact and lightweight. Use on curved or uneven surfaces like RVs, boats, and tents, as well as for outdoor camping, leisure activities, and emergency power needs. Operates in -40℃ to +85℃. IP65 rated junction box and 900mm PV cable with MC4 connectors ensure durability and easy integration.

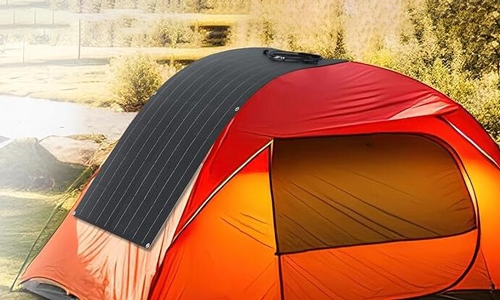

100w flexible pv panel feature

Feature

  • High Light Transmission: 97% transparency ensures maximum sunlight absorption and efficiency.
  • Smart Protection Circuit: Integrated smart protection circuit for enhanced safety and reliability.
  • Lightweight and Semi-Flexible: Thin, semi-flexible design allows for easy bending and installation on various surfaces.
  • Long Lifespan: Built for longevity, ensuring consistent performance over time.
  • Strong Corrosion Resistance: Highly resistant to corrosion, suitable for harsh environmental conditions.

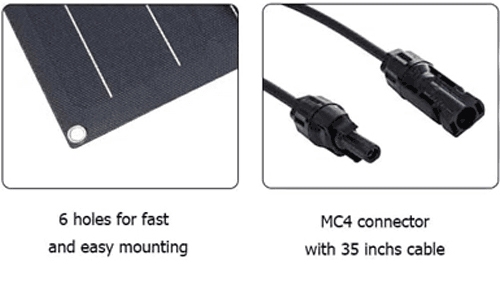

Details

  1. High Conversion Rate: 22% efficiency, 60% higher than traditional monocrystalline panels.
  2. Frosted Fabric: Frosted PET material, high light transmission, dustproof, and scratch-resistant.
  3. Junction Box: Standard photovoltaic wiring with MC4 connectors, IP65 protection, excellent heat dissipation, low energy loss, and long lifespan.
  4. IV Curve Cells: A-grade battery cells, high conversion rates, good low-light performance, and stable output.
35w flexible solar panel detail

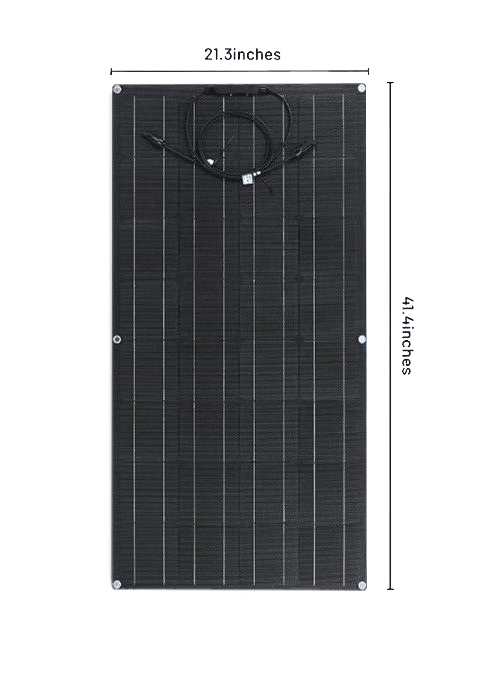

50W Flexible PV Panel Size

100W flexible solar panel size



Wiring Diagram

35W flexible solar panel wiring diagram

Specs
Peak Power 100W
Maximum System Voltage 1000VDC
Operating Voltage 18V
Operating Current 5.55A
Open-Circuit Voltage 21.6V
Short-Circuit Current 6.06A
Weight 2kG
Dimensions 1200*550*2.5 mm
Production Process Transparent PET Lamination Technology
Operating Temperature Range -40℃ to +85℃
Standard Testing Conditions Irradiance 1000W/m²; Temperature 25℃; AM1.5
Junction Box IP65 Waterproof Rating
Output Cable 900mm PV Cable
Open-Circuit Voltage Temperature Coefficient -0.35%/℃
Application
Flexible PV panel for hiking

Flexible PV Panel for Hiking

Flexible PV panel for camping

Flexible PV Panel for Camping

Flexible PV panel for emergency use

Flexible PV Panel for Emergency Use

Power supply for charging electronic devices

Power Supply for Charging Electronic Devices

FAQ

Q1. How easy is it to install the 100 Watt Flexible PV Panel?

  • Lightweight and Semi-Flexible: Thin, semi-flexible design allows for easy installation on various surfaces, including curved and uneven ones.
  • Output Cable: Comes with a 900mm PV cable with MC4 connectors for easy integration with other devices.

Q2. Can the 100 Watt Flexible PV Panel be used in off-grid systems?

Yes, this panel is perfect for off-grid systems, providing reliable power for remote locations, outdoor activities, and emergency power needs.

5.0 1
Write your own review Close
*
*
Jeff | 5/22/2024 9:30 AM
Works very well, lightweight
Great, lightweight and soft, this 100W flexible solar panel is smaller in size than other kinds of solar panels and very portable. The conversion efficiency is also good. Even on cloudy days, it can reach 12V voltage or more.
