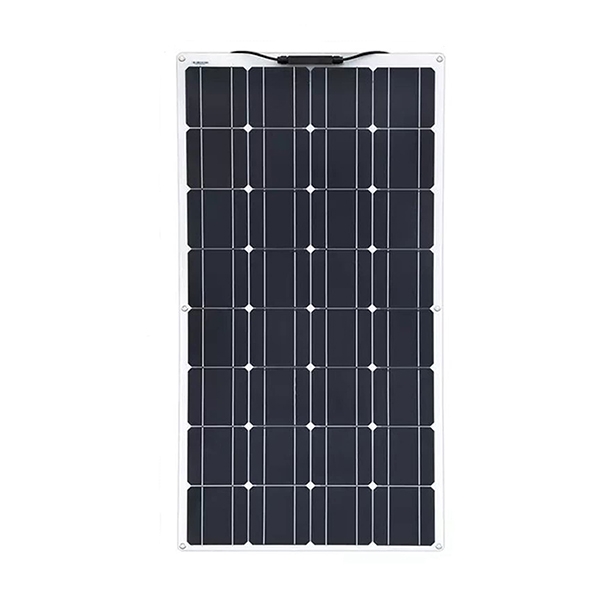

240 Watt Flexible PV Panel, 18V

SKU: PH-FPP-240
$490.95
● 240W flexible solar PV panel with four monocrystalline silicon panels, Operating at 18V, boasting a high 22% photovoltaic conversion rate. ● Features multiple output ports, compatible with a variety of energy storage devices. ● Waterproof, corrosion resistant and high temperature resistant, fold and drop resistant. ● Suitable for use in outdoor or mobile environments due to its flexible and durable construction.
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

With a rated power output of 240 watts and an operating voltage of 19.44V, this PV panel stands out with its high photoelectric efficiency of 22%, utilizing premium monocrystalline silicon solar cells. The flexible solar panel generates a 12.5A operating current and can handle an open circuit voltage up to 23.6V and a short circuit current of 13.3A. Equipped with a PV MC4 link port, it ensures across a wide range of applications and can operate effectively in temperatures ranging from -20℃ to +50℃. It's suited for applications such as powering RVs, remote cabins, or providing a backup energy source during emergencies.

200W flexible pv panel feature

Feature

  • High-Efficiency Monocrystalline Silicon: Equipped with a 22% conversion rate for maximum energy efficiency.
  • Weather-Resistant Power Generation: Capable of generating power in rainy conditions, making solar photovoltaic panel ideal for emergencies and travel.
  • Broad Device Compatibility: Supports a range of devices including mobile phones, computers, and portable power stations.
  • Durable and Resilient: Built to resist folding, falls, and treading, this PV panel is also waterproof, corrosion-resistant, and can withstand high temperatures.

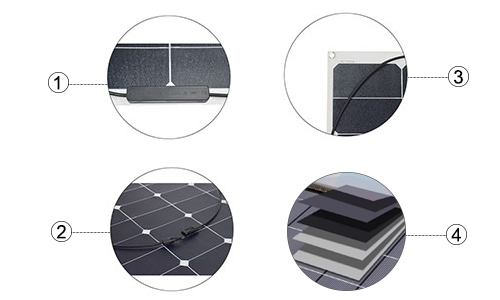

Details

  1. Snap Button Design: Features a snap-on mechanism for quick and easy installation and removal.
  2. Portable Lanyard: Includes a lanyard for convenient carrying and hanging during outdoor use.
  3. Multiple Output Interfaces: Offers various output ports to charge different electronic devices.
  4. Lightweight Foldable Design: The panel is thin and light, allowing easy one-hand handling and storage.
  5. Adjustable Stand: Comes with an integrated stand that can be adjusted to optimize solar energy capture based on the sun's position.
  6. High-Efficiency Monocrystalline Silicon: Uniform crystal structure with high conversion efficiency.
200W flexible pv panel detail

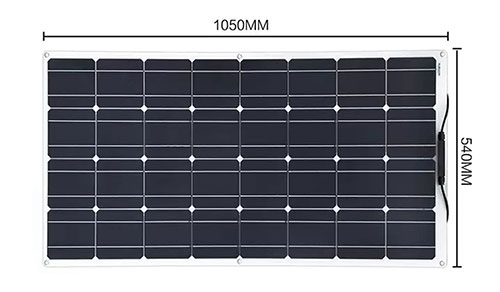

240W Flexible PV Panel Size

240W flexible PV panel size

Specs
Rated Power 240W
Operating Voltage 18V
Power Tolerance +-5%
Operating Current 12.5A
Photoelectric Efficiency 22%
Battery Type Monocrystalline silicon solar cells
Number of Panels 4 pieces
Open Circuit Voltage 23.6V
Short Circuit Current 13.3A
Folded Size 710*600*52mm
Unfolded Size 2700*600*26mm
Output Port PV MC4 link port
Operating Temperature -20℃~+50℃
Application
Portable solar panels for camping

Portable Solar Panels for Camping

PV panel for emergency

Flexible PV Panel for Emergency

Solar panel for excursions

Solar PV Panel for Excursions

Solar pv panel for phones tablet and computer

Solar PV Panel for Phone, Tablet and Computer

FAQ

Q1. Do flexible solar panels overheat?

Flexible solar panels can overheat, particularly when exposed to direct sunlight without adequate ventilation, as they are often installed flush against surfaces which restricts airflow. Overheating can reduce the efficiency of the panels and accelerate material degradation. To mitigate this, it's advisable to ensure some air circulation around the panels, install them in areas that receive partial shade throughout the day, and use lighter colored mounting surfaces to help reflect heat. Regular monitoring of their temperature and efficiency is also crucial to maintain performance and extend their lifespan.

Q2. What type of batteries can be charged with the 240W panel?

This panel can efficiently charge 12V or 24V battery systems, depending on your setup. It is compatible with various battery types, including lead-acid, AGM, lithium-ion, and others, provided the charge controller settings are correctly adjusted.
