30A PWM Solar Charge Controller, 12V/24V/48V

● Widely used in 12V/24V/48V systems, perfect for residential off-grid living, providing reliable 30A PWM solar charge controller solution. ● Powerful system compatibility, the maximum photovoltaic voltage of 25V, 50V, 100V, to meet your multiple charging needs. ● Multiple protection mechanisms to ensure safe charging and discharging of Li-ion ternary batteries/Li-FePO4 batteries/lead-acid batteries, rated at 30A charging and discharging current. ● Easy installation, stable and reliable performance, convenient USB output port, maximum 5V 2A output, meet the requirements of home solar system.
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns

For residential and off-grid living needs, we have launched a new 30A PWM solar charge controller that supports 12V, 24V and 48V systems, with automatic voltage recognition, and can be adapted to Li-ion ternary batteries, Li-FePO4 batteries and lead-acid batteries (optional). The controller's rated charge/discharge current is 30A, and the maximum PV voltage range is wide, applicable to 12V system less than 25V, 24V system less than 50V, 48V system less than 100V environment. In addition, it is equipped with a USB output port, supporting up to 5V 2A output, which is convenient for you to charge other devices at the same time. Welcome to buy and experience the convenience of off-grid life and green energy life.

30a pwm solar charge controller feature


  • 12/24/48V automatic identification, suitable for lead-acid, lithium ternary, lithium iron phosphate batteries, you can use APP real-time data monitoring.
  • Full current PWM solar controller, real current never false label.
  • Three-stage charging management, energy efficient allows users to save time and worry.
  • Simple black and white design on both sides, cooling vents, fast heat dissipation and solar controller fine workmanship, strong sense of three-dimensional.


  1. Large LCD Display: Clearly shows controller data and working status
  2. Dual USB Ports: Convenient for connecting devices for charging or data transmission
  3. Heat Sink Back Plate: Effective heat dissipation to enhance the controller's ability to work stably for a long time
  4. Heat Sink Holes: Accelerate heat dissipation and protect the controller circuitry from overheating
30a pwm solar charge controller detail

30A PWM Solar Charge Controller Size (unit: mm)

30A pwm solar controller size

30A PWM Solar Charge Controller Install Diagram

20A pwm solar charge controller install diagram

Installation Note

  1. Connect the positive and negative terminals of the battery to the controller as shown in the diagram, the controller will automatically detect the battery voltage.
  2. Connect the positive and negative terminals of the load to the PWM solar controller as shown in the diagram, and be careful not to connect the reverse.
  3. Connect and release the solar panel to the controller according to the diagram.
Automatic Voltage Recognition 12V/24V/48V/Systems
Battery Type Li-ion ternary battery / lithium iron phosphate battery / lead-acid battery (optional)
Setting the Battery Type Li-ion ternary battery (If you need other battery parameters please check the PDF file)
Rated Charge Current 30A
Rated Discharge Current 30A
Maximum PV Voltage 12V system<25V/24V system<50V/48V system<100V
USB Output 5V 2A MAX
Standby Current 12V<80ma; 24V<45ma; 48V<30ma
System Voltage 12V System 3 Strings Default 12.6V (Irreconcilable)
Default 9V (Adjustable 9~10.5V)
Default 10.5V (Adjustable 10.5~11.7V)
System Voltage 24V System 7 Strings Default 29.4V (Irreconcilable)
Default 21V (Adjustable 21~24.5V)
Default 24.5V (Adjustable 24.5~27.3V)
System Voltage 48V System 13 Strings Default 54.6V (Irreconcilable)
Default 39V (Adjustable 39~45.4V)
Default 45.4V (Adjustable 45.4~50.7V)
Ambient Temperature -20℃~+50℃
Dimension 135*170*70mm
Net weight 0.65kg

PDF computing30A PWM Solar Charge Controller User Manual

PWM Solar Charge Controller Description

pwm solar controller led and key description

Indicator lamps

Solar Access LED Indicator light is on when solar energy is detected and no solar energy is detected.
Battery LED The indicator light is on after connecting the battery, the indicator light will flash with 0.5 seconds switching frequency when the load is protected by long time voltage, and the indicator light will light up normally after the voltage rises to the restored value.
Load and WIFI LEDs Indicator light is on when the load is turned on, off when the load is turned off, after turning on the WIFI, the indicator light will blink 5 times at a frequency of 0.5 seconds, then return to the load indication state for 10 seconds, and then return to the WIFI indication state again.

Button or Key (on a device)

Menu Key Tap the button to cycle through the menus
Page Up After entering the menu setting, turn up to set the function parameters.
Page Down Flip down to set the function parameters after entering the menu settings.
Function Confirm and Load On/Off Keys Confirm to enter and exit the menu setting items, load switch
Off grid solar charge controller

Off Grid Solar Charge Controller

PWM solar controller for solar systems

Solar Controller for Solar Systems

PWM solar charge controller for outdoor caravan

Outdoor Caravan

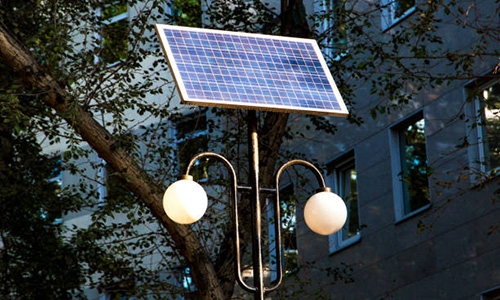

PWM solar controller for solar street light

Solar Street Light


Q1. What are the installation steps for the 30A PWM solar charge controller?

  1. Connect the solar panel to the solar panel port of the solar controller.
  2. Connect the battery to the pwm charge controller's battery port.
  3. Connect the load to the charg controller's load port (if applicable).
  4. Set the solar panel controller's charging parameters according to the instructions.

Q2. What are the common faults and solutions for 30A PWM solar charge controller?

  • Fault: Battery is overcharged or overdischarged.
  • Solution: Adjust the pwm charge parameters of the solar energy controller to make sure the battery operates within the safe range.
  • Fault: The solar controller display is abnormal or cannot work.
  • Solution: Check whether the cable connection is good and make sure the solar controller is normally powered.
