80 Amp MPPT Solar Charge Controller, 96V

SKU: PH-MPPT-80
$412.93
● Solar power charge controller with MPPT technology, rated charging current 80amp, applicable to 96VDC system, high flexibility. ● The tracking efficiency reaches ≥99.5%, and the maximum conversion efficiency reaches 97.5%, which ensures that the PV module is tracked at the maximum power point and converted into electricity to the maximum extent. ● The temperature compensation system can intelligently adjust the voltage to guarantee the stability of the system in different temperature environments and improve the charging efficiency. ● Equipped with multiple protection functions, including PV input anti-reverse connection protection, battery input reverse connection protection and over-temperature protection, etc., to ensure the safe operation of the system.
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

High efficiency and intelligent features of this 80 amp MPPT solar system charge controller for rated system voltage of 96 VDC. with flexible controller operating voltage range (72128V) and maximum open circuit voltage of PV module (250V at minimum temperature, 225V at 25°C). Tracking efficiency ≥99.5%, with a maximum conversion efficiency of 97.5%. Supports lead-acid and lithium battery types, equipped with a number of protection functions, air-cooled heat dissipation, RS485 communication mode, LCD backlight time adjustable. Wide range of operating ambient temperature (-20℃50℃), suitable for various climatic conditions.

80 amp mppt solar charge controller feature

Feature

  • Rated charging power & charging current double automatic limiting function.
  • Support maintenance-free, gel, liquid, carp electric and other battery types.
  • With programmable battery temperature compensation function.
  • Real-time power statistics and record function.
  • With high temperature charging automatic power reduction function.
  • With PV panel input reverse connection and battery reverse connection protection function.

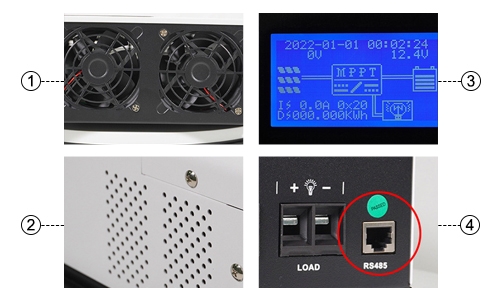

Details

  1. Dual channel cooling fan
  2. Cooling vents: Cooling, ventilation, beautiful
  3. LED display: Simple operation,switch between Chinese and English
  4. RS485: Provide communication protocolenable WIFl remote monitoringand external screen control
80 amp mppt solar charge controller detail

Structure of MPPT Solar Charge Controller

MPPT charger controller structures

1 2 3 4 5
Cabinet Mounting hole Return button Page up button Page down button
6 7 8 9 10
Function button Terminal cover Alarm LED indicator Charging LED indicator Load LED indicator
11 12 13 14 15
Cooling vent Fan vent PV terminals Battery terminals Load terminals
16 17 / / /
Temperature sensor RS485 port / / /
Specs
Rated Charging Current 80A
Rated System Voltage 96VDC
Rated Charging Power 8320W/96V
Controller Working Voltage Range 72~128V
Lead-acid Battery Type Maintenance-free (default); Colloidal; Liquid
Lithium Battery Type Lithium Iron Phosphate; Lithium Ternary
Maximum Open Circuit Voltage of Photovoltaic Module 250V (at lowest temperature); 225V (at 25°C)
Maximum Power Point Operating Voltage Range 128~250VDC
Tracking Efficiency ≥99.5%
Maximum Conversion Efficiency 97.50%
Temperature Compensation System -3mV/°C/2V
Static Loss 83mA/96V
Protection Function PV input anti-reverse connection protection, battery input reverse connection protection, battery overcharge protection, battery undervoltage protection, battery over-temperature protection, machine over-temperature protection
Heat Dissipation Air-cooled
Communication Mode RS485
Liquid Crystal Backlight Time Default 60s, backlight mode can be set
Operating Ambient Temperature Range -20℃~50℃
Storage Temperature Range -40℃~70℃
Relative Humidity Range 0~90%RH
External Dimension 275*348*109mm
Recommended Wiring 4AWG/25mm2
Net Weight 4.6kg

PDF computing80 Amp Mppt Solar Charge Controller User Manual

Application
mppt charge controller for phone

Home

mppt charge controller for PV system

PV System

mppt charge controller for home

RV Solar Controller

mppt charge controller for yacht

Yacht

FAQ

Q1: How does an 80 amp MPPT solar charge controller benefit my system?

An 80 amp MPPT solar system charge controller optimizes power conversion, efficiently charging batteries by tracking the maximum power point of the solar array. This ensures maximum energy harvest, extends battery life, and enhances overall system performance.

Q2: Can I use an 80 amp MPPT solar charge controller with any solar panel?

Yes, charge regulator for solar panels are available in the market, It can efficiently handle various panel configurations and voltages, making it versatile for different system setups while maximizing energy conversion regardless of panel type.

Q3: How do I install and configure an 80 amp MPPT solar charge controller?

Installing an 80 amp solar charge controller involves connecting it between the solar panels and the battery bank. Ensure proper wiring, grounding, and protection from environmental factors. Configuration typically involves setting parameters such as battery type, charging voltages, and load control settings using the controller's interface or software. Detailed instructions are provided in the user manual for easy setup.
