800 Watt Power Inverter for Home, 12V/24V to 110V/220V

SKU: PH-PI-800
● 800 watt continuous power inverter for sale. 12V or 24V input voltage selectable, 110V or 220V output voltage selectable. ● Pure sine wave, six protection, suitable for sensitive appliances, home appliances use. ● Equipped with multiple AC outlets and USB ports, power various devices simultaneously. ● Ideal for powering various household appliances and electronic devices at home and in vehicles.
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns

Converting 12V/24V DC power from your vehicle or home battery into 110V/220V AC power, this power inverter provides up to 800 watts of continuous power and 1600 watts of peak power. Equipped with multiple AC outlets and USB ports, allowing you to power and charge various devices simultaneously. With an AC output voltage of 110V/220V ±5% and a frequency of 50/60Hz ±3Hz. It produces a modified sine wave output, suitable for most household electronics. Advanced protection features, including overload, short-circuit, over-voltage, and under-voltage protection.

800W power inverter for home feature


  • Pure Sine Wave Output: Provides clean, stable power.
  • High Efficiency: Providing up to 800 watts of continuous power with a peak power of 1600 watts.
  • Multiple Outlets: Equipped with multiple AC outlets and USB ports to power various devices simultaneously.
  • Compact and Lightweight Design: Easy to install and portable, making it convenient for use at home or on the go.


  1. High-Quality Components: The inverter uses high-quality materials and detailed molds
  2. Surface Mount Technology: Reduces product volume by 40%-60%, weight by 60%-80%
  3. Comprehensive Protection: Includes overload, over-temperature, high-temperature, short circuit, battery reverse connection, battery overvoltage, and undervoltage protection, plus a built-in fuse.
  4. High Performance: Utilizes high-quality double-sided PCB and zero equipment.
  5. Aluminium Alloy Shell: Features a scientific and rigorous design with an aluminum alloy body, surface sandblasting.
  6. Transformer Coil: Equipped with a new high-frequency density winding transformer.
  7. NCC Capacitance: Larger capacity ensures safer usage.
  8. Buzzer Alarm Device: Alerts users with an alarm when high frequency, low pressure, over-temperature, or overload protection is activated.
800W power inverter for home detail

800W Power Inverter for Home Dimension (Unit:mm)

800W power inverter for home size

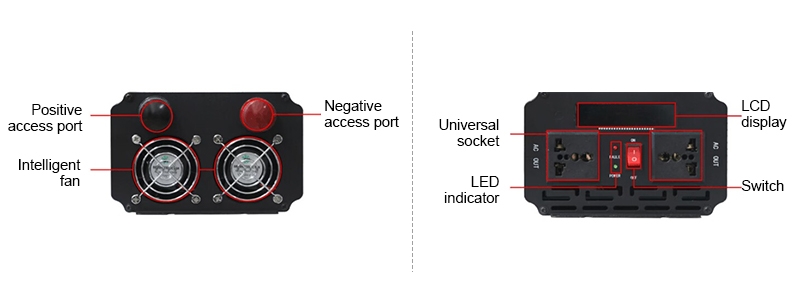

Interface Display

800W power inverter interface display

Connection Demonstration

800W power inverter connection

800W power inverter car usage connection

Max continuous power 800W
Peak Power 1600W
No load current draw <0.6A
Input DC voltage Range DC12V/24V ±2V
Output Voltage Range AC110V/220V ±5%
Output Frequency Range 50/60Hz ±3Hz
USB output DC 5V (0.5A, 1A, 2.1A)
Output waveform Modified sine wave
Max Outer Temperature < 75°C
Max Power Efficiency > 86%
High Voltage Cut Off Level 15V/27V ±1V
Low Voltage Alarm Level 10.5V/22.5V ±0.3V
Low Voltage Cut Off Level 10V/22V ±0.3V
Overload and Short-circuit Protection Yes
Input Voltage DC 12V/24V
THD ≤5%
Built-in Cooling Fan Yes

PDF computing800W Power Inverter User Manual

Power inverter for home

Power Inverter for Home

Power inverter for computer

Power Inverter for Computer

Domestic electric appliances

Domestic Electric Appliances

Power inverter for vehicle

Power Inverter for Vehicle


Q1. What is the difference between 12V and 24V input?

The difference lies in the voltage of the DC power source. A 12V input is typically used with car batteries or smaller solar setups, while a 24V input is often used with larger battery banks or solar installations for better efficiency and reduced current draw.

Q2. Can the inverter be used continuously?

The inverter can be used continuously as long as it is within its rated capacity and properly ventilated to prevent overheating. Continuous use at maximum load may reduce the inverter’s lifespan.
