    Picture of DC-DC Boost and Buck Converter, 18V-40V to 24V
    Picture of DC-DC Boost and Buck Converter, 18V-40V to 24V
    Picture of DC-DC Boost and Buck Converter, 18V-40V to 24V
    Picture of DC-DC Boost and Buck Converter, 18V-40V to 24V

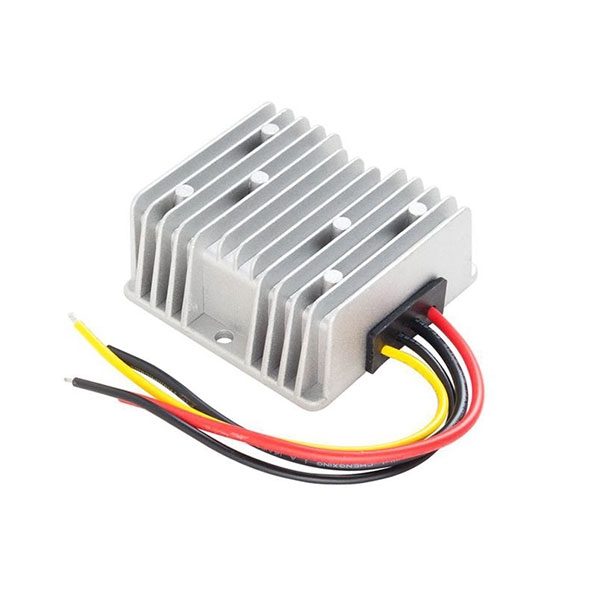

    DC-DC Boost and Buck Converter, 18V-40V to 24V

    0 review(s) | Add your review
    SKU: PH-DCBBC-18-40S24
    $78.46
    ● Boost buck converter with wide input range up to 18V-40V, constant 24V output, supports multi-voltage input environment. ● Voltage accuracy ±1%, output current support 20A/25A/30A multi-specification, welcome to inquire. ● Efficiency up to 97%, energy efficient, stable output, spot for sale. ● Built-in 40A fuse, with multiple safety mechanisms to protect the equipment for long-term operation.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    DC-DC Boost-Buck Converter, 8V-36V to 12V

    ● High-power DC converter with input voltage range of 8V-36V, supports boost and buck automatic conversion, and can stabilize 12V output. ● Conversion efficiency up to 96.8%, support up to 10A output current, built-in 20A fuse. ● With natural air-cooled design, the output voltage is precisely controlled at ±1% and supports up to 10000μF external capacitor load. ● The DC-DC step up step down converter is equipped with TVS anti-surge protection and automatic under-voltage recovery, and supports long-time short-circuit protection.
    $59.45

    DC-DC Boost and Buck Converter, 8V-40V to 12V

    ● DC-DC boost and buck converter supports 8V-40V wide voltage input and output stabilized at 11.9-12.3V with multiple safety mechanisms. ● Built-in 20A fuse, support up to 3A/6A/10A/20A/25A/30A stabilized current output options. ● High efficiency conversion rate up to 89.1%, MTBF over 200,000 hours, suitable for long-term operation system. ● Reasonable price and multiple solutions are suitable for powering a wide range of devices such as routers, motor drives, security monitoring and so on.
    $52.53

    DC-DC Boost-Buck Converter, 9V-40V to 28V

    ● Buck and boost converter 9V-40V wide input, automatic boost or buck output 28V, to meet a variety of power supply needs. ● The output voltage is stabilized at 28V (±1% accuracy), and the current can be up to 5A/10A/15A, with high-quality output filtering, the power can be up to 420W. ● The no-load current is only 67mA, and the high frequency 130kHz ±10kHz switching design effectively reduces energy consumption and minimizes interference. ● DC-DC step up down converter can work under -40°C to 50°C, built-in EMC protection and insulation structure, insulation resistance ≥ 50MΩ, strong anti-interference.
    $67.56

    DC-DC Boost-Buck Converter, 5V-36V to 12V

    ● Input supports 5-36V, output constant 12V voltage, DC-DC boost-buck converter with multiple protections. ● High-quality 18 AWG cables with up to 3A output current provide a cost-effective solution for industrial needs for 12V stabilized power. ● The 12v buck boost converter features ±1% voltage regulation, 2% load regulation, no-load loss of only 28mA, and 64mV ripple noise. ● Free-air convection heat sink design with a temperature range of -40°C~80°C for reliable operation in harsh environments.
    $47.25

    DC-DC Boost-Buck Converter, 8V-40V to 13.8V

    ● DC-DC buck and boost converter with a wide input voltage range of 8-40V is an efficient and stable bi-directional voltage regulator module. ● The output of high current buck boost converter is stabilized at 13.8V, and the output current supports 3A/5A/10A/20A. ● Conversion efficiency of more than 90%, even at low voltage can provide stable power. ● Power supply noise as low as 250mVp-p and cost-effective design with built-in 20A fuse and short-circuit protection are available from stock.
    $57.35

    DC-DC Boost-Buck Converter, 9V-36V to 24V

    ● High performance DC-DC boost-buck converter, good price for sale, input voltage range 9-36V. ● Support undervoltage auto recovery, high reliability, high efficiency up to 97.8%, max output current 6A. ● 24V buck boost converter only about 100mA current consumption when no load, with good temperature rise control and EMC. ● The power module is naturally cooled and supports operating temperatures from -40°C to 50°C , making it ideal for use in harsh climates.
    $61.65
    Overview

    PowerHome provides cost-effective DC-DC boost/buck converter, support 18-40V input to 24V output, built-in multiple protection mechanisms, regardless of the input voltage rise or fall, can maintain a stable output of 24V, the maximum current support 30A, the conversion efficiency is up to 97.6%. No external capacitors, suitable for automotive, solar, industrial automation and other application scenarios, low-cost and high-quality power supply program recommended.

    DC DC boost buck converter 18v-40v 24v features

    Feature

    • 100% full power output, 18-40V voltage output, ensure high stability 24V power supply, suitable for a variety of industrial and vehicle scenes.
    • Selected aluminum alloy shell, lightweight and sturdy, easy to install, fast heat dissipation, suitable for a variety of equipment.
    • 24v buck boost converter supports long time continuous operation, service life of more than 100,000 hours, is the ideal choice for long-term stable power supply.
    • Each converter in the factory are 100% aging load test, to ensure high reliability and consistency.

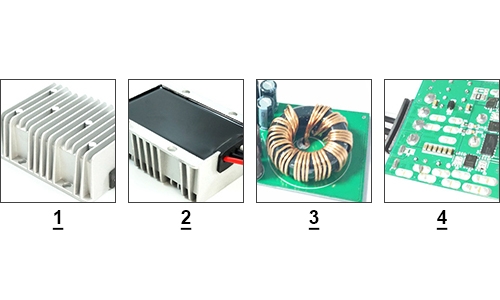

    Details

    1. Powerful Die-casting Aluminum Heat Dissipation: 24v buck boost converter Highly efficient thermal conductivity and heat dissipation, suitable for high temperature industrial environments.
    2. Sealed Protection Shell: Fully enclosed structure, IP68 level dust and moisture resistance, enhance the stability and service life of the equipment.
    3. Pure Copper Wire Inductor: High current carrying capacity, more stable output.
    4. Highly Integrated Control Circuit: Precise layout of the circuit board, supporting over-current, over-voltage, short circuit protection.
    DC DC boost buck converter 18v-40v 24v details

    Dimension (unit: mm)

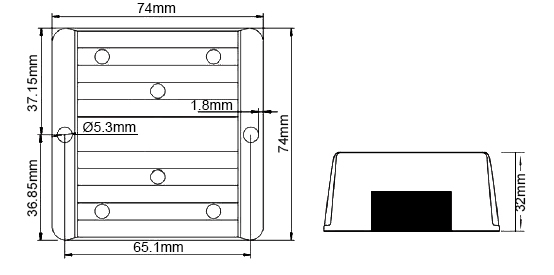

    18V-40V to 24V 20A/25A

    DC DC boost buck converter 18v-40v 24v 20A dimension

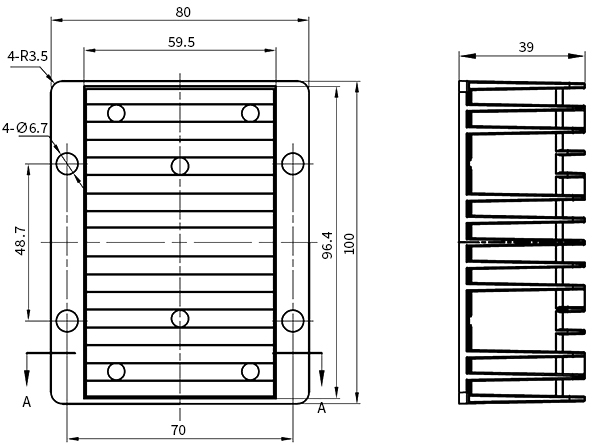

    18V-40V to 24V 30A

    DC DC boost buck converter 18v-40v 24v 30A dimension

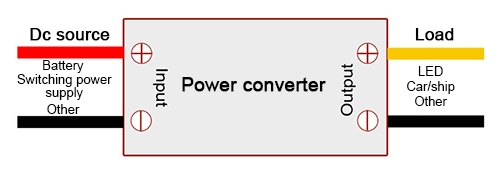

    Wiring Diagram

    DC DC boost buck converter 5v-36v wiring

    Specs
    Input
    Input Voltage 18-40V
    Max. Input Voltage 45V (Continuous)
    Undervoltage Shutdown 16.5-17V (Automatic Recovery)
    Undervoltage Recovery 17.5-18.5V (Automatic Recovery)
    Max. Input Current 27.6A (Vin=18V; Iout =20A)
    No Load Current 130mA (Typ. 110mA; Vin=24V)
    Positive Electrode Cable 12 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
    Negative Electrode Cable
    Enable Pin Cable --AWG
    Fuse 40A (Input positive has built-in fuse)
    Output
    Efficiency 97.4% (Vin=24V; Iout=20A)
    Output Voltage 23.7-24.4V (Vin=24V; Iout=20A)
    Regulator Accuracy ±5%
    Voltage Regulation ±3%
    Load Regulation ±3%
    Overvoltage Protection 45.5V-47.0V
    Output Current 0-20A
    Overcurrent Protection 21-24A (Vin=24V)
    External Capacitance Don't need
    Output Ripple and Noise 260mVp-p (Vin=18-40V; Iout=20A, Oscilloscope Bandwidth: 20 MHz)
    Output Voltage Rise Time 100mS
    Boot Delay Time 150mS
    Out Voltage Overshoot 5% (Vin=24V, 50%-75% Load Step)
    Over Temperature Protection 85℃ shell
    Short Circuit Protection Long-term (4 hours) short circuit is notdamaged, Hiccup mode
    Positive Electrode Cable 14 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
    Negative Electrode Cable
    Safety and EMC Features
    Anti-electric Strength Input to output: /
    Input to shell: ≥500V (Leakage Current ≤ 3.5mA, 1min,No Breakdown, No Arcing)
    Output to shell: ≥500V (Leakage Current ≤ 3.5mA, 1min,No Breakdown, No Arcing)
    Insulation Resistance Input to output: ≥50MΩ (Test Voltage =500V)
    Input to shell: ≥50MΩ (Test Voltage =500V)
    Output to shell:≥50MΩ (Test Voltage =500V)
    Absolute Maximum Ratings
    Operating Ambient Temperature -40-50℃
    Shell Ambient Temperature -40-80℃
    Storage Temperature -55-100℃
    Operating Humidity 5-95% (Non-condensing)
    Atmospheric Pressure 62-106Kpa
    Altitude 4000m
    Cooling Way Natural cooling
    Other
    Weight ≤290g
    Package White Box
    MTBF ≥200000H
    Switching Frequency 150±10kHz

    Note: This table takes the specification of 18-40V to 24V, 20A as an example, please see the selection table below for 25A/30A specification files.


    DC-DC Boost-Buck Converter Model Selection

    Output Current/Power: 20A/480W, Efficiency: 97.4%, Size: 74*74*32mm PDF computing18V-40V to 24V, 20A DC-DC Boost-Buck Converter User Manual
    Output Current/Power: 25A/600W, Efficiency: 97%, Size: 100*89*39mm Contact Us
    Output Current/Power: 30A/720W, Efficiency: 97.6%, Size: 100*89*39mm PDF computing18V-40V to 24V, 30A DC-DC Boost-Buck Converter User Manual
    Application
    Industrial equipment

    Industrial Equipment

    Automotive equipment

    Automotive Equipment

    Vehicle LED advertising

    Vehicle LED Advertising

    Communication equipment

    Communication Equipment

    FAQ

    Q1: Is the output of the 18V-40V to 24V converter stable and reliable?

    Yes, the DC-DC boost and buck converter has a built-in closed-loop voltage regulation system to ensure that the output voltage is within 24V ±1%. Regardless of the input voltage fluctuation, the converter can respond quickly to ensure that the load equipment is not affected. Meanwhile, it is equipped with over-current, short-circuit, over-temperature and other protection functions, which is suitable for long-time continuous work.

    Q2: What is the installation and heat dissipation method of this 24v DC converter?

    The module usually adopts free convection heat dissipation without fan, which is suitable for closed or space-limited industrial equipment internal use. The product shell is mostly made of aluminum alloy with high protection level, which has certain dustproof and waterproof performance. Installation is generally screw-fixed or rail-mounted, with input and output cables for quick integration into the system.
