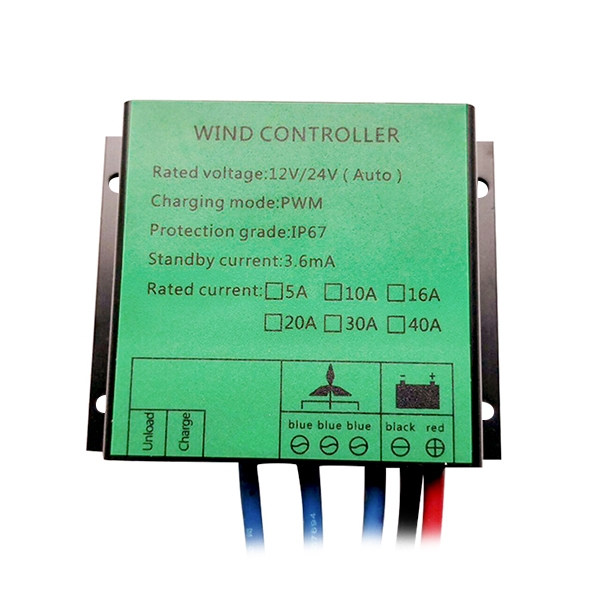

Wind Turbine Controller, 100W/200W, 12V/24V

SKU: PH-WTC-12
$51.31
● Supports AC30V input, with DC14.5V/29V cut-off voltage, suitable for 100W/200W, 12V/24V wind turbines. ● Offers efficient charging with a 15A current, featuring precise voltage control for battery protection. ● IP67 rated for complete dust and immersion protection, ensuring long-term outdoor resilience. ● Ideal for off-grid living, home, camping, and remote applications, providing reliable energy management.
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

Wind turbine charge controller is designed to optimize the charging and protection of home wind turbine systems. It accommodates AC30V input voltage, converting to an output DC voltage compatible with both 12V and 24V systems. The controller ensures a secure cut-off at DC14.5V±0.3V/29V±0.3V, preventing overcharging with a 15A current capacity. Speed regulation is maintained at the same voltage thresholds to protect against high winds. This device boasts an IP67 protection class, denoting full dust ingress protection and immersion up to 1 meter. Its negligible static power consumption of 0.003A and robust carrying capacity of 300W make it exceptionally energy-efficient and strong. Designed for force 10 wind speeds, it can withstand extreme conditions from -30℃ to +65℃. The three-wire system simplifies input wiring, while the voltage control method ensures compatibility with 12V and 24V systems. Installation is secure and straightforward with bolt fixing.

Wind turbine controller for 100w 200w feature

Feature

  • Waterproof Wind Turbine Controller: Stability and security
  • Utilizing Wind Energy Resources to Generate Electricity: Provides a great control function to convert the electricity generated by the wind turbine to charge the battery at a high rate.
  • Wind Turbine Control and Battery Charging: Increase the efficiency of wind power generation, reduce the loss of control when the wind speed is too fast, and reduce the danger to the wind turbine when strong winds occur.
  • Charging Indication: Full indication, manual brake and other functions, to meet the actual use of Everbright customers.
  • Circuit Adopts Parallel Unloading Design: It can better protect the wind turbine and battery.

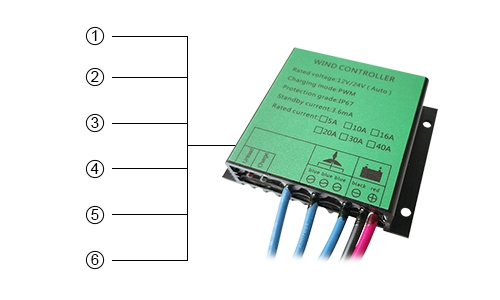

Details

  1. Compact Size: The wind turbine charge controller for home is designed to be small, ensuring it can be easily accommodated in limited spaces.
  2. Easy Installation: Its design facilitates straightforward mounting and setup, making the installation process hassle-free and efficient.
  3. Efficient Cooling: The small wind turbine controller boasts excellent thermal management, maintaining optimal performance through effective heat dissipation.
  4. Aluminum Casing: Constructed with aluminum materials, the outer casing offers robustness and durability, protecting the internal components.
  5. Advanced Components: Incorporates high-quality imported IR integrated circuits and power components, ensuring reliable and superior performance for 100W/200W, 12V/24V wind turbines.
  6. LED Display: Charging full status display, more intuitive.
Wind turbine controller for 100w 200w details

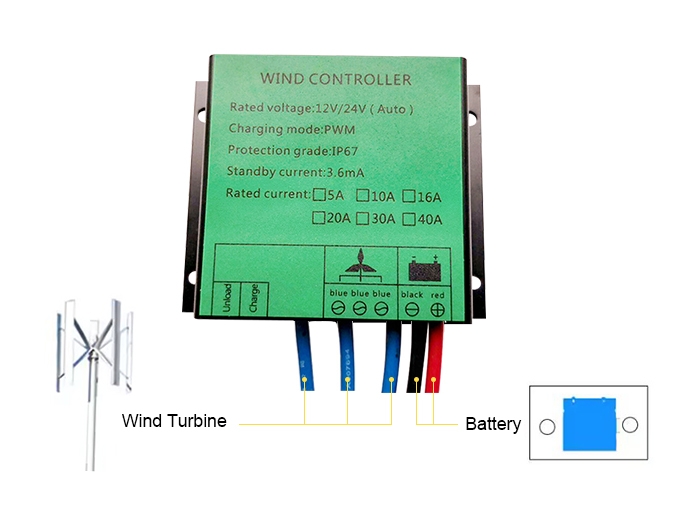

Wiring Method

Wind turbine controller for 100w 200w wire method

Specs
Input AC Voltage AC30V
Output DC voltage Output DC Voltage
Battery Charging Cut-off Voltage DC14.5V±0.3V /29V±0.3V
Charging Current 15A (12V/24V)
Wind Turbine Speed Limiting Voltage DC14.5V±0.3V, 29V±0.3V
Protection Class IP67
Static Power Consumption 0.003A
Carrying Capacity 300W
Braking Wind Speed Force 10 Winds
Operating Temperature -30℃~+65℃
Input Wiring Method Three Wire System
DC Voltage Control Method 12V/24V Compatible
Installation Bolt Fixing
Application
Home rooftop power generation

Home Rooftop Power Generation

Remote communication base station

Remote Communication Base Station

Agricultural irrigation

Agricultural Irrigation

Road lighting

Road Lighting

FAQ

Q1. Is it necessary for a 100W wind turbine to be paired with a 100W wind turbine controller?

It is not mandatory to pair a 100W wind turbine with a 100W wind turbine controller. The selection of a wind turbine controller should be based on the maximum output power and voltage specifications of the turbine. Theoretically, the controller should be capable of handling the wind turbine's maximum output power and voltage. Therefore, a controller with a higher power rating and voltage range that covers the output of the wind turbine can be used. For example, a controller designed for 100W/200W, 12V/24V wind turbines can be suitable for a 100W wind turbine, as it can handle the output of the 100W turbine and provide additional capacity to accommodate power fluctuations, ensuring system stability and efficiency.

Q2. How does this controller protect the wind turbine system?

The controller includes protective features for overcharging, undercharging, short-circuiting, and overheating, ensuring the safety and reliability of the wind turbine system.
