When it comes to power conversion, two terms often appear in both industrial and consumer electronics: DC-DC converters and transformers. While they are sometimes mentioned together, their working principles and application areas are fundamentally different. A transformer is a classic device in AC power distribution, while a DC-DC converter is an electronic circuit that regulates and converts DC voltage levels.
Basic Definition
What Is a DC-DC Converter?
A DC-DC converter is an electronic circuit designed to change one level of direct current (DC) voltage into another, making it essential in modern electronic and industrial applications. Depending on the topology, it can step down the voltage (buck), step up the voltage (boost), or even do both (buck-boost). Some designs also allow polarity reversal or electrical isolation. Unlike simple linear regulators, DC-DC converters use high-frequency switching devices such as MOSFETs or IGBTs, along with inductors, capacitors, and diodes, to achieve efficient voltage conversion. By rapidly switching the input voltage and filtering the waveform, they provide stable and controlled DC output. Their compact size, light weight, and efficiency levels of up to 95% make them widely used in portable electronics, renewable energy systems, electric vehicles, communication equipment, and industrial automation.
What Is a Transformer?
A transformer is an electromagnetic device that transfers energy between two or more circuits using electromagnetic induction. It consists of primary and secondary windings wrapped around a magnetic core, and its function is to step up or step down alternating current (AC) voltage levels or provide electrical isolation between circuits. When AC current flows through the primary coil, it creates a changing magnetic field, which in turn induces a voltage in the secondary coil proportional to the turns ratio. Transformers are highly efficient, with large-scale power transformers often reaching 95% to 98% efficiency. They are the backbone of AC power transmission and distribution, ensuring voltage levels can be adjusted safely for long-distance transport and local use. In addition to the power grid, transformers are also used in household appliances, industrial machines, audio systems, and instrumentation. Unlike DC-DC converters, transformers cannot directly handle DC signals, as a constant direct current does not generate the necessary changing magnetic field.
Difference Between DC-DC Converter and Transforme

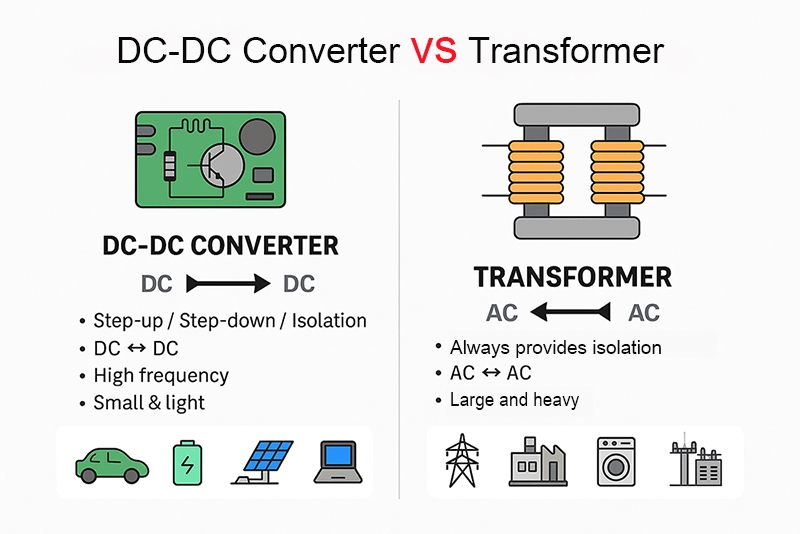

DC-DC Converter vs Transformer Comparison Table
| Feature | DC-DC Converter | Transformer |
| Definition | Electronic circuit converting one DC voltage level to another (buck, boost, buck-boost, isolated types). | Electromagnetic device transferring energy between circuits through induction; only works with AC. |
| Input / Output | DC → DC | AC → AC |
| Isolation | Optional (isolated or non-isolated designs). | Always provides galvanic isolation (except autotransformer). |
| Working Principle | High-frequency switching + inductors/capacitors (sometimes with a high-frequency transformer inside). | AC current in primary coil creates changing magnetic field inducing voltage in secondary coil. |
| Frequency | High frequency (kHz–MHz). | Low frequency (50/60Hz) or higher when used in SMPS. |
| Size & Weight | Compact, lightweight due to high-frequency design. | Bulky and heavy at low frequencies; smaller in high-frequency SMPS. |
| Efficiency | Typically 80-95%. | Typically 95-98%. |
| Applications | Electronics, EVs, solar energy, battery systems, IoT, industrial automation. | Power transmission, AC voltage conversion, isolation in household and industrial AC systems. |
| Key Limitation | Cannot handle AC directly; requires DC input. | Cannot handle DC directly; requires AC input. |
