What Are the Types of DC-DC Converters?

A DC-DC converter, simply put, is a device capable of converting one DC voltage into another. This device plays an indispensable role in numerous electronic devices and systems. DC-DC converters possess multiple functions. From a fundamental principle perspective, they achieve voltage conversion based on electromagnetic induction or the storage of energy in capacitors and inductors. Like a magical magician, it alters voltage values within the DC realm.

For instance, in a buck DC-DC converter utilizing inductive energy storage, when the switching transistor conducts, the input voltage charges the inductor, storing energy. When the transistor switches off, the inductor releases energy to the load. By precisely controlling the on-off timing of the switching transistor, the output voltage can be regulated—much like controlling water levels in a reservoir by storing and releasing water.

Classification of DC-DC Converters

DC-DC converters can be categorized into four main types based on voltage conversion methods and electrical isolation characteristics: DC-DC Buck Converters, DC-DC Boost Converters, DC-DC Boost-Buck Converters, and DC-DC Isolated Converters. PowerHome will provide a detailed overview of the primary classifications and features of DC-DC Converters, helping users gain a deeper understanding of the operating principles and applicable scenarios for different DC-DC converters.

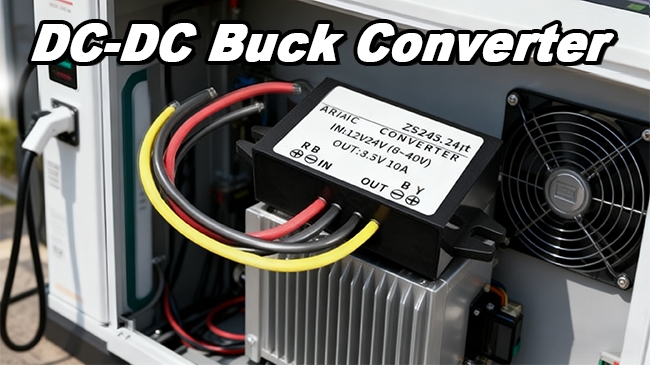

DC-DC Buck Converter

The DC-DC buck converter is the most common type of DC-DC circuit, designed to step down higher DC voltages to lower levels. For example, it converts 24V to 12V or 5V to meet the low-voltage power requirements of microcontrollers, sensors, and communication modules. Its operation relies on the periodic switching of power transistors (such as MOSFETs), utilizing the energy storage and release capabilities of inductors and capacitors to achieve smooth voltage reduction. Key features include:

Output voltage lower than input voltage, with efficiency exceeding 90%.
Simple structure, low cost, and fast response speed.
High output current capability, suitable for regulated power modules and automotive power systems.
Typical applications include: computer motherboard voltage regulation modules (VRM), automotive electronics, telecom power supplies, and LED driver circuits.

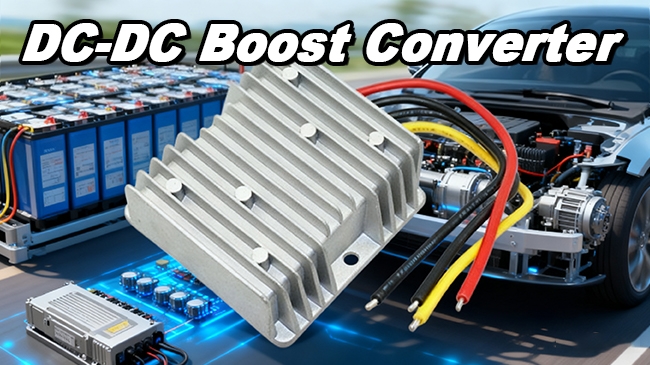

DC-DC Boost Converter

DC-DC boost converters elevate lower voltages to higher levels, such as boosting 5V to 12V, to meet the higher voltage demands of devices like sensors, LED strips, or motors. Its operating principle resembles that of a buck converter circuit, but with reversed energy conversion direction. When the switch is on, the inductor stores energy; when the switch is off, the inductor's stored energy combines with the input voltage to produce an output voltage higher than the input. Key features include:

Output voltage exceeds input voltage, suitable for boosting voltage in low-voltage power systems.
Output current is relatively low, requiring protective circuits to prevent overcurrent.
Inductor and capacitor selection must be precisely matched to avoid output fluctuations.
Typical applications include: solar power systems, portable electronic devices, lithium battery boost modules, wireless communication equipment, etc.

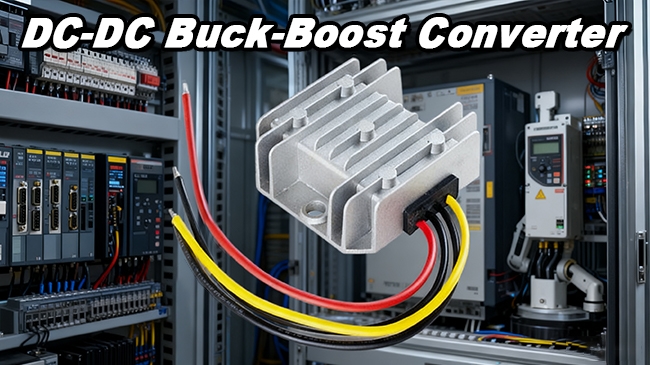

DC-DC Boost-Buck Converter

DC-DC boost-buck converter combines both boost and buck functions, delivering stable output whether the input voltage is higher or lower than the output voltage. It operates by using an inductor as an energy reservoir, switching between charging and discharging during the switching transistor's on and off states. When the input voltage is lower than the output voltage, the system operates in boost mode; when the input voltage is higher than the output voltage, it operates in buck mode. Key characteristics include:

Output voltage can be higher than, equal to, or lower than the input voltage, offering broad adaptability.
Output polarity may be opposite to the input (depending on circuit topology; e.g., traditional Buck-Boost provides reverse output).
Commonly used in applications with unstable input voltages, such as battery-powered devices.
Typical applications: Portable power supplies, mobile terminals, solar controllers, power tools, drone power systems, etc.

Additionally, improved topologies like SEPIC (Single-Ended Primary Inductive Converter) and Cuk converters belong to the buck-boost family, achieving a better balance between forward output, low ripple, and high stability.

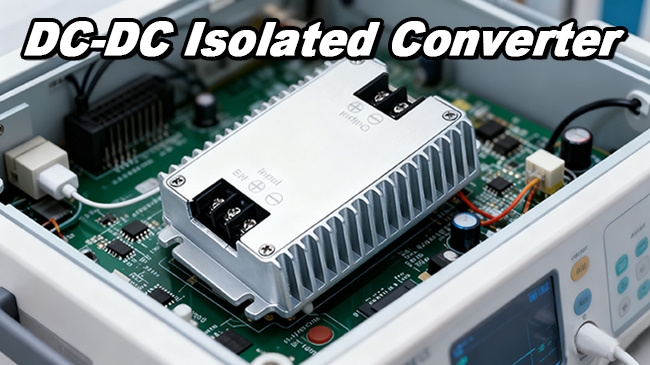

DC-DC Isolated Converter

DC-DC isolated converters achieve electrical isolation between input and output via high-frequency transformers, ensuring safety and interference resistance. They are a critical type in industrial and medical power systems. Their principle involves first converting the input DC signal into an AC signal through high-frequency switching, then transforming the voltage via a transformer before rectifying and outputting it. Common structures include: Flyback converters: Suitable for low-power applications with a simple structure. Forward Converter: Used in medium-power systems with higher efficiency. Push-Pull, Half-Bridge, Full-Bridge Converters: Employed in high-power systems, providing stable output and excellent electromagnetic compatibility. Key features include:

Complete input-output isolation for high safety.
Supports multiple outputs to meet diverse voltage requirements.
Higher cost and complexity compared to non-isolated types.
Typical application scenarios include: industrial control systems, medical equipment, railway communications, data center server power modules, etc.

Selecting Different Types of DC-DC Converters

Different types of DC-DC converters suit varying power scenarios. In application domains, the classification selection of DC-DC converters typically depends on the system's power supply requirements and safety level. For instance, in automotive electronics, the 12V battery system often requires step-down conversion to 5V or 3.3V to supply control units, making high-efficiency DC-DC buck converters the most suitable choice. In renewable energy and energy storage systems, high-power isolated boost or full-bridge structures are commonly used to achieve energy conversion between batteries and inverters. In communication equipment and industrial control systems, isolated modular DC-DC converters are more widely adopted to minimize signal interference and enhance system reliability. Additionally, small electronic devices such as laptops, smartwatches, and IoT terminals favor integrated converters with multiple outputs to achieve precise power delivery to different loads.

As a core component of power management systems, the classification and design of DC-DC converters directly impact the energy efficiency and performance of electronic devices. From simple Buck, Boost, and Buck-Boost configurations to complex isolated structures, each converter type serves unique functions across diverse applications. With the proliferation of new materials and digital control technologies, future DC-DC converters will become more efficient, intelligent, and equipped with adaptive control capabilities. For PowerHome Online Shop, helping users understand the characteristics and application scenarios of various DC-DC converter types enables them to quickly identify their needs. This also facilitates providing users with more energy-efficient and reliable system power solutions.
