DC-DC Converter vs Voltage Regulator

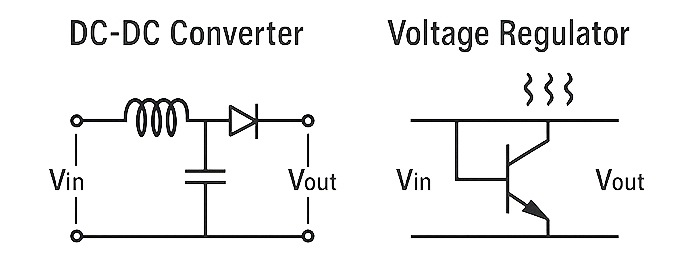

In the field of power supply design, "DC-DC converter" and "voltage regulator" are two terms that are often confused. Both can modify or stabilize voltage, but they differ significantly in principles, structure, efficiency, and application scenarios. This article will provide an in-depth technical analysis of their differences, aided by comparison tables and schematic diagrams for clarity.

Basic Definitions and Working Principles

DC-DC Converter

A DC-DC converter is an electronic circuit that transforms one DC voltage into another DC voltage.
It utilizes inductors, capacitors, diodes, and switching transistors to form an energy storage and release system. Through high-speed switching, it achieves boost, buck, or buck-boost functions.

Its primary characteristics include high energy conversion efficiency and the ability to deliver stable output voltage to accommodate varying load demands.

Common types include:

• Buck Converter (Step-Down): Inputs high voltage, outputs low voltage.
• Boost Converter (Step-Up): Inputs low voltage, outputs high voltage.
• Buck-Boost Converter (Flyback): Input voltage may be higher or lower than output voltage.
• Isolated Converter: Achieves electrical isolation using a transformer.

Voltage Regulator

The core function of a voltage regulator is to stabilize the output voltage.
Its input voltage may fluctuate, but the output voltage remains constant, protecting sensitive components in the circuit (such as IC chips, sensors, control modules, etc.).

Voltage regulators fall into two categories:

• Linear Regulator: Adjusts the conduction level of internal transistors to dissipate excess voltage as heat. Features a simple structure and low noise but operates at lower efficiency.
• Switching Regulator: Incorporates a DC-DC conversion structure (e.g., Buck or Boost). Offers high efficiency and minimal heat generation but produces higher noise and requires more complex design.

Technical Comparison

Efficiency and Heat Dissipation

Efficiency is a defining factor between the two technologies. DC-DC converters operate in a switching mode, transferring energy with minimal losses by alternately charging and discharging an inductor. Because the switching device operates either fully on or fully off, the energy wasted as heat is small, resulting in higher efficiency and cooler operation.

Conversely, linear voltage regulators continuously dissipate the voltage difference between input and output as heat. If a circuit requires 5V from a 12V source, more than half the power may be lost as heat in a linear regulator. This makes them less suitable for high-current or high-power systems but perfect for low-noise environments where thermal output is manageable.

Noise and Output Stability

Noise is another critical distinction. The rapid switching in DC-DC converters introduces ripple and high-frequency noise, which can interfere with sensitive analog signals or audio circuits. Engineers typically use LC filters or shielding to suppress these effects. In contrast, linear regulators provide clean, ripple-free output, which is why they are often used in the final stage of precision instruments, audio amplifiers, or sensor interfaces.

To achieve the best performance, many designers combine the two: a DC-DC converter performs the primary conversion from a high input voltage, and a linear voltage regulator performs fine stabilization of the output. For example, a system may convert 12V to 6V using a buck converter and then regulate it down to 5V using a linear regulator for ultra-stable sensor circuits. This hybrid approach balances efficiency and purity in power delivery.

Industrial and Practical Applications

In industrial automation systems, DC-DC converters are used to power controllers, PLCs, and communication devices from a single central supply. Their high efficiency and wide input range make them ideal for environments where energy loss and heat generation must be minimized.
In automotive systems, converters are used to manage voltage from car batteries, ensuring constant power delivery to infotainment systems, sensors, and electronic control units despite wide input variations.

In contrast, voltage regulators are commonly integrated into microcontroller boards, analog control circuits, and measurement systems, where stability is more important than efficiency. Their ability to suppress noise and deliver precise voltage makes them indispensable for laboratory instruments, sensor amplifiers, and audio processing circuits. For more information about DC-DC converters, please visit Powerhome.com.
