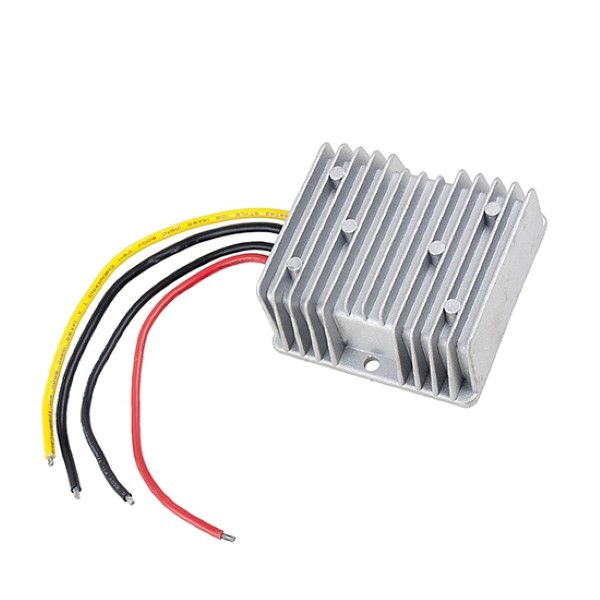

DC-DC Voltage Step Up Converter, 12V to 48V

SKU: PH-DCDC-12S48
$63.45
● 12V to 48V DC-DC voltage step up converter output current can be selected from 1A to 20A, and power can be selected from 48W to 960W. ● 100% full load aging test, compact aluminum housing, easy to install, efficiency up to 96%. ● The DC-DC voltage step up converter has over-current, over-voltage, over-temperature protection and waterproof function. ● With a wide voltage input, it is suitable for electric vehicles, telecommunications, industrial control and railway signals.
*
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

Buy 12V to 48V DC-DC voltage step up converter online with different output currents from 1A to 20A. The DC-DC boost converter is lightweight, compact, has a wide input voltage range of 10V-20V, and a conversion efficiency of up to 96%, which can boost the input voltage of 12V to the output voltage of 24V.

DC-DC voltage step up converter 12V to 48V feature

Feature

  • 100% full power, high stability output.
  • Imported components (e.g. Black Diamond, T, Ruby, etc.).
  • Long service life of more than 100000 hours.
  • Built-in over-current, over-voltage, under-voltage and over-temperature protection.
  • High-quality thermally conductive silicone sealing and irrigation, waterproof, dustproof, shockproof.


Details

  1. High thermal conductivity die-cast aluminum alloy housing, excellent heat dissipation performance, durable in industrial environments, safe and reliable.
  2. High-quality silicone sealing, waterproof, dustproof, and shockproof, ensure the safe and reliable operation of the DC-DC boost converter.
  3. Pure copper magnetic inductor ensures the stability of the DC-DC boost converter, effectively filtering, oscillating, and trapping.
  4. SMT patch technology has high stability and uses high-quality electronic components to ensure high reliability.
DC-DC voltage step up converter 12V to 48V details

Dimension (unit: mm)

12V to 48V 1A-2A

DC-DC voltage step up converter 12V to 48V 1A-2A dimension

12V to 48V 3A-5A

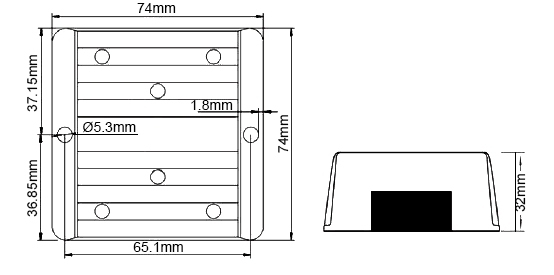

DC-DC voltage step up converter 12V to 48V 3A-5A dimension

12V to 48V 8A

DC-DC voltage step up converter 12V to 48V 8A dimension

12V to 48V 12.5A-20A

DC-DC voltage step up converter 12V to 48V 12.5A-20A dimension

Wiring Diagram

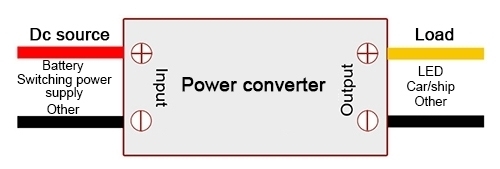

DC-DC voltage step up converter 12V to 48V wiring

Specs
Input
Input Voltage 10-20V (Typ. 12V)
Max. Input Voltage 20V (Continuous)
Undervoltage Shutdown 9.2-9.8V (Automatic Recovery)
Undervoltage Recovery 10.0-10.8V (Automatic Recovery)
Max. Input Current 48.6A (Vin=9.6V; Iout=8A)
No Load Current 100mA (Typ. 71mA; Vin=12V)
Positive Electrode Cable 12 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
Negative Electrode Cable
Enable Pin Cable /
Fuse 80A (Input positive has built-in fuse)
Output
Efficiency 95.7% (Vin=12V; Iout=8A)
Output Voltage 47.4-48.6V (Vin=12V; Iout=8A)
Regulator Accuracy ±2%
Voltage Regulation ±1%
Load Regulation ±1%
Overvoltage Protection /
Output Current 0-8A (Vin=10-20V)
Overcurrent Protection 9-20A (Vin=12V)
External Capacitance /
Output Ripple and Noise 400mVp-p (Typ. 149mVp-p; Vin=10-20V; Iout=8A, Oscilloscope Bandwidth: 20 MHz)
Output Voltage Rise Time 300mS (Typ. 240mS)
Boot Delay Time 300mS (Typ. 255mS)
Out Voltage Overshoot 5%
Over Temperature Protection 95℃ Shell
Short Circuit Protection /
Positive Electrode Cable

14 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)

Negative Electrode Cable
Safety and EMC Features
Anti-electric Strength Input to output: /
Input to shell: ≥500V (Leakage Current ≤ 3.5mA, 1min,No Breakdown, No Arcing)
Output to shell: ≥500V (Leakage Current ≤ 3.5mA, 1min,No Breakdown, No Arcing)
Insulation Resistance Input to output: ≥10MΩ (Test Voltage =500V)
Input to shell: ≥10MΩ (Test Voltage =500V)

Output to shell:≥10MΩ (Test Voltage =500V)

Absolute Maximum Ratings
Operating Ambient Temperature -40-55℃
Shell Ambient Temperature -40-80℃
Storage Temperature -55-100℃
Operating Humidity 5-95% (Non-condensing)
Atmospheric Pressure 62-106Kpa
Altitude 4000m
Cooling Way Natural cooling
Other
Weight ≤550g
Package White Box
MTBF ≥200000H
Switching Frequency 100±10kHz

Note: This table takes the specification of 12V to 48V, 8A as an example, please see the selection table below for 1A/2A/3A/4A/5A/12.5A/20A specification files.

DC-DC Boost Converter Model Selection

Output Current/Power: 1A/48W, Efficiency: 94%, Size: 64*57*22mm PDF computing12V to 48V, 1A DC-DC Boost Converter User Manual
Output Current/Power: 2A/96W, Efficiency: 94%, Size: 64*57*22mm PDF computing12V to 48V, 2A DC-DC Boost Converter User Manual
Output Current/Power: 3A/144W, Efficiency: 95%, Size: 74*74*32mm PDF computing12V to 48V, 3A DC-DC Boost Converter User Manual
Output Current/Power: 4A/192W, Efficiency: 95.2%, Size: 74*74*32mm PDF computing12V to 48V, 4A DC-DC Boost Converter User Manual
Output Current/Power: 5A/240W, Efficiency: 95.3%, Size: 74*74*32mm PDF computing12V to 48V, 5A DC-DC Boost Converter User Manual
Output Current/Power: 8A/384W, Efficiency: 95.7%, Size: 100*80*39mm PDF computing12V to 48V, 8A DC-DC Boost Converter User Manual
Output Current/Power: 12.5A/600W, Efficiency: 95.3%, Size: 140*120*42.5mm PDF computing12V to 48V, 12.5A DC-DC Boost Converter User Manual
Output Current/Power: 20A/960W, Efficiency: 96.8%, Size: 140*120*42.5mm PDF computing12V to 48V, 20A DC-DC Boost Converter User Manual
Application
Car Audio Device

Car Audio Device

Hospital Equipment

Hospital Equipment

Railway Signals

Railway Signals

Telecommunications Equipment

Telecommunications Equipment
