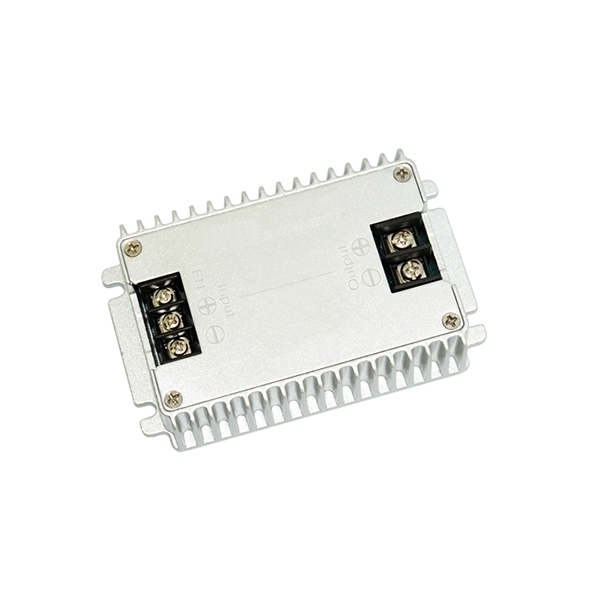

DC-DC Converter with Isolation, 72V to 12V

SKU: PH-IDCDC-7212

$93.69

● The DC-DC converter with isolation is a buck converter that can convert 72V to 12V. ● The input voltage range is 50V to 90V DC, the input and output are isolated from each other, and the design is safe and reliable. ● The output current is 8A, the output power is 96W, the conversion efficiency is 92%, and the waterproof level is IP68. ● The isolated DC-DC converter is potted with thermally conductive silicone and has built-in short circuit, overload, overvoltage and overheating protection.

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Affordable price DC-DC converter with isolation is a step-down converter widely used in artificial intelligence, communication base stations and automation control, which can step down DC 72V to 12V. The input voltage range of the 72V to 12V isolated DC-DC converter is 50V to 90V DC, the output current is 8 amps, the output power is 96 watts, and the conversion efficiency is as high as 92%.

Feature

Isolated DC regulated power supply module, 100% full power, high stability output.
100% high-quality components (e.g, Black Diamond, Ruby, TI, etc.), up to 92% conversion efficiency.
Die-cast aluminum alloy housing, compact structure, small size, easy installation.
Working environment temperature -40℃~+55℃, the product has passed CE, RoHS certification, and has a service life of up to 100,000 hours.

Details

The solid shell is made of die-cast aluminum alloy, which can ensure that the DC-DC converter with isolation is suitable for most situations.
The isolated design isolates the input and output from each other, ensuring the safety and reliability of the converter and preventing damage to valuable equipment.
The chip is an industrial-grade design, using high-quality new components, high conversion efficiency, strong power and reliable quality.
The internal capacitors of the isolated converter are NCC & NICHICON, and it has short circuit, overload, overvoltage and over temperature protection, with high reliability.

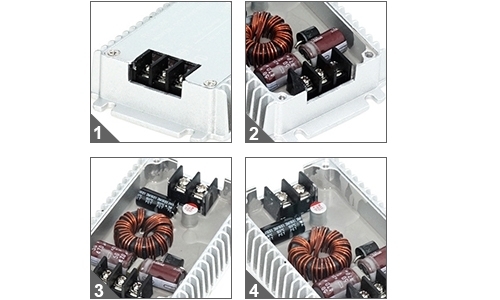

DC-DC converter with isolation 72V to 12V detail

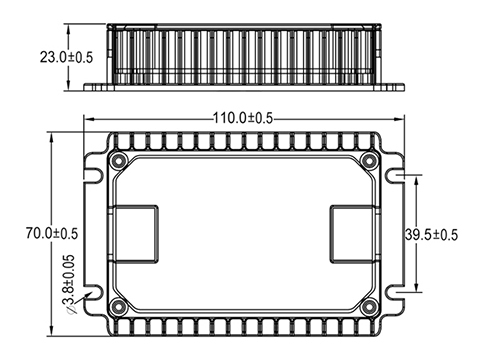

Dimension (unit: mm)

DC-DC converter with isolation 72V to 12V dimension

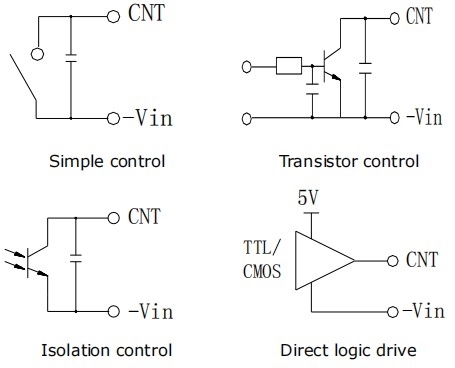

Various Circuits for Driving EN

DC-DC converter with isolation 72V to 12V various circuits for driving the EN

Input Undervoltage Protection: The converter will shut down after the input voltage drops below the under voltage protection threshold for shutdown. The converter will start to work again after the input voltage reaches the input under voltage protection threshold for startup.

Output Overcurrent Protection: The converter equipped with current limiting circuitry can provide protection from an output overload or short circuit condition. If the output current exceeds the output overcurrent protection set point, the converter enters hiccup mode. When the fault condition is removed, the converter will automatically restart.

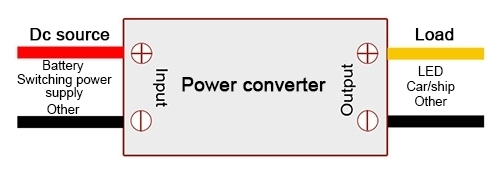

Wiring Diagram

DC-DC converter with isolation 72V to 12V wiring

Specs

Input
Input Voltage	50-90V (Typ. 72V)
Max. Input Voltage	93V (Continuous)
Undervoltage Shutdown	45-48V (Automatic Recovery)
Undervoltage Recovery	46-50V (Automatic Recovery)
Max. Input Current	3A (Vin=50V; Iout=8A)
No Load Current	300mA (Typ. 80mA; Vin=72V)
Positive Electrode Cable	16 AWG (Recommend)
Negative Electrode Cable	16 AWG (Recommend)
Enable Pin Cable	/
Fuse	7.5A
Output
Efficiency	92% (Vin=72V; Iout=8A)
Output Voltage	11.65-12.35V (Vin=72V; Iout=8A)
Regulator Accuracy	±2%
Voltage Regulation
Load Regulation
Overvoltage Protection	13.8-15V (Hiccup mode)
Output Current	0-8A
Overcurrent Protection	8.5-12A
External Capacitance	0-2000μF
Output Ripple and Noise	200mVp-p (Vin=50-90V; Oscilloscope Bandwidth: 20 MHz)
Output Voltage Rise Time	50mS
Boot Delay Time	100mS
Out Voltage Overshoot	5%
Over Temperature Protection	85°C (Shell temperature, @ 80°C Restore working)
Short Circuit Protection	Long-term (4 hours) short circuit is not damaged, Hiccup mode
Positive Electrode Cable	16 AWG (Recommend)
Negative Electrode Cable	16 AWG (Recommend)
Safety and EMC Features
Anti-electric Strength	Input to output: ≥1500V (Leakage Current ≤ 3.5mA, 1min, No Breakdown, No Arcing)
	Input to shell: ≥1500V (Leakage Current ≤ 3.5mA, 1min, No Breakdown, No Arcing)
	Output to shell: ≥500V (Leakage Current ≤ 3.5mA, 1min, No Breakdown, No Arcing)
Insulation Resistance	Input to output: ≥50MΩ (Test Voltage =500V)
	Input to shell: ≥50MΩ (Test Voltage =500V)
	Output to shell:≥50MΩ (Test Voltage =500V)
Absolute Maximum Ratings
Operating Ambient Temperature	-40-50℃
Shell Ambient Temperature	-40-80℃
Storage Temperature	-55-100℃
Operating Humidity	5-95% (Non-condensing)
Atmospheric Pressure	62-106Kpa
Altitude	4000m
Cooling Way	Natural cooling
Other
Weight	≤250g
Package	Color Box
MTBF	≥200000H (Vin=72V; Iout=8A)
Switching Frequency	250±30kHz

72V to 12V, 8A DC-DC Isolated Converter User Manual

Application

Automatic Control

Electronic Communication

LED Display Screen

Car Audio
