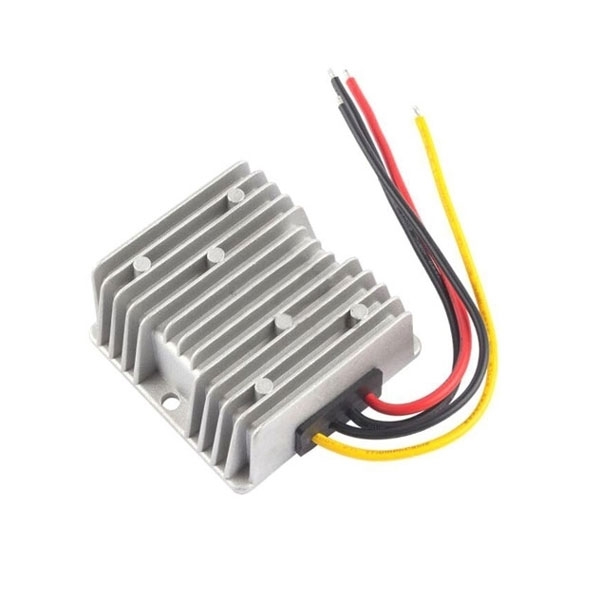

    Picture of DC Converter Step Down, 60V to 12V
    Picture of DC Converter Step Down, 60V to 12V
    Picture of DC Converter Step Down, 60V to 12V

    DC Converter Step Down, 60V to 12V

    0 review(s) | Add your review
    SKU: PH-DCBC-6012
    $82.29
    ● DC converter step down 60V to 12V offers selectable output currents of 5A/10A/15A/20A and output power from 60W-240W. ● 15A/180W output with ±1% voltage regulation, 2% load regulation, 70mA no-load loss, and 120mV ripple & noise. ● Includes short circuit, overcurrent, overvoltage, overtemperature protection, and IP68 waterproof capability. ● Widely used in EVs, industrial control, communication equipment, solar systems.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    DC-DC Buck Converter, 12V/24V to 3.3V/5V

    ● 12V/24V to 3.3V/5V DC-DC buck converter, 100% full power, high stability output. ● 1-60A current available, power from 15W-300W, conversion efficiency up to 95%. ● DC-DC step-down converter with aluminum housing, IP68 sealing, pure copper inductor, and quality SMT components. ● Suitable for a wide range of DC-DC buck converter applications including automotive, industrial, and LED power systems.
    $44.29

    24V DC to 12V DC Converter, 1.5A/5A/30A-100A

    ● Supports 18-36V input and 12V output with 96% efficiency at 24V rated voltage. Available from 1.5A-100A. ● Built-in protections include short circuit, overcurrent, overvoltage, overtemperature, and waterproof design. ● IP68 waterproofing, high-reliability NCC/NICHICON capacitors, non-isolated design, 100% burn-in testing. ● Ideal for powering 12V devices in industrial systems, vehicles, solar setups, and communication equipment using a 24V power source.
    $102.58

    DC Voltage Buck Converter, 36V to 12V

    ● 36V to 12V DC voltage buck converter, selectable 5-60A output current with up to 95% conversion efficiency. ● Output power from 60W-120W, input voltage range of 50A buck converter is 30-50V. ● The buck converter has short circuit, over current, waterproof IP68, over temperature, and over voltage protection. ● Used to step down 36V to 12V, suitable for applications in automotive systems, LED lighting, and industrial equipment.
    $83.44

    DC DC Step Down Converter, 48V to 24V

    ● DC DC buck converter can step down the voltage from 48V to 24V and supports 3A/5A/10A-63A current output. ● Input voltage range is 32-60V, with 96% efficiency at 48V input, delivering up to 5A current and 120W rated power. ● Includes short circuit, overcurrent, overvoltage, overtemperature protection, and IP68 waterproof capability. ● Ideal for EV systems, industrial automation, telecom devices, solar power setups, and 24V equipment powered from 48V sources.
    $72.14

    DC Voltage Step Down Converter, 24V to 13.8V/15V/19V

    ● DC voltage step down converter provides output voltage 13.8V/15V/19V, output current 5A-100A, output power 69W-1380W. ● Has comprehensive protection with short circuit, over current, over voltage, and over temperature protection, and is built with an IP68 waterproof rating. ● 5A DC buck converter offers ±1% voltage regulation, 2% load regulation, low no-load loss of 70mA, ripple and noise of 120mV. ● Suitable for automotive power conversion, communication equipment, power tools, surveillance systems, and industrial automation.
    $41.19
    Overview

    This DC-DC buck converter steps down 60V to 12V with selectable 5A to 20A output (60W-240W). It uses high-quality components like Rubycon, Panasonic, and TI for up to 96% efficiency. The step down converter provides stable 15A/180W output with ±1% voltage regulation, 2% load regulation, low ripple, and minimal no-load loss. Fully sealed with thermal silicone and housed in a compact aluminum case, it offers IP68 waterproof, dustproof, and shockproof protection. Built-in protections include overvoltage, overcurrent, overheating, short circuit, and undervoltage, making buck converter ideal for EVs, solar systems, telecom, and industrial applications.

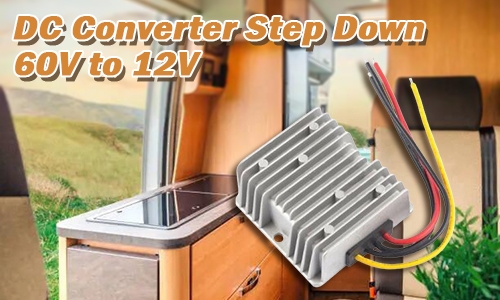

    62V to 12V DC DC buck converter feature

    Feature

    • High-performance non-isolated DC voltage regulator.
    • Has full-rated power with stable and reliable output.
    • DC DC buck converter uses premium components (e.g., Rubycon, Panasonic, TI) for 92–96% conversion efficiency.
    • Sealed with imported thermal silicone for IP68 waterproofing, dustproofing, and shock resistance; compact die-cast aluminum casing for easy installation.
    • Supports wide input voltage range with integrated protections against overcurrent, overvoltage, overheating, and short circuits.









    Details

    1. Aluminum Housing: Strong and thermally efficient casing ensures reliable cooling and long lifespan.
    2. Multiple Protections: Built-in safeguards against overvoltage, overcurrent, short circuit, and overheating.
    3. Easy Installation: Pre-drilled holes allow quick mounting in vehicles, panels, or enclosures.
    4. Secure Connections: DC step down converter equipped with either high-current terminals or thick input/output wires for stable power flow.
    DC DC buck converter 48v to 12v details

    Dimension (unit: mm)

    5A 60W, 10A 120W, 15A 180W

    DC DC buck converter high current dimension

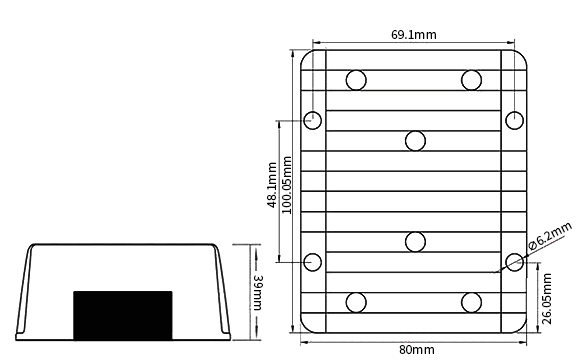

    20A 240W

    DC DC buck converter 100 80 39mm size



    Wiring Diagram

    DC DC buck converter wiring

    Specification
    Input
    Rated voltage 60V
    Voltage range 50-75V
    Efficiency 93% @ 36V input
    Output
    Voltage 12V
    Max. rated current 15A
    Max. rated power 180W
    Voltage regulation ±1%
    Load regulation 2%
    No load loss 70mA
    Ripple & noise 120mV
    Environment
    Working temperature -40 ~ +80℃
    Working humidity 10% ~ 90%RH
    Storage temperature -40 ~ +100℃
    Function
    Short circuit protection YES
    Over current protection YES
    Waterproof IP68
    Over temperature protection YES
    Over voltage protection YES
    Mechanical
    Weight 300g
    Size 74*74*32mm

    Note: This table takes the specification of 60V to 12V, 15A as an example, please see the selection table below for other specification files.


    60V to 12V DC-DC Buck Converter Model Selection

    Output Current/Power: 5A/60W, Efficiency: 94%, Size: 74*74*32mm PDF computing60V to 12V 5A DC DC Buck Converter User Manual
    Output Current/Power: 10A/120W, Efficiency: 94%, Size: 74*74*32mm PDF computing60V to 12V 10A DC DC Buck Converter User Manual
    Output Current/Power: 15A/180W, Efficiency: 95%, Size: 74*74*32mm PDF computing60V to 12V 15A DC DC Buck Converter User Manual
    Output Current/Power: 20A/240W, Efficiency: 94%, Size: 100*80*39mm PDF computing60V to 12V 20A DC DC Buck Converter User Manual
    Application
    EV power supply for on board systems

    EV Power Supply for on Board Systems

    Communication equipment

    Communication Equipment

    Energy storage photovoltaic systems

    Energy Storage/Photovoltaic Systems

    LED billboard

    LED Billboard

    FAQ

    Q1: What are the typical applications of a DC-DC Buck Converter?

    • Electric vehicles (EVs): Stepping down from high battery voltages to 12V or 24V systems.
    • Telecom and networking equipment: Powering communication modules and routers.
    • Industrial automation: Providing stable power to sensors, PLCs, and actuators.
    • Solar systems: Powering control and monitoring systems in off-grid solar setups.
    • Battery-powered devices: Efficient power management for devices like handheld electronics.

    Q2: How do I select the right buck converter for my application?

    • Consider the following factors:
    • Input and output voltage range
    • Required output current and power
    • Efficiency requirements
    • Physical size and cooling method
    • Protection features
    • Environmental conditions (waterproof, vibration resistance)
