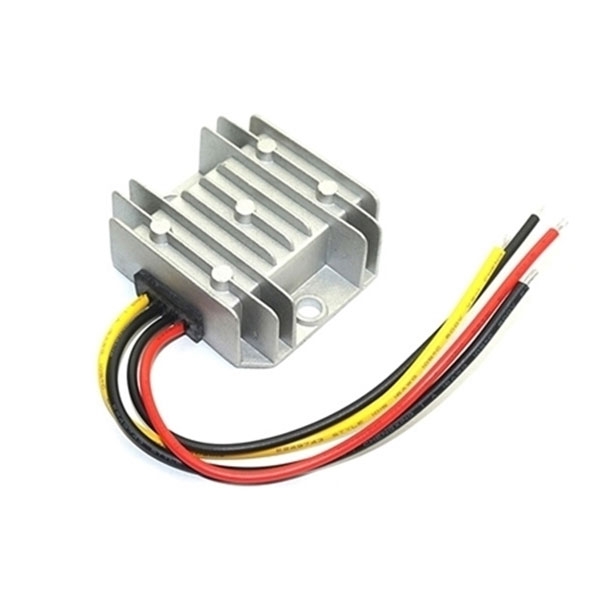

DC DC Step Down Converter, 48V to 24V

The DC-DC buck converter steps down 48V to 24V with 3A-63A output options, offering 32-60V input range, up to 96% efficiency, and a 120W max power (at 5A). It features full-power stable output, uses premium components like Rubycon, Panasonic, and TI, and is fully potted with thermal silicone for IP68-rated waterproof, dustproof, and shockproof protection. Built-in safety includes overcurrent, overvoltage, overtemperature, short circuit, and undervoltage protection. Ideal for EVs, industrial automation, telecom, solar systems, and other 24V equipment powered from 48V sources.

Feature

• Non-isolated DC voltage regulator module.
• 100% full power output with high stability.
• Built with 100% components (e.g., Rubycon, Panasonic, TI), with 92–96% efficiency.
• Buck to buck converter fully potted with high-quality imported thermal silicone; IP68 waterproof, dustproof, shockproof; compact die-cast aluminum housing, easy to install.
• Wide voltage input with built-in protections: over-current, over-voltage, over-temperature, and short-circuit.

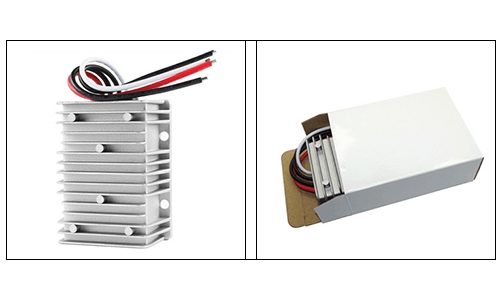

Details

1. Overcurrent Protection: Output voltage gradually drops to zero when output current exceeds the set limit (common in inductive loads like motors or pumps).
2. Overtemperature Protection: When the chip temperature exceeds 150°C, the converter stops working and shuts down output.
   (Note: Refers to chip temperature, not ambient temperature.)
3. Short Circuit Protection: Instant short circuit at the output terminals will not damage the converter.
4. Waterproof Protection: The DC DC step down converter adopts waterproof potting design for moisture, dust, and shock resistance.
5. Undervoltage Protection: When input voltage drops below the set threshold, the output voltage gradually decreases until shutoff.
   (Note: Helps prevent battery over-discharge and extends battery life.)

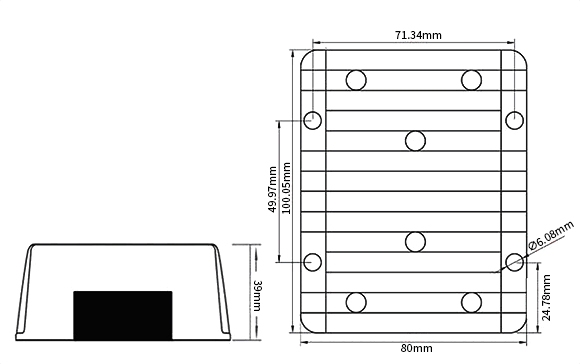

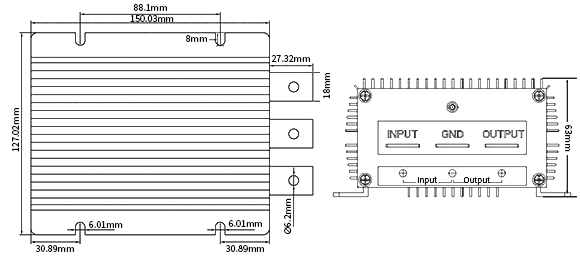

Dimension (unit: mm)

3A 72W

5A 120W, 10A 240W

15A 360W, 20A 480W, 30A 720W

40A 960W

Wiring Diagram

The DC DC buck converter has no polarity protection, please be careful and conscientious when installing the wiring, such as connecting the wrong power supply will be damaged.
