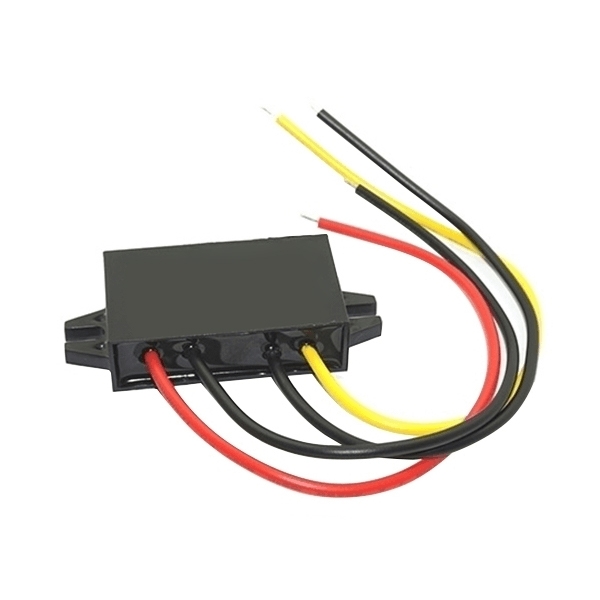

24V DC to 12V DC Converter, 1.5A/5A/30A-100A

SKU: PH-DCBC-2412
$102.58
● Supports 18-36V input and 12V output with 96% efficiency at 24V rated voltage. Available from 1.5A-100A. ● Built-in protections include short circuit, overcurrent, overvoltage, overtemperature, and waterproof design. ● IP68 waterproofing, high-reliability NCC/NICHICON capacitors, non-isolated design, 100% burn-in testing. ● Ideal for powering 12V devices in industrial systems, vehicles, solar setups, and communication equipment using a 24V power source.
*
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

This DC DC step down converter (24V to 12V) supports 18-36V input, delivers up to 96% efficiency at 24V, and offers output options from 1.5A to 100A. It has a non-isolated design, IP68 waterproof rating, premium NCC/NICHICON capacitors, pure copper inductors, and high-quality aluminum housing for reliable heat dissipation. The DC buck converter includes full protections (short circuit, overcurrent, overvoltage, overtemperature), 100% burn-in testing, and uses top-grade components (TI, NICHICON, NIPPON) for stability. Ideal for industrial, automotive, solar, and communication applications.

DC DC buck converter 24v to 12v deatil

Feature

  • High Efficiency: Up to 96% conversion efficiency at 24V input.
  • Non-Isolated Design: Compact and efficient, with input and output sharing a common ground.
  • High-Reliability Capacitors: Equipped with premium NCC and NICHICON capacitors for long-lasting performance.
  • Burn-In Tested: 100% full load burn-in ensures reliability and quality control.
  • Multiple Protection Features: Built-in overload, over-temperature, and over-voltage protection mechanisms.
  • IP68 Waterproof Rating: Fully sealed for use in harsh environments, including outdoor or automotive applications.
  • 1-Year Warranty: Guaranteed quality and support for peace of mind.


Details

  1. Durable Housing: This DC DC step down donverter features a high-quality aluminum alloy casing that provides excellent heat dissipation and ensures safe, reliable operation.
  2. Efficient Wiring: Premium terminals offer fast and efficient circuit connections and power distribution.
  3. Pure Copper Inductor: Built with a magnetic-core pure copper inductor, the DC DC buck converter effectively filters ripple, noise, and interference, ensuring stable output performance.
  4. Premium Components: Uses top-grade components (such as TI, NCC, NICHICON, NIPPON) for superior stability and long-term reliability.

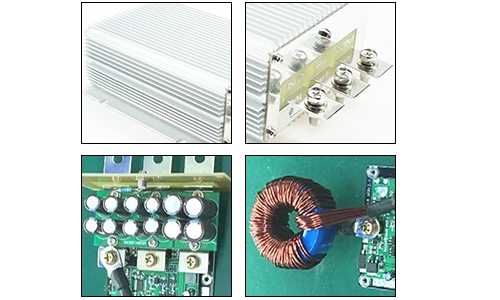

DC DC buck converter 24v to 12v feature

Dimension (unit: mm)

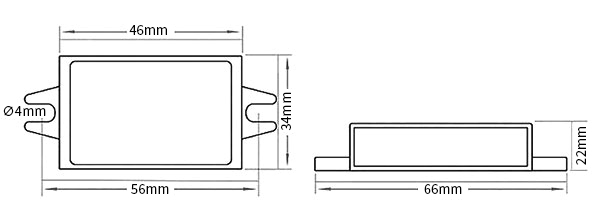

1.5A 18W

Buck converter 24v to 12v 1.5a



10A 120W, 15A 180W

DC DC buck converter high current dimension

50A 600W, 60A 720W

DC DC buck converter 24v to 12v 50a size

Wiring Diagram

DC DC buck converter wiring

Specs
Input
Rated voltage 24V
Voltage range 18-36V
Efficiency 96% @ 24V input
Positive cable (red) 12 AWG @ 16.5cm length
Negative cable (black) 12 AWG @ 16.5cm length
Output
Voltage 12V
Max. rated current 40A
Max. rated power 480W
Voltage regulation ±1%
Load regulation 2%
No load loss 70mA
Ripple & noise 160mV
Positive cable (yellow) 10 AWG @ 16.5cm length
Negative cable (black) 10 AWG @ 16.5cm length
Environment
Working temperature -35 ~ +80℃
Working humidity 10% ~ 90%RH
Storage temperature -40 ~ +85℃
Function
Short circuit protection YES
Over current protection YES
Waterproof IP68
Over temperature protection YES
Over voltage protection YES
Mechanical
Weight 500g
Size 100*80*39mm

Note: This table takes the specification of 24V to 12V, 40A as an example, please see the selection table below for other specification files.


24V to 12V DC-DC Buck Converter Model Selection

Output Current/Power: 1.5A/18W, Efficiency: 92%, Size: 66*34*22mm PDF computing24V to 12V 1.5A DC DC Buck Converter User Manual
Output Current/Power: 5A/60W, Efficiency: 95%, Size: 63*32*18mm PDF computing24V to 12V 5A DC DC Buck Converter User Manual
Output Current/Power: 10A/120W, Efficiency: 97%, Size: 74*74*32mm PDF computing24V to 12V 10A DC DC Buck Converter User Manual
Output Current/Power: 15A/180W, Efficiency: 96%, Size: 74*74*32mm PDF computing24V to 12V 15A DC DC Buck Converter User Manual
Output Current/Power: 30A/360W, Efficiency: 96%, Size: 100*80*39mm PDF computing24V to 12V 30A DC DC Buck Converter User Manual
Output Current/Power: 40A/480W, Efficiency: 96%, Size: 100*80*39mm PDF computing24V to 12V 40A DC DC Buck Converter User Manual
Output Current/Power: 50A/600W, Efficiency: 96%, Size: 150*127*63mm PDF computing24V to 12V 50A DC DC Buck Converter User Manual
Output Current/Power: 60A/720W, Efficiency: 96%, Size: 150*127*63mm PDF computing24V to 12V 60A DC DC Buck Converter User Manual
Output Current/Power: 85A/1000W, Efficiency: 95%, Size: 220*127*63mm PDF computing24V to 12V 85A DC DC Buck Converter User Manual
Output Current/Power: 100A/1200W, Efficiency: 95%, Size: 220*127*63mm PDF computing24V to 12V 100A DC DC Buck Converter User Manual
Application
DC DC car charger

Car Charger

PLC controller

PLC Controller

Solar panel power system

Solar Panel Power System

LED billboard

LED Billboard

FAQ

Q1: How can I check if the converter is working properly?

Use a multimeter to verify the output voltage under load. A stable voltage indicates proper operation.

Q2: Can I power multiple devices from one converter?

Yes, as long as the total current draw is within the converter’s rated output current.

Q3: Why is the DC step down converter getting warm?

Heat is normal under moderate to high loads. Ensure there is airflow or a heatsink if operating near max rated current.
