DC Voltage Step Down Converter, 24V to 13.8V/15V/19V

SKU: PH-DCBC-2415
$41.19
● DC voltage step down converter provides output voltage 13.8V/15V/19V, output current 5A-100A, output power 69W-1380W. ● Has comprehensive protection with short circuit, over current, over voltage, and over temperature protection, and is built with an IP68 waterproof rating. ● 5A DC buck converter offers ±1% voltage regulation, 2% load regulation, low no-load loss of 70mA, ripple and noise of 120mV. ● Suitable for automotive power conversion, communication equipment, power tools, surveillance systems, and industrial automation.
*
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

This DC voltage step down converter delivers 13.8V/15V/19V output with 5A-100A current and up to 96% efficiency, making it ideal for automotive, industrial, and communication applications. It has IP68 waterproof protection, ±1% voltage regulation, compact aluminum alloy housing, and reliable safety protections including short circuit, overcurrent, and overvoltage. With easy installation, strong terminals, and a 1-year warranty, it ensures stable, long-term performance even in harsh environments.

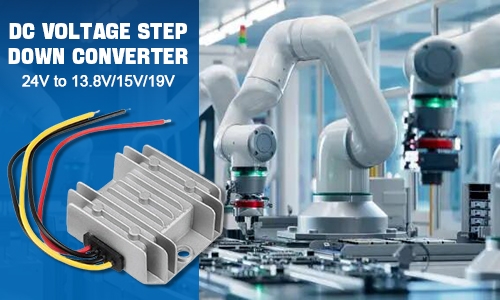

24V to 15V DC DC buck converter feature

Feature

  • Step down buck converter ensures reliable operation even at temperatures as low as -40°C.
  • Has a non-isolated input-output design, it simplifies system integration while maintaining compactness.
  • DC buck converter IP68 waterproof rating makes it ideal for outdoor and industrial use in dusty or wet conditions.
  • Delivers high efficiency up to 96% at 24V input and 25°C, reducing energy loss and heat buildup.
  • Comes in a small form factor with robust construction, perfect for tight installation spaces.
  • Fully tested under 100% full-load burn-in conditions, guaranteeing stable long-term performance.
  • Equipped with multiple safety protections, including short circuit, overload, and undervoltage protection.
  • Supported by a 1-year warranty, providing peace of mind and dependable service life.


Details

  1. Enclosure: Sturdy aluminum alloy housing ensures excellent heat dissipation and long-lasting durability in industrial settings.
  2. Protection: The DC to DC buck converter integrates protections against over-voltage, over-current, short circuits, and overheating for safe and stable performance.
  3. Mounting: Pre-drilled mounting points enable quick and secure installation in vehicles, control panels, and equipment enclosures.
  4. Connection Terminals: Features high-current terminals or robust wiring to maintain strong, stable connections under heavy loads.
DC DC buck converter 48v to 12v details

Dimension (unit: mm)

5A 69W, 10A 138W

DC DC buck converter 48v to 36v 5a dimension

15A 207W, 20A 276W

DC DC buck converter 48v to 36v 15a dimension



30A 414W

DC DC buck converter 48v to 36v 30a size

50A 690W, 60A 828W

DC DC buck converter 48v to 36v 50a 60a size

Wiring Diagram

DC DC buck converter wiring

Specs
Input
Rated voltage 24V
Voltage range 18-36V
Efficiency 94% @ 24V input
Output
Voltage 13.8V
Max. rated current 5A
Max. rated power 69W
Voltage regulation ±1%
Load regulation 2%
No load loss 70mA
Ripple & noise 120mV
Environment
Working temperature -40 ~ +80℃
Working humidity 10% ~ 90%RH
Storage temperature -40 ~ +100℃
Function
Short circuit protection YES
Over current protection YES
Waterproof IP68
Over temperature protection YES
Over voltage protection YES
Mechanical
Weight 300g
Size 64*57*22mm

Note: This table takes the specification of 24V to 13.8V, 5A as an example, please see the selection table below for other specification files.


24V to 13.8V DC-DC Buck Converter Model Selection

Output Current/Power: 5A/69W, Efficiency: 94%, Size: 64*57*22mm PDF computing24V to 13.8V 5A DC DC Buck Converter User Manual
Output Current/Power: 10A/138W, Efficiency: 95.5%, Size: 64*57*22mm PDF computing24V to 13.8V 10A DC DC Buck Converter User Manual
Output Current/Power: 15A/207W, Efficiency: 96.2%, Size: 74*74*32mm PDF computing24V to 13.8V 15A DC DC Buck Converter User Manual
Output Current/Power: 20A/276W, Efficiency: 95.7%, Size: 74*74*32mm PDF computing24V to 13.8V 20A DC DC Buck Converter User Manual
Output Current/Power: 40A/552W, Efficiency: 96.9%, Size: 100*80*39mm PDF computing24V to 13.8V 40A DC DC Buck Converter User Manual
Output Current/Power: 50A/690W, Efficiency: 96.6%, Size: 100*80*36mm PDF computing24V to 13.8V 50A DC DC Buck Converter User Manual
Output Current/Power: 60A/828W, Efficiency: 96.3%, Size: 100*80*36mm PDF computing24V to 13.8V 60A DC DC Buck Converter User Manual
Output Current/Power: 100A/1380W, Efficiency: 96.8%, Size: 140*120*42.5mm PDF computing24V to 13.8V 100A DC DC Buck Converter User Manual



24V to 15V DC-DC Buck Converter Model Selection

Output Current/Output Power Efficiency
1A/15W 95%
2A/30W 95%
3A/45W 95%
4A/60W 95%
5A/75W 95%

Size: 58*24*20mm



24V to 19V DC-DC Buck Converter Model Selection

Output Current/Output Power Efficiency
5A/95W 93%
10A/190W 92%
15A/285W 93%

Size: 74*74*32mm

Application
EV power supply for on board systems

EV Power Supply for on Board Systems

Communication equipment

Communication Equipment

Energy storage photovoltaic systems

Energy Storage/Photovoltaic Systems

LED billboard

LED Billboard

FAQ

Q1: Can I connect multiple dc converters in series or parallel?

Series connection is not recommended due to voltage imbalance risks. Parallel connection is possible to increase current, but all converters must have matched voltage outputs and current balancing mechanisms.

Q2: Is dc buck converter compatible with lithium-ion battery systems?

Yes, as long as the 24VDC input falls within the converter’s input voltage range. However, ensure that the battery management system (BMS) supports the load and has appropriate protections in place.
