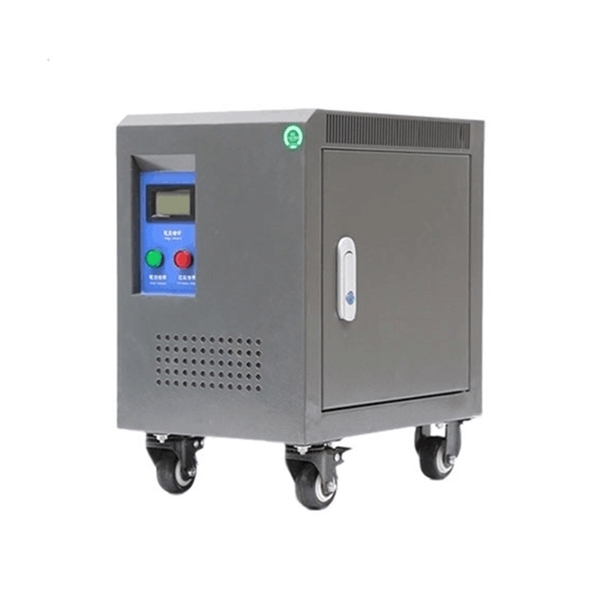

1kVA Split Phase Transformer, 110V/120V to 220V/240V

Q1: What is a split phase transformer?

A split-phase isolation transformer is a power device used to convert single-phase electricity into multi-phase electricity (usually two-phase or three-phase). Through special winding design or auxiliary circuits, it outputs multiple voltages with phase differences from a power source that originally had only one phase, thus providing usable power for three-phase motors or industrial equipment. The single phase to split phase transformer is commonly used in situations where a three-phase power grid is unavailable.

Q2: How does a split phase transformer work?

A split-phase transformer is based on the principle of electromagnetic induction. By setting multiple sets of windings on the secondary side and utilizing phase shifting techniques (such as winding structure or capacitor assistance), it generates voltages with a certain phase difference (such as 90° or 120°). This allows multiple phases to be "separated" from a single-phase input, achieving an output similar to three-phase electricity, enabling the load to operate normally.

Q3: Is split phase the same as two-phase power?

No. Split-phase electricity is essentially still an extension of a single-phase electrical system, only forming two voltages (usually 180° out of phase) through a center tap or phase separation; while true two-phase electricity refers to two independent power supply systems with a 90° phase difference. Therefore, phase separation is not the same as two-phase electricity, nor can it completely replace a standard multiphase electricity system.
