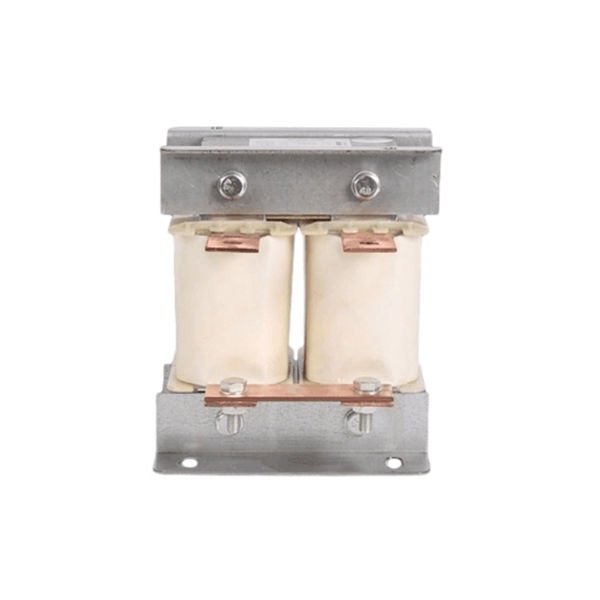

Q1: What is a DC reactor?
A DC reactor (DC link choke) is an inductive element installed in a DC circuit. Its main functions are to smooth DC current, reduce ripple, suppress harmonics, and limit current variations. In inverters, rectifiers, and power supply systems, it is typically located on the DC bus between rectification and inversion. Its inductive characteristics improve power quality, protect critical components (such as capacitors and power modules), and enhance the overall system reliability.
Q2: Can DC reactors extend capacitor lifespan?
Yes, DC reactors can effectively extend capacitor lifespan. By suppressing current ripple and limiting inrush current in the DC bus, they reduce high-frequency pulsating and inrush currents flowing through the capacitor, thereby reducing capacitor heating and electrical stress. Simultaneously, DC reactors can mitigate the impact of harmonics on capacitors, preventing them from operating under high stress for extended periods. Therefore, configuring DC smoothing reactor in inverter and rectifier systems typically helps to significantly improve capacitor lifespan and system stability.
