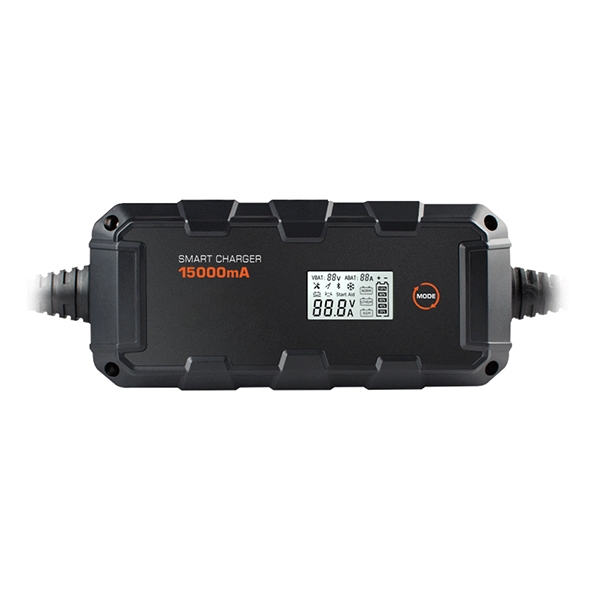

    15A Intelligent Car Battery Charger, 6 Volt/12 Volt/24 Volt

    SKU: PH-BC-15A
    $139.77
    ● 15-amp battery charger compatible with 6V/12V/24V systems. ● Supports lead-acid batteries, AGM batteries, and lithium batteries. ● Intelligent 8-stage charging with a charging efficiency of 80%, safe and highly efficient. ● Possesses certifications such as CE, EMC, LVD, Rohs, FCC, ensuring reliable quality.
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    Come and buy intelligent battery chargers from Powerhome! With a 15A output is engineered to charge batteries at a maximum current of 15 amps, it incorporates cutting-edge technology to streamline the charging process, balancing efficiency with reliable protection. For lithium batteries, it uses a 3-stage charging, while lead-acid batteries benefit from a more sophisticated 8-stage charging. Intelligent battery charger automatically adapt the charging rate according to the battery's real-time condition and chemistry, eliminating risks of overcharging and undercharging to safeguard battery health.

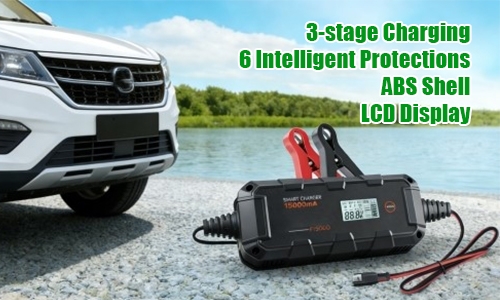

    15A Intelligent Car Battery Charger

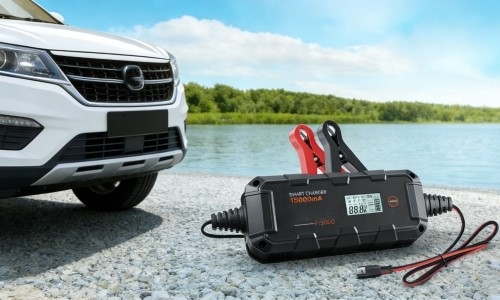

    Feature

    • Universal compatibility with cars, motorcycles, electric vehicles for versatile use in various environments.
    • Simple operation with cost-effectiveness and portability for daily use, straightforward design ensures high reliability and easy maintenance.
    • 6 intelligent protection with overvoltage, short circuit, reverse connection, overheat, low voltage and overload protection for all-round safety.
    • Equipped with internationally standard pure copper wires, it is less prone to heating during charging.

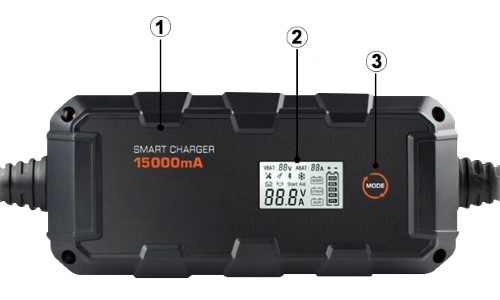

    Details

    1. ABS Shell: High-strength, impact-resistant ABS plastic casing for durable protection against bumps, scratches, and daily wear.
    2. Smart LCD Display: Clear, high-contrast screen showing real-time charging current, voltage, and battery status at a glance.
    3. Mode Switch Button: One-touch button to quickly toggle between charging modes for different battery types and functions.
    15A Intelligent Car Battery Charger Details

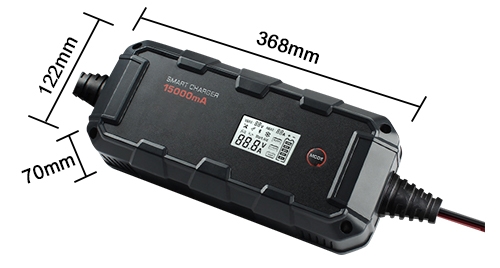

    15A Intelligent Car Battery Charger Dimension

    15A Intelligent Car Battery Charger Dimension

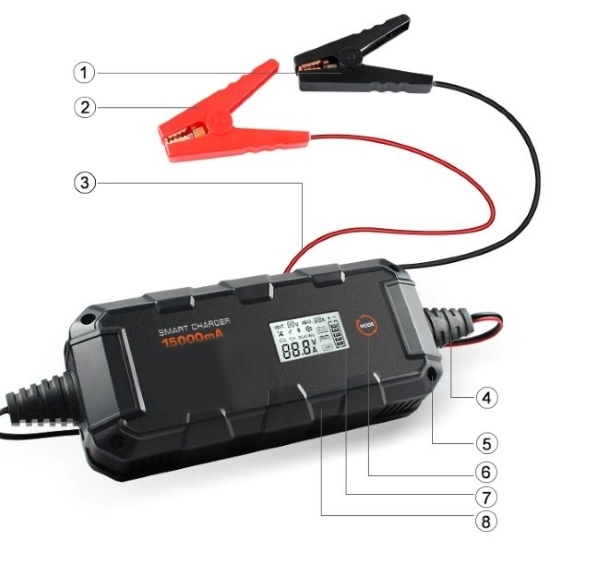

    15A Intelligent Car Battery Charger Structure

    15A Intelligent Car Battery Charger Structure

    1 2 3 4
    Negative Alligator Clip Positive Alligator Clip Pure Copper Wire Wire Clip
    5 6 7 8
    Positioning Hole Mode Button Digital Display Screen ABS Plastic Housing
    Specs
    Model PH-F15000
    AC Input 100V AC-125V AC/60Hz
    Charging Voltage DC 6V/12V/24V (optional)
    Charging Current DC6V: 4A/8A/15A
    DC12V: 4A/8A/15A
    DC24V: 2A/4A/8A
    Charging Mode 3 stage charging for Lithium battery
    8 stage charging for lead-acid batteries
    Applicable Battery Type Standard lead acid (containing WET/GEL/MF/CA/EFB), AGM, Lithium
    Cords Input line 1.65M
    Output line 1.65M
    Efficiency 85% max
    Ambient Temperature 0 ℃~40 ℃
    Cooling Method Fan
    Product Size 368*122*70mm
    Product Net Weight 1.25 kg
    Certification CE, EMC, LVD, Rohs, FCC
    Application
    15A Intelligent Car Battery Charger for Car

    Charge the Car

    15A Intelligent Car Battery Charger for RV

    Charge the RV

    15A Intelligent Car Battery Charger for Motorcycle

    Charge the Motorcycle

    15A Intelligent Car Battery Charger for Lawn Mower

    Charge the Lawn Mower

    FAQ

    Q1: How long should a smart battery charger be left on?

    How long you should keep an intelligent car battery charger connected varies based on the specific battery and charger models. For lead-acid batteries— the kind commonly used in vehicles like cars and motorbikes— a full charge generally takes between 12 and 24 hours. A key advantage of intelligent battery chargers is their automatic shut-off function, which kicks in once the battery reaches full capacity and effectively prevents overcharging issues. Lithium-ion batteries, which are widely used in various electronic devices, have a much shorter charging time, usually only 1 to 4 hours to reach full power. Adhering to the manufacturer’s official instructions is crucial to avoid causing any battery damage, as overcharging not only shortens a battery’s overall service life but also brings potential safety hazards. To ensure your battery performs at its best and lasts as long as possible, always use an intelligent battery charger that’s fully compatible with your battery type and strictly follow all relevant safety measures.

    Q2: What is 8-stage charging?

    8-stage charging is a refined, intelligent charging technology that divides the entire charging process into eight phases: pulse activation, soft start, constant current fast charging, constant voltage trickle charging, status analysis, battery repair, float charging maintenance, and long-term preservation. By dynamically adjusting voltage and current, it not only replenishes battery power efficiently, but also prevents issues like overcharging and plate sulfation, thus effectively protecting the battery and extending its service life, making it a more battery-friendly charging method.
