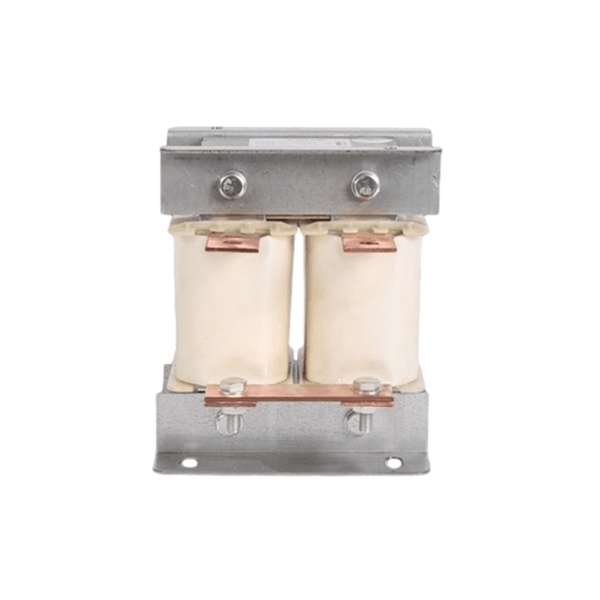

20 hp Single Phase DC Reactor, 40A

Feature

• Compact size, easy to install.
• High filtering performance, low energy consumption.
• Effectively smooths current, reduces current fluctuations. Suppresses harmonic propagation to the grid side, reducing electromagnetic interference.
• Limits current rise rate, protecting DC bus capacitors.
• Limits inrush current, improves power factor.
• Optimizes power quality for motor drives, fans, pumps, and automated production lines, improving operating efficiency.

1. Cold rolled silicon steel sheet
2. Iron core wire cover
3. Tinned copper terminal

20 hp DC Reactor Size

Application

Power Grid

Transportation

Industrial Equipment

Commerce

Q1: What are the benefits of using DC reactors?

DC link chokes effectively smooth DC bus current, reducing current ripple and harmonic content, thereby improving overall power quality. In inverter systems, they also limit inrush current, reducing the impact on rectifier bridges, capacitors, and power devices, extending equipment lifespan. Simultaneously, DC smoothing reactors help reduce electromagnetic interference (EMI), improving system stability and reliability, making them particularly suitable for medium- to high-power applications.

Q2: Does a DC reactor lower the system voltage?

During normal operation, a DC reactor for vfd does not significantly lower the system voltage. However, due to its inductive characteristics, it generates a certain voltage drop (usually small and controllable) when current flows through it. This voltage drop mainly occurs when the load changes or current fluctuates, reflecting the reactor's ability to suppress current changes. Under proper selection and design conditions, this voltage loss has a minimal impact on the system; instead, it contributes to a more stable DC voltage and better operating conditions.
