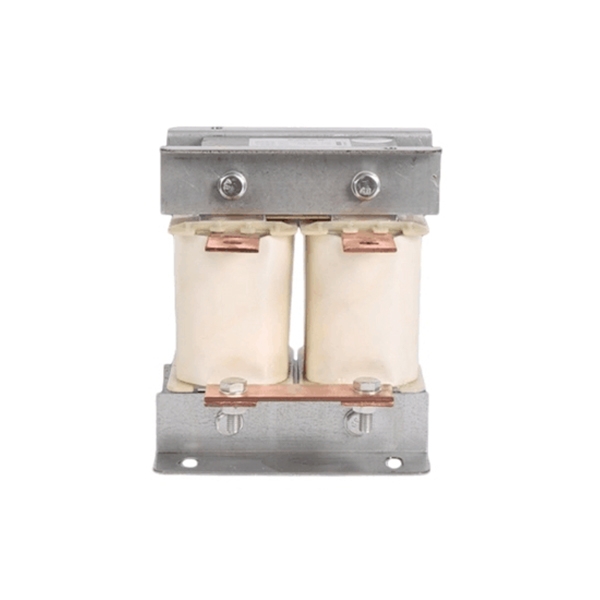

2 hp Single Phase DC Reactor, 8A

SKU: PH-DCR-2

$92.89

● 2 hp single-phase DC reactor, high temperature resistant, low noise. ● Available in copper or aluminum, 220/380/400V customizable. ● Made of cold-rolled silicon steel sheet, robust and durable. ● Reduces DC bus current ripple and harmonic current.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The DC link reactor has a capacity of 2 hp (1.5 kW) and a rated current of 8A, and is suitable for DC system voltage levels of 220V/380V/400V. Single-phase DC smoothing reactors offer high filtering performance and low energy consumption, commonly used in inverters, rectifiers, and power converters to improve DC power quality and protect equipment.

Feature

Reduces DC bus ripple, resulting in more stable DC voltage.
Limits inrush current, protecting rectifiers and DC capacitors during startup.
Suppresses harmonics, extending the lifespan of capacitors and inverter components.
Widely used in VFD DC buses, rectifiers, and DC power systems.

Details

Cold rolled silicon steel sheet
Iron core wire cover
Tinned copper terminal

2 hp DC Reactor Size

Size

Specs

Model	DCL-8
Phase	1 Phase
Power Adapter	1.5 kW (2 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	8A
Inductance	5.3mH
Insulation Grade	F.H
Dimension	84110100mm (LWH)
Mounting Dimension	70*70mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	2.5kg

Application

Power Grid

Transportation

Industrial Equipment

Commerce

FAQ

Q1: Where are DC reactors installed?

DC link reactors are typically installed on the DC bus (DC Link) between the rectifier and inverter. Inside a frequency converter (VFD), DC reactor is located between the rectifier bridge output and the DC capacitor; some designs also connect it in series in the DC bus circuit. Simply put, DC line reactor is the intermediate link between AC-to-DC and DC-to-AC conversion, used to regulate and optimize the DC-side current.

Q2: How do DC reactors improve power quality?

Dual DC link reactors, through their inductive characteristics, can suppress the rate of change of current (di/dt), effectively reducing ripple current in the DC bus. Simultaneously, they reduce harmonic propagation to the grid side, improving the input current waveform to be closer to a sine wave. Furthermore, DC link chokes limit inrush current and surge current, reducing the impact on the rectifier and capacitor, thus improving overall system stability and power quality.
