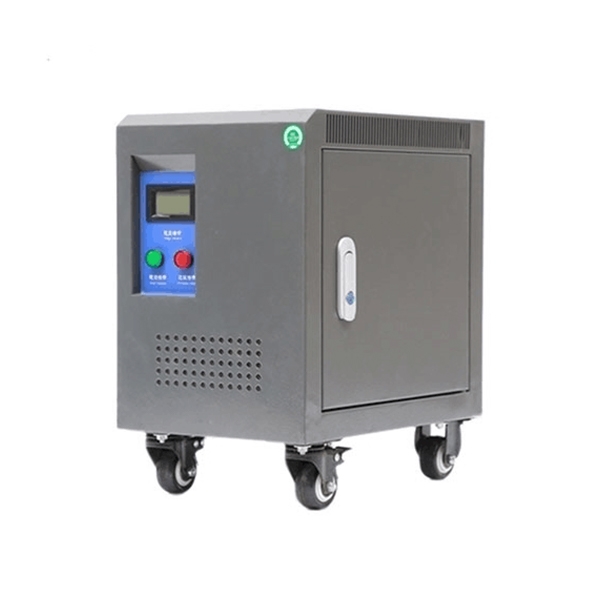

Q1: What is the working principle of a single phase to split phase transformer?
A 120v split phase transformer splits the input single-phase voltage into two sets of voltage outputs with equal amplitude and 180° phase difference by setting a center tap in the secondary winding. For example, it converts the input voltage into two 120V voltages, which can be combined to form a 240V output. This structure allows it to provide both low voltage (120V) and high voltage (240V) to meet different load requirements.
Q2: Can a single phase to split phase transformer be used for motors?
Yes, but only if the motor is a single-phase 120/240V motor. A split phase power transformer can provide a stable phase power supply for such motors and is commonly found in equipment such as fans, pumps, and small machinery. However, it is important to note that it cannot convert single-phase electricity into true three-phase electricity, therefore it is not suitable for three-phase motors (unless used with a frequency converter or phase converter).
Q3: How to wire a split phase transformer?
A 220v split phase transformer typically has three terminals on its secondary side: two live wires (L1, L2) and one neutral wire (N, center tap).
- The output voltage between L1 and N is approximately 120V.
- The output voltage between L2 and N is approximately 120V.
- The output voltage between L1 and L2 is approximately 240V.
When wiring, the appropriate voltage should be selected according to the load requirements, and the following should be ensured:
- Proper grounding (PE)
- Configure a circuit breaker or overload protection
- Construction according to local electrical codes.
