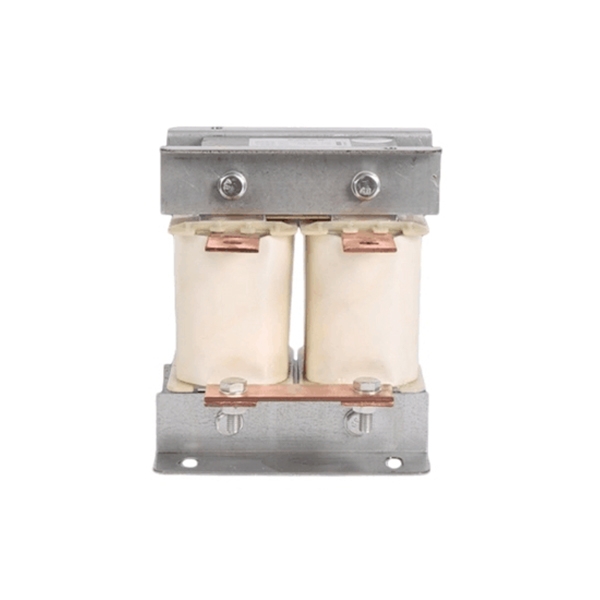

30 hp Single Phase DC Reactor, 60A

Q1: Why do VFDs need DC reactors?

During rectification, frequency converters (VFDs) generate significant harmonic currents and current surges. Without a DC link reactor, this can easily lead to large fluctuations in the DC bus current and increased stress on components. A DC reactor suppresses harmonics and limits surge currents, making the DC link smoother and thus improving the VFD's operating efficiency and reliability. Furthermore, DC choke for vfd provides a buffering effect during grid fluctuations or sudden load changes, making it a crucial component for ensuring the long-term stable operation of the frequency converter.

Q2: What are the differences between AC reactors and DC reactors?

The main differences between AC reactors and DC reactors lie in their installation location and operating circuit.

• AC reactors are installed in AC circuits, typically at the input or output of frequency converters, to limit AC current, reduce harmonics, and protect motors and the power grid.
• DC link chokes, on the other hand, are installed in the DC bus circuit of the frequency converter to smooth DC current, reduce ripple, and suppress harmonic currents.

Simply put, AC reactors act on the AC side, while DC line reactors act on the DC side; both work together to improve the stability and power quality of the power system.
