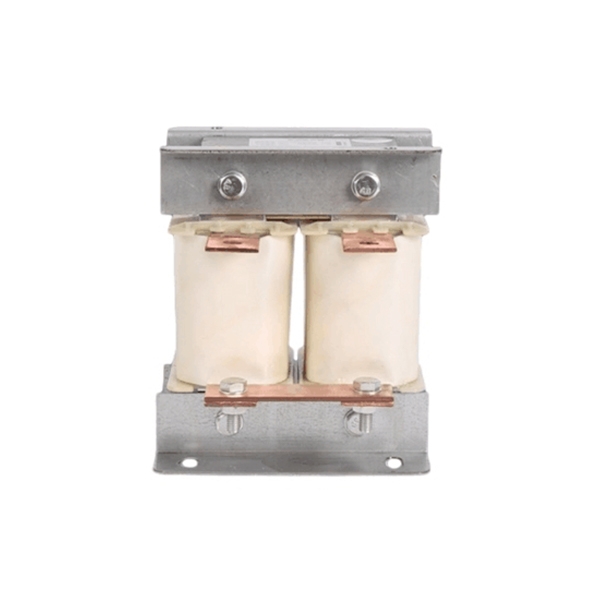

3 hp Single Phase DC Reactor, 8A

SKU: PH-DCR-3

$95.79

● 3 hp DC reactor, single-phase, 220V/380V/400V can be optional. ● Rated current 10A, pure copper construction, F.H insulation class. ● Used to smooth DC current and reduce harmonic interference. ● Apply in frequency converter, rectifier and inverter systems.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The DC reactor for VFD uses a silicon steel sheet core, resulting in low energy consumption and low noise. It offers secure installation and easy wiring. Suitable for installation in industrial control cabinets or inside power equipment. DC smoothing reactor effectively suppress current ripple, limit inrush current, and improve the operational stability of dc lines.

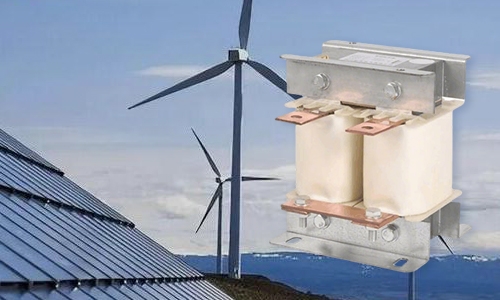

Feature

Smooths DC current, reduces harmonic interference, and protects power electronic equipment.
Reduces current surges and instantaneous spikes, minimizing impact on rectifier bridge modules and filter capacitors.
Reduces system heat generation and energy loss, improving equipment operating efficiency.
Maintains a stable operating environment for frequency converters and motor drive systems, ensuring stable operation even under load changes or voltage fluctuations.

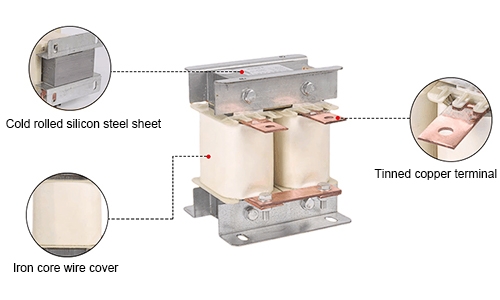

Details

Cold rolled silicon steel sheet
Iron core wire cover
Tinned copper terminal

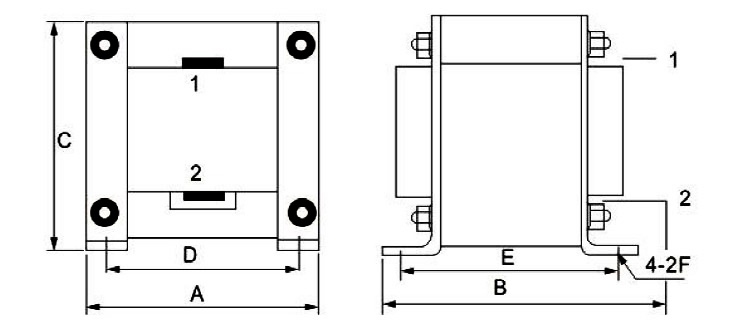

3 hp DC Reactor Size

Size

Specs

Model	DCL-10
Phase	1 Phase
Power Adapter	2.2 kW (3 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	10A
Inductance	3.185mH
Insulation Grade	F.H
Dimension	84110100mm (LWH)
Mounting Dimension	70*70mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	2.5kg

Application

Power Grid

Transportation

Industrial Equipment

Commerce

FAQ

Q1: What is a DC reactor used for?

A DC reactor is primarily used in DC circuits to smooth DC current, reduce current ripple, and suppress harmonic interference by increasing inductance. It reduces the impact of current fluctuations on power electronic equipment, thereby improving system stability and reliability. DC smoothing reactors are commonly used in frequency converters, rectifiers, inverters, and motor drive systems to improve power quality and protect critical electronic components.

Q2: What is the role of a DC reactor in a frequency converter?

In a frequency converter system, a DC link reactor is typically installed between the rectifier bridge and the DC bus. It limits the rate of current change, reduces harmonic currents generated by the rectifier, and reduces the impact on filter capacitors and rectifier modules. By smoothing DC current and reducing current fluctuations, DC reactor for VFDs improve the stability of the frequency converter system, reduce equipment heat generation, and extend the lifespan of the frequency converter and related electrical components.
