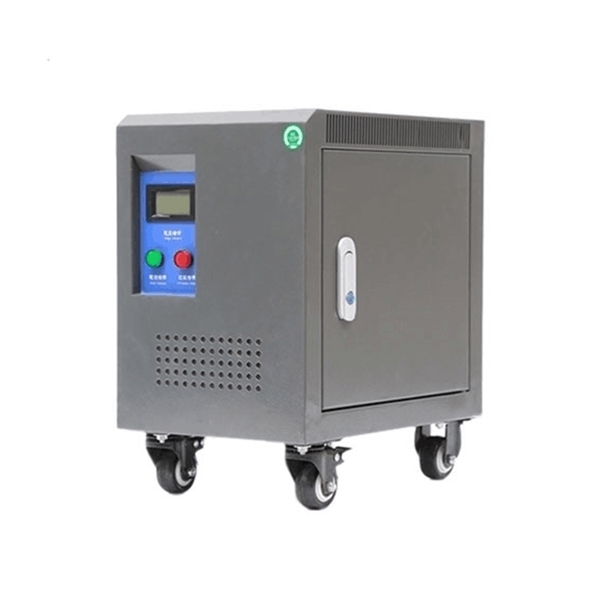

4kVA Split Phase Transformer, 110V/120V to 220V/240V

Q1: How to choose the appropriate size of a split phase transformer?

When selecting the capacity of a split phase power transformer (single-phase to phase-splitting), the first step is to determine it based on the total power of the load, usually measured in kVA or HP (horsepower). It's generally recommended to leave a 20%–30% margin after calculating the total load to avoid overload operation. Furthermore, attention should be paid to the matching of the input voltage and the output voltage, as well as the load type. For frequently starting or impact loads (such as compressors and pumps), a larger capacity should be selected.

Q2: Can one split phase transformer drive multiple motors?

Yes, one split phase transformer can drive multiple motors simultaneously, but the total power of all motors must not exceed the transformer's rated capacity, and simultaneous starting must be considered. In practical applications, "off-peak starting" or configuring soft starters/frequency converters is often used to reduce starting shock. In addition, it is necessary to ensure a relatively balanced load distribution among the motors to guarantee the stability of the three-phase output and the motor's operating efficiency.

Q3: Can 240v split phase transformer be used with a generator or frequency converter?

A 240v split phase transformer can be used with a generator or frequency converter, but matching issues need to be considered. When used with a generator, ensure that the generator capacity is sufficient and has good voltage regulation performance; otherwise, it may affect the balance and stability of the three-phase output.

When used with a frequency converter (VFD), the typical structure is "single-phase input → phase-splitting transformer → three-phase output → frequency converter → motor." It is necessary to confirm that the frequency converter supports this input method and avoid harmonic interference issues.
