48V to 5V PoE Splitter Adapter

SKU: PH-POES-F3AL

$46.69

● The PoE power splitter provides a stable DC power output to terminal devices. ● Supports the IEEE 802.3af/at PoE standard and is suitable for various low-power network devices. ● Uses pure copper wire, offering excellent conductivity to ensure stable network signal transmission. ● Supports 12/36 or 45/78 power supply modes, providing reliable power for network cameras, wireless bridges, access control systems, and other devices, widely used in security monitoring and network equipment power supply scenarios.

Socket *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The poe splitter 48v is compatible with the IEEE 802.3af/at standard, features circuit isolation protection, and provides stable voltage output. It includes power failure protection, voltage protection, and circuit protection, supports transmission rates of 10/100Mbps, and ensures smooth network signal transmission. Suitable for power supply of network cameras (IPCs), wireless APs, and IP phones.

Feature

Compatible with the IEEE 802.3af/at PoE standard and provides a stable DC 5V output to power terminal devices.
The circuit isolation protection design effectively reduces interference caused by input voltage fluctuations.
Supports 10/100Mbps network transmission rates, enabling stable and smooth data transmission to meet the needs of monitoring systems for clear image quality and continuous signal.
Using high-quality all-copper wiring, it has excellent conductivity, ensuring a stable and uninterrupted network connection.
Suitable for applications such as network cameras, wireless APs, wireless bridges, access control systems, and IoT devices, simplifying cabling and improving installation efficiency.

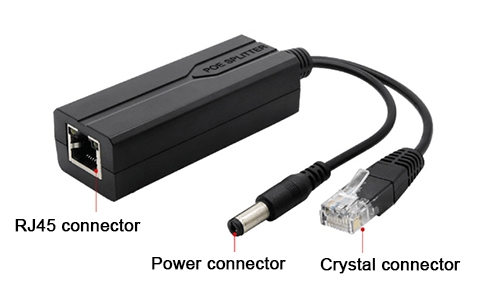

Details

PoE Output Interface
Network Input Interface
Power Interface

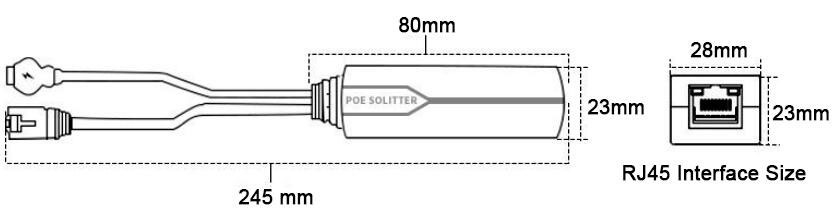

48V to 5V PoE Power Splitter Size

Size

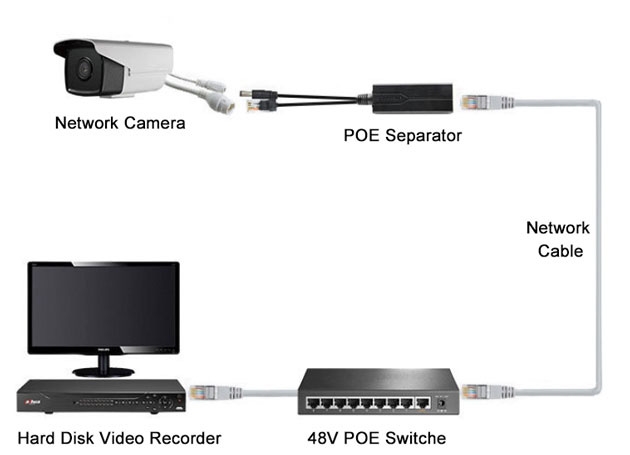

48V PoE Splitter Wiring Diagram

Wiring diagram

Specs

Model	POES-F3AL
PoE Voltage	48V-57V
Output Voltage	5V
Current Output	2.4A (max)
Power Supply	1/2(+)/3/6(-) or 4/5(+)7/8(-)
Compatible Protocol	IEEE802.3-AF/AT
Maximum Power	12W
Transmission Rate	10/100Mbps
Cable Type	Category 5 and Super Category 5+ unshielded twisted pair
Waterproof	No
Dimension	2452823 CM
Operating Temperature	-20°C~+60°C
Operating Humidity	0-90% (non-condensing)

Application

Residential Building

Business Area

Hospital

Office

FAQ

Q1: Can a PoE network splitter power multiple devices simultaneously?

Generally, a PoE power splitter is designed for a single network device. It separates the power and data in the PoE cable, outputting power through an RJ45 data interface and a DC power interface for a single device. Therefore, most PoE splitters cannot power multiple devices simultaneously. If you need to power multiple devices, you typically need to use a PoE switch or additional distribution equipment, or configure a separate PoE splitter for each device.

Q2: What is the difference between a PoE splitter and a PoE injector?

A PoE splitter adapter and a PoE injector function in opposite ways. A PoE injector adds power to a regular network cable, allowing it to transmit both power and network data simultaneously; a PoE splitter separates the power and data from the PoE cable, providing independent power output for devices that do not support PoE. Simply put, a PoE power injector "adds power," while a outdoor PoE splitter "disconnects power." They are usually used together to implement a PoE power supply system.

Q3: Can I use a PoE splitter with non-PoE devices?

Yes. The main purpose of a poe ethernet splitter is to provide power and data connectivity for network devices that do not support PoE. It converts the power in the PoE cable to the DC voltage required by the device (such as 5V, 9V, or 12V), while outputting network data through an RJ45 interface. Therefore, ordinary IP cameras, routers, wireless access points, or IoT devices can all be connected to the PoE network and work normally through a PoE splitter adapter.
