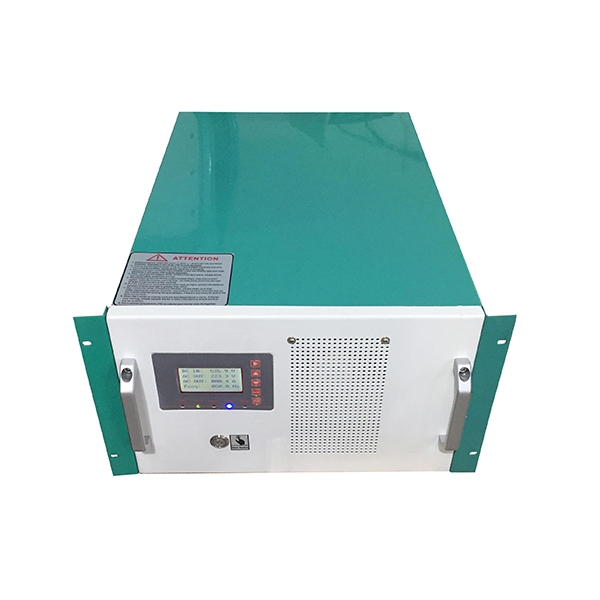

6000 Watt Marine Inverter, Single Phase 120V/220V

Q1: What do the terms "efficiency" and "conversion efficiency" mean in marine inverters?

The efficiency of a marine inverter charger typically refers to the ratio of output power to input power during the conversion of direct current (DC) to alternating current (AC), i.e., "how much electricity is actually utilized by the equipment." For example, an efficiency of 93% means that only about 7% of the energy is lost as heat during the conversion process. High-efficiency marine inverter power inverters not only reduce battery consumption and extend driving time but also reduce equipment heat generation, improve system stability and lifespan, which is especially important for marine systems that rely on batteries, solar power, or generators for power.

Q2: How to match marine power inverters with marine batteries?

When matching a marine battery charger inverter with a battery, battery voltage, battery capacity, and discharge capacity must be considered simultaneously. First, the battery voltage must match the boat inverter's DC input voltage (e.g., 12V, 24V, 48V, 96V). Second, the battery capacity should be calculated based on the total power consumption and usage time of the electrical equipment. It is generally recommended to reserve a certain margin based on theoretical needs to avoid over-discharge of the battery. Meanwhile, the battery should have sufficient instantaneous discharge capacity to meet the starting current requirements of motor-driven equipment such as air conditioners and water pumps.

Q3: Can a marine inverter charger be directly connected to a generator?

It is generally not recommended to directly connect a generator as a DC input to a boat inverter charger, as the generator output is AC. The common practice is to first charge the marine battery using a charger or inverter-charger combo unit, and then have the boat inverter draw power from the battery side to output a stable AC power. When wiring, cables that meet the current requirements should be used, and circuit breakers, fuses, and grounding protection should be installed to ensure safe system operation and stable power quality.
