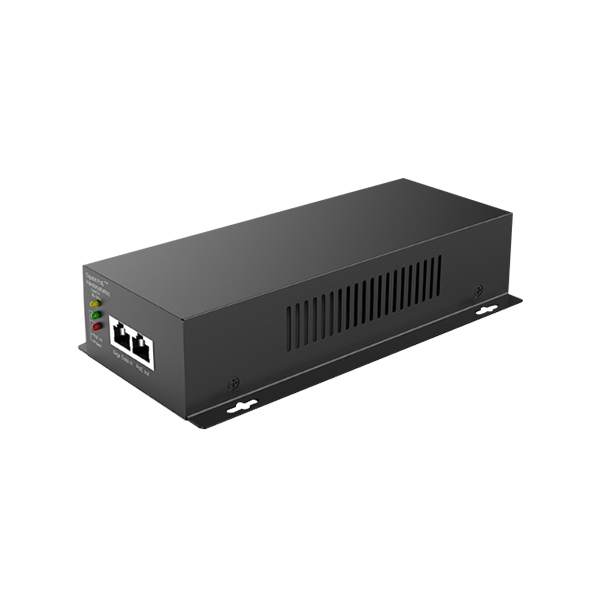

90W Gigabit PoE Injector

SKU: PH-POE-PG-90

$99.86

● 90W PoE power injector is compatible with network devices conforming to the IEEE 802.3af/at/bt. ● Supports AC 110V-240V input and DC 52V 2.88A output. ● Features automatic detection, overload protection, and short-circuit protection. ● Provides safe and reliable remote power supply while transmitting high-speed data.

Socket *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This 90W poe power injector provides stable PoE power to Ethernet devices such as wireless APs, VoIP phones, and network cameras, conforming to the IEEE 802.3af/at/bt standard. Equipped with an RJ45 interface, it enables high-speed and stable data transmission. It also features independent network signal and DC power output designs, making installation and use more flexible. This 802.3 af poe injector is suitable for surveillance projects, enterprise network deployments, and wireless coverage in hotels and shopping malls.

Feature

Wall-mounted installation, plug and play.
Adopts wide-range AC100-240V voltage to meet the power supply standards of different countries or regions.
Made of PC+ABS material, with overload and short-circuit protection.
Compatible with IEEE802.3af/at/bt protocol for device power supply requirements.
Equipped with 10/100/1000M data transmission, supporting high-speed transmission.
Suitable for powering IP network cameras, wireless APs, routers, optical modems, IoT terminals, access control systems, advertising display equipment, and small office network equipment.

Details

PoE Output Interface
Network Input Interface
Power Interface

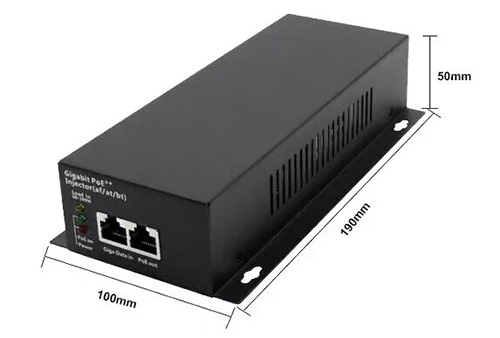

90W Gigabit PoE Injector Size

Size

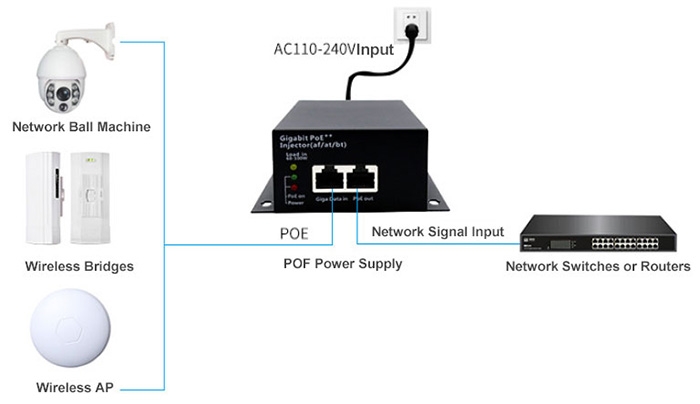

90W Gigabit PoE Injector Wiring Diagram

Wiring diagram

Specs

Model	PG-90
Input Voltage	AC110-240V
Output Voltage	DC52V/2.88A
Port Definition	1 Gigabit PoE port + 1 Gigabit RJ45 network port + 1 AC power connector
Network Protocol	Standard IEEE802.3af/at
POE Power	90W(max)
Power Supply Core	1/2(+),3/6(-), or 4/5(+),7/8(-) adaptive
Network Transmission	1/2,3/6,4/5,7/8
Transmission Medium	Cat5E, Cat6 or above (≤100m)
Dimensions	19010050 mm
Weight	0.8KG (including AC cable)
Working Temperature	-10°C~60°C

Application

Residential Building

Business Area

Hospital

Office

FAQ

Q1: What devices can a gigabit poe injector power?

Standard PoE + power injectors can power a variety of PoE-enabled network devices, such as wireless access points (APs), IP network cameras, VoIP phones, wireless bridges, and IoT devices. These devices can obtain stable power and network connectivity via Ethernet cables, without the need for a separate power adapter.

Q2: What standards do PoE power injectors support?

Standard PoE power supplies typically support protocols such as IEEE 802.3af, 802.3at, or 802.3bt. 802.3af has a maximum power output of approximately 15.4W, 802.3at (PoE+) approximately 30W, and 802.3bt (PoE++) can provide higher power outputs of 60W to 90W to meet the power needs of high-power devices.

Q3: What is the power supply distance of a PoE power supply?

PoE injector adapter can typically be transmitted over Ethernet cables up to approximately 100 meters (328 feet). If a longer power supply distance is required, PoE repeaters or extenders can be used to extend the transmission distance while maintaining stable data and power transmission.
