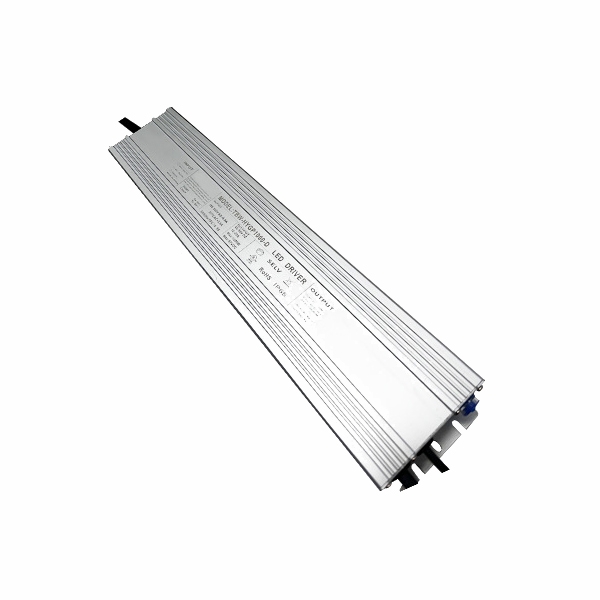

1000W Constant Voltage LED Driver, 48V

SKU: PH-CVLD-1000

$222.15

● High power 1000 watt 48V dimmable constant voltage LED driver for sale online. ● Efficiency reaches up to 96%, with UL, CE, CCC, and FCC certifications, and IP65/IP67 waterproof protection. ● Ideal for biological lighting, industrial equipment, poultry farming and light strips.

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

1000W 48 volt dimmable constant voltage LED driver for sale online. It is available with 96% high efficiency, 20A output current, 185~277V AC input voltage, IP65/67 protection class, 3-in-1 dimming (0-10V, PWM, Resistor) and UL/CE/CCC/FCC certified, used forcommercial and industrial environments to power large LED installations such as signage, architectural lighting and outdoor lighting.

Feature

1000W constant voltage LED driver features a constant voltage output design, ensuring stable voltage, maintaining uniform brightness in lighting fixtures, and extending their lifespan.
IP65/IP67 waterproof and dustproof class, ensuring long-term stable operation in outdoor and humid environments.
Supports 3 in 1 dimming (0–10V, PWM and resistor) compatible with various control systems, achieving smooth brightness adjustment.

Details

48V dimmable LED power supply allows for flexible matching with different power and type LED lighting fixtures.
Flicker-free dimming, conversion efficiency can reach over 92.5%, reducing energy consumption and heat.
Even under low-power or light-load conditions, the light remains stable and flicker-free, providing comfortable and reliable illumination.

1000W Constant Voltage LED Driver Size (Unit: mm)

LED driver size

L1	L2	L3	W1	W2	H
440	425	410	89	40	45

Specs

Output Voltage	48V
Output Current	20A
Output Power	1000W
Effciency	96%
Power Factor	0.95
Input Voltage	185-277V AC
Dimming	3-in-1 Dimming (0-10V, PWM, Resistor) (24V without Dimming Function)
Certificated	UL/CE/CCC/FCC
Waterproof Grade	IP65/IP67
Applications	Bio-Lighting, Industrial Equipment, Poultry, Led Strip Light, Landscape Lighting

Application

Bio Lighting

Constant voltage LED driver for industrial equipment

Industrial Lighting

Landscape Lighting

Poultry Lighting

FAQ

Q1: Why use a 1000W constant voltage LED driver?

1000W constant voltage LED driver is ideal for large-scale commercial and industrial LED lighting projects, reducing the number of power supplies required while delivering stable voltage for long LED runs and high power loads..

Q2: What should be considered when installing a 1000W LED driver?

When installing a 1000W LED driver, it is important to ensure adequate ventilation, proper cable sizing, and a stable input power source. These factors help maintain efficiency, safety, and long-term reliability in high-power LED systems.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Bjarne | Date: 8/25/2026 1:43 AM

Proper Solid Unit, Spot On

Fitted this 1000W driver for our workshop lighting set-up. Smooth, flicker-free dimming and stays completely cool. Handled the damp weather outside without missing a beat thanks to the IP67 rating. Absolute bargain for a 48V power supply. Does the job brilliant.
