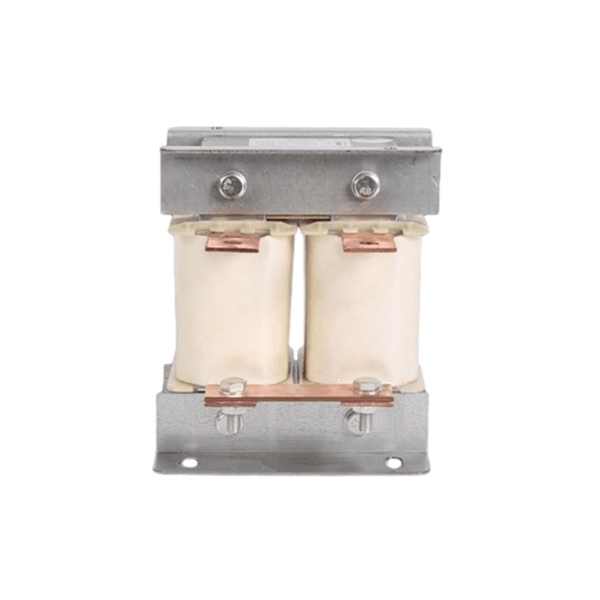

10 hp Single Phase DC Reactor, 20A

SKU: PH-DCR-10

$149.72

● 10 hp Single-phase DC reactor for inverter, copper/aluminum material optional ● Rated current 20A, 220V, 380V, 400V voltage can be customized ● Effectively smooths current and suppresses harmonics ● A solution for improving system stability in motor drives, fans, pumps, automated production lines, etc

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Single-phase DC link reactor for sale, capacity 10hp (7.5 kW), F.H insulation class, and 220V/380V/400V voltage optional. The DC reactor improves power factor and ensures the stability and reliability of the inverter system by smoothing the DC current waveform and reducing harmonics. High filtering performance and low power consumption.

Feature

Reduces voltage and ripple factor in DC lines
Effectively smooths current and suppresses harmonics
Limits current in the rectifier during short circuits
Reduces electromagnetic interference and stabilizes DC bus voltage
Provides filtering and protection
Slows down capacitor charging and discharging processes, extends capacitor life, and reduces equipment failure rate

Details

Cold rolled silicon steel sheet
Iron core wire cover
Tinned copper terminal

10 hp DC Reactor Size

Size

Specs

Model	DCL-20
Phase	1 Phase
Power Adapter	7.5 kW (10 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	20A
Inductance	1.59mH
Insulation Grade	F.H
Dimension	96125110mm (LWH)
Mounting Dimension	80*70mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	4kg
