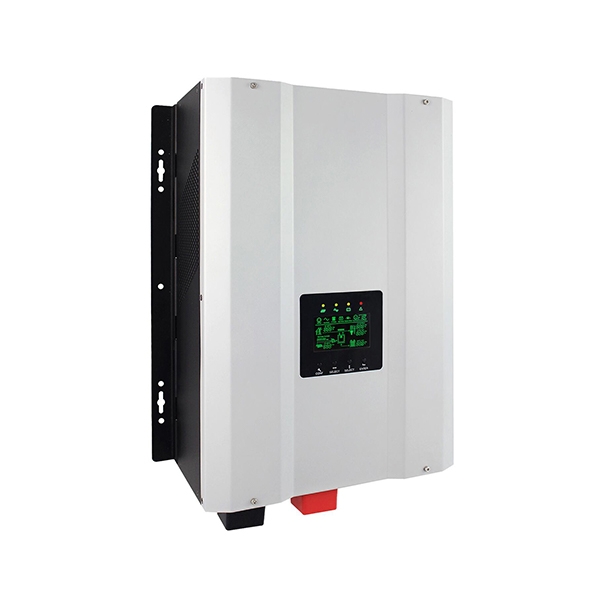

12000W Pure Sine Wave Inverter Charger 48V

SKU: PH-PI-GS12000

$3,414.17

● 12000W pure sine wave solar inverter charger, capable of handling 3 times peak power, 5-level adjustable AC charging current. ● Includes a 40A/60A MPPT solar charger with AC/DC priority modes, supporting solar charging. ● Solar power inverter adopts low-frequency converter design with overload, over-temperature, low-power, and overcharge protection. ● Suitable for most home appliances, including fans, air conditioners, refrigerators, water pumps, motors, office equipment, etc., ideal for off-grid/hybrid solar energy storage systems.

Input/Output Voltage *
Remote Control *
Input Battery Type *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

12000W hybrid inverter with solar battery charging, pure sine wave output, 3 times peak power. Built-in MPPT solar charger, supports 5-level AC charging current adjustment for efficient solar energy conversion. The solar inverter can be set to AC/DC priority mode, provides 48V DC input, and remote control function is optional. Suitable for various applications including residential, commercial, and small industrial settings. This solar inverter charger can serve as a stable and reliable backup power source and is widely used in off-grid solar systems, providing continuous and stable power support for different power environments.

Feature

12kW off-grid solar inverter, capable of handling 3 times peak power
Built-in 40A/60A MPPT solar charge controller, AC/DC priority mode adjustable
Supports 5-level adjustable AC charging current for flexible charging mode adjustment
LED/LCD display shows real-time solar capacity
Provides reliable 48V DC/AC power supply, suitable for AC and solar systems
Apply to off-grid or hybrid solar power systems, providing continuous power support for lighting, home appliances, monitoring, and communication equipment

Details

LCD Display
High-current battery interface
Remote control interface
Heat dissipation vents
Charging input protection
Inverter output protection
Built-in circuit breaker
Independent power switch

Inverter Split-Phase Output Terminal Description

Inverter charger split-phase output terminal description

Specs

Power	12000 Watt
Phase	Single phase, Split phase
AC Input
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal input Voltage	HOT-N: 120V AC, 230V AC, 240V AC
Nominal input Voltage	Split phase (HOT-HOT): 240V AC
Low Line Disconnect	180Vac±4% (Normal) or 140Vac±4% (Wide)
Low Line Re-connect	190Vac±4% (Normal) or 150Vac±4% (Wide)
High Line Disconnect	270Vac±4% (Normal) or 270Vac±4% (Wide)
High Line Re-connect	260Vac±4% (Normal) or 260Vac±4% (Wide)
Max AC input Voltage	Max 280V
Frequency	50Hz: 41-54Hz; 60Hz: 51-64Hz
AC Output
Output Voltage Waveform	Sine wave
Power Factor	1
Nominal Output Voltage (V)	HOT1-N: 120Vac ±10%rms; HOT2-N: 120Vac ±10%rms; HO1-HOT2: 240Vac ±10%rms
Output Phase Difference	HOT1-N and HOT2-N is 180°; HOT1-N and HOT1-HOT2 is 0°; HOT2-N and HOT1-HOT2 is 180°
Nominal Output Frequency (Hz)	50Hz ± 1Hz, 60Hz ± 1Hz
AC Charger
Nominal Charger Current	20A/35A/50A/70A/90A (According to the inverter model) ; adjustable 5 stages charging current;
Over charge Protection	Bat.V≥15.5VDC for 12V battery, Bat.V≥31.0VDC for 24V battery, Bat.V≥62.0VDC for 48V battery; beeps 0.5s every 1s & fault after 60s
Solar Charger
Rated Charge Current	Alternative 40A/60A
PV Input Voltage range	15VDC-40VDC for 12VDC, 30VDC-75VDC for 24VDC, 60-145VDC for 48V
Max.PV open circuit array Voltage	12V for 40VDC, 24V for 75VDC, 48V for 145VDC
Charger mode	MPPT
PV Low Voltage Re-connect	PV≥Bat.V+3V
PV Low Voltage Disconnect	PV≦Bat.V
Effificiency	≥97%
DC Input
Battery Voltage	48VDC
Low Battery Alarm	42VDC±1.2VDC
Low DC input shut & down	40VDC±1.2VDC
High DC input Alarm & Fault	64VDC±1.2VDC
Efficiency
Efficiency (Battery Mode)	≥87%
Efficiency (Line Mode)	＞98%
Transfer Time
AC to DC	20ms (max)
DC to AC	15ms (max)
System Parameter
Over-Load Protection	110%＜load＜150%, beeps 0.5s every 1s, and Fault after 60s off the output, load＞150%, beeps 0.5s every 1s, and Fault after 20s
Output Short Circuit Protection	YES
Surge Rating	1:3 (VA)
Protections	Low battery, over charging, over load, over temp
Indicators	LED+LCD Display
General Specifications
Operating Temperature Range	0℃～40℃
Stor age Temperature	-15℃～60℃
Operation humidity	5% to 95% (non-condensing)
Audible Noise	80dB max
Cooling	Forced air, variable speed fan
Dimension (LWH)	627x416x204mm
Net Weight (kg)	79kg

Application

New Energy Power

Small Electrical Appliances

Outdoor Travel

Emergency Power Supply

FAQ

Q1: How does a solar inverter charger work?

A solar charge controller inverter, through its built-in inverter module and charging management system, converts the direct current (DC) output from solar panels or batteries into stable alternating current (AC) for use in home or commercial devices. Simultaneously, the device intelligently manages battery charging and discharging, automatically switching between solar power, AC power, and battery power to ensure efficient and continuous system operation.

Q2: What is the function of a solar charge controller inverter?

A solar inverter charger converts the DC power generated by a solar system into AC power, enabling it to power common household and commercial appliances. The solar inverter charger 48v also performs power dispatching and protection functions, ensuring the safety of electrical equipment and is an indispensable core component of a solar power generation system.

Q3: How to maintain a solar inverter charger?

Daily maintenance mainly includes keeping the equipment clean and well-ventilated to prevent dust and high temperatures from affecting heat dissipation; regularly checking the wiring for tightness to prevent loosening or aging; monitoring the display screen or monitoring system's operating status and promptly handling alarm information to ensure the long-term stable and safe operation of the solar power inverter.
