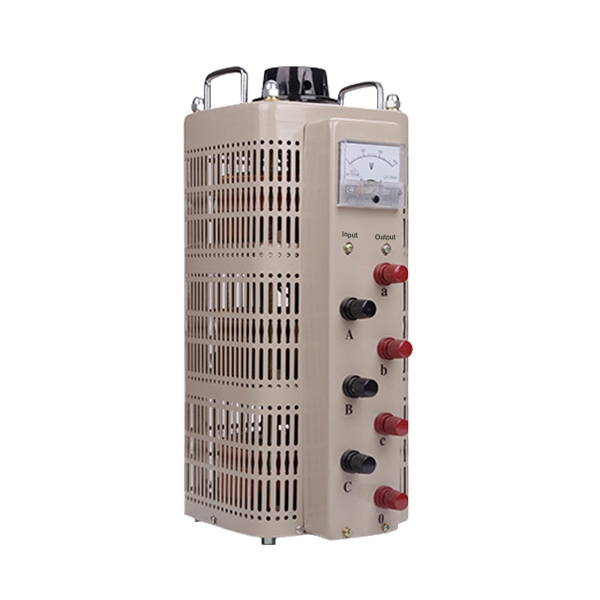

    15 kVA Variac Transformer, Three Phase

    0 review(s) | Add your review
    SKU: PH-VT-TH15K
    $1,729.86
    ● 15kVA rated capacity, and 20A rated output current. ● Output selectable 0-430V AC or 0-500V AC. 380V rated input voltage. ● Widely used in laboratories, railroad switch testing, packaging machinery, and aviation power supply. ● Supports voltage regulation, temperature control, speed control, dimming, and power control.
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    1.5 kVA Variac Transformer, Three Phase

    ● 3-phase variac transformer, 1.5 kVA capacity, available at wholesale price. ● Rated input voltage 380V; output voltage continuously adjustable from 0 to 430V. ● Max output current 2A; optimized for stable low-current precision control. ● Porous heat dissipation design keeps operating temperature in check during extended use. ● Simple, user-friendly design, easy to install and operate.
    $589.39

    3 kVA Variac Transformer, Three Phase

    ● 3-phase variac transformer, 3 kVA rated capacity. ● With an ON/OFF power switch for safe and convenient operation. ● Rated input voltage 380V; output voltage continuously adjustable from 0 to 430V. ● Rated output current 4A for stable, controlled power delivery. ● Built-in overvoltage protection safeguards connected equipment from voltage spikes.
    $948.59

    6 kVA Variac Transformer, Three Phase

    ● Three-phase variac voltage regulator, 6 kVA rated capacity, built for high-performance voltage regulation. ● Rated input voltage 380V; output voltage continuously adjustable 0~430V. ● Rated output current 8A for consistent, stable power delivery. ● Compatible with 50Hz power supply systems across diverse industrial environments. ● Suitable for a wide range of industries and power supply applications.
    $998.78

    9 kVA Variac Transformer, Three Phase

    ● 3-phase variac transformer, 9 kVA rated capacity. ● Rated input voltage 380V; output voltage selectable from 0–430V or 0–500V to suit different application needs. ● Metal dashboard with adjustable voltage control. ● Built-in purple copper coil for superior conductivity and enhanced operational safety. ● Reliable variable transformer designed for stable, long-term use across diverse power supply environments.
    $1,123.68

    20 kVA Variac Transformer, Three Phase

    ● 20kVA rated capacity. 27A rated full bias current. ● Output selectable 0-430V AC or 0-500V AC. 380V rated input voltage. ● Integrated heat sink holes for improved internal heat dissipation, increasing service life. ● High-quality copper transformer coil. Sturdy and durable build. ● Suitable for laboratories, factory equipment, foam cutting, and household electricity.
    $2,156.79

    30 kVA Variac Transformer, Three Phase

    ● Three-phase variac transformer, 30 kVA rated capacity, 40A rated current for heavy-load environments. ● Rated input voltage 380V; output voltage selectable from 0–430V or 0–500V. ● Metal shell construction with flame-retardant properties for enhanced safety and durability. ● Built-in copper wire for reliable conductivity and long-term operational stability. ● Supports voltage regulation, temperature control, speed regulation, dimming, and power control.
    $3,254.89
    Overview

    Designed for laboratories and system-level industrial operations, this 20A three-phase adjustable AC transformer ensures smooth and continuous voltage regulation. With a rated output current of 20A and a selectable output voltage range of 0ā€“430V or 0ā€“500V, this industrial variable autotransformer provides flexible voltage control for demanding applications. Its high-efficiency copper winding structure improves conductivity and supports reliable performance during prolonged operation. It also enables voltage regulation, temperature control, motor speed adjustment, light dimming, and general power control applications.

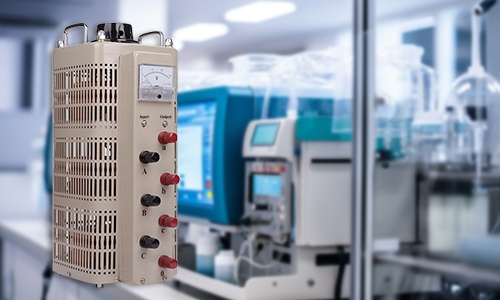

    15 kVA three-phase variac transformer feature

    Feature

    • Three-Phase Industrial Power Delivery: True three-phase variable transformer design for balanced power across all phases.
    • 0-430V/500V Output Flexibility: Selectable output voltage ranges accommodate diverse international standards and specialized equipment requirements.
    • Specialized Application Engineering: Specifically configured for demanding environments, including research laboratories requiring precise three-phase AC, and so on.
    • Robust Industrial Construction: Built for continuous duty in industrial power supply sites. High-quality materials ensure long-term reliability under heavy use.

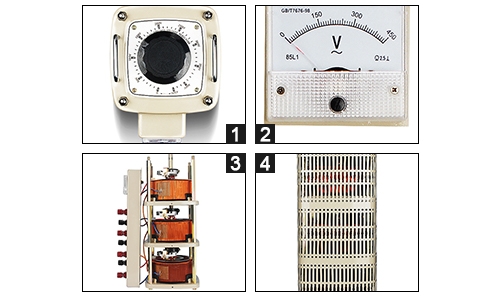

    Details

    1. Wheel-Axis Design: Precisely aligned and finely calibrated for smooth, ergonomic operation.
    2. Pointer Meter: Clear scale graduations for accurate, intuitive readings at a glance.
    3. Pure Copper Coil: Superior conductivity, enhanced durability, and extended service life.
    4. Porous Heat Dissipation Housing: Effective multi-vent cooling prevents overheating and protects the transformer during continuous operation.
    15 kVA three-phase variac transformer details

    15 kVA Three-phase Variac Transformer Wiring Diagram

    15 kVA three-phase variac transformer wiring diagram

    Specs
    Phase 3-Phase
    Rated Power 15 kVA
    Input Voltage 380V
    Output Voltage 0~430V; 0~500V
    Frequency 50/60 Hz
    Rated Full Offset Current 20A
    Insulation Resistance ā‰„5 MĪ©
    Pressure Resistance 2000 V/1min
    Certificate CE
    Dimension (300Ɨ240Ɨ580) mm
    Weight 49 kg
    Application
    Variac voltage regulator for machine speed control

    Machine Speed Control

    Variac voltage regulator for mechanical voltage boost

    Mechanical Voltage Boost

    Variac voltage regulator for current control

    Current Control

    Variac voltage regulator for withstand voltage test

    Withstand Voltage Test

    FAQ

    Q1: What industries and applications is this 15 kVA three-phase variac transformer designed for?

    This 3-phase variable transformer is widely used in laboratories, railroad switch testing, packaging machinery, and aviation power supply voltage regulation. Its multi-function control capabilities ā€” covering voltage regulation, temperature control, speed control, dimming, and power control ā€” also make it suitable for a broad range of additional industrial and specialty power supply environments.

    Q2: What output voltage ranges are available on this 15 kVA variac voltage regulator?

    This three-phase variac transformer offers selectable output voltage ranges of 0ā€“430V or 0ā€“500V, both from a 380V-rated input with a 20A rated current. This dual-range flexibility allows it to be configured for varying power supply requirements across different professional and industrial applications.
