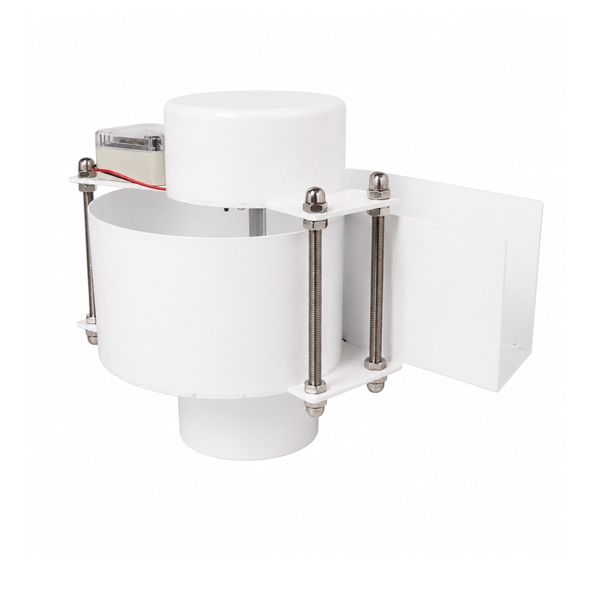

150W Low Head Hydro Turbine, 12V-24V

The 150W low-head hydro turbine is a compact small-scale water power solution designed for streams, small rivers, and self-flow water-pipe systems. Its axial-flow impeller converts flowing water into mechanical energy, while the efficient coreless disc generator delivers stable DC power with fast startup and low resistance. The built-in rectifier helps prevent reverse current and includes an indicator light that turns on during power generation. Featuring a 5.5 × 2.1 mm DC output port, a smooth water outlet, and a corrosion-resistant baked coating, this lightweight turbine is easy to install, quiet in operation, and suitable for long-term outdoor use in wet environments.

Feature

• Low-Head Power Generation: Designed for small streams, rivers, and water-pipe flow with low head and low water flow requirements.
• Efficient Coreless Generator: Features a coreless disc generator with low resistance, fast startup, and stable power output.
• High-Efficiency Axial-Flow Turbine: The impeller captures water energy efficiently for reliable small-scale hydro power generation.
• Compact and Easy to Install: Lightweight structure allows convenient installation in stream channels or simple water diversion systems.
• Durable for Outdoor Use: Protective baked coating helps resist corrosion and supports long-term operation in wet environments.
• Quiet and Flexible Operation: Runs quietly and can use flowing water from creeks, rivers, self-flow pipes, or diverted water sources.

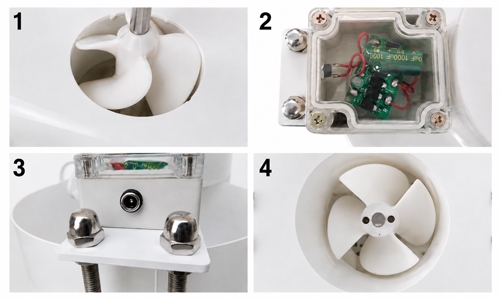

Details

1. Generator Impeller: Flowing water spins the impeller, converting water energy into mechanical power.
2. Built-In Rectifier with Indicator Light: The rectifier helps prevent reverse current, while the indicator lights up during power generation.
3. DC Output Port: 5.5 × 2.1 mm DC output connector for convenient power delivery.
4. Water Outlet: Guides water smoothly out of the turbine after it drives the impeller.

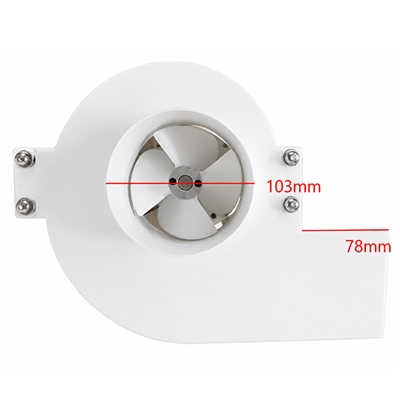

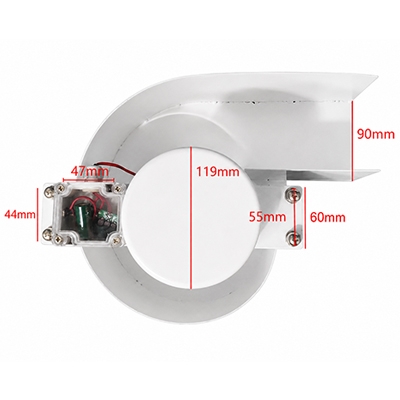

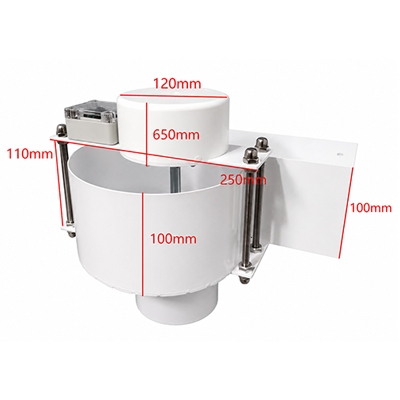

Hydro Turbine Size (unit: mm)







Hydro Turbine Structure

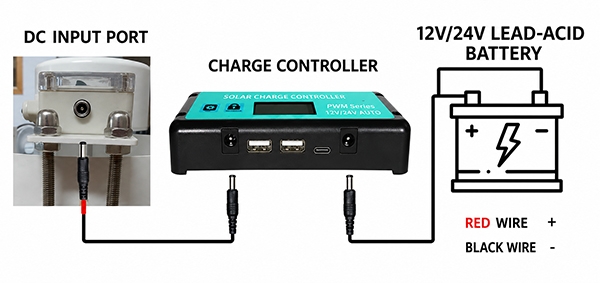

Wiring Diagram

Working Principle

How the low head axial-flow hydro turbine works? This axial-flow hydro turbine generator converts the energy of flowing water into electrical power. It is designed for low-head water sources such as small streams, creeks, rivers, and diverted water channels. As water flows through the turbine housing, it drives the impeller and rotates the generator to produce usable DC electricity.

1. Water Enters the Turbine: Water flows into the turbine through the inlet channel and is guided toward the impeller.
2. Impeller Rotates: The moving water pushes against the curved impeller blades, converting water flow energy into mechanical rotation.
3. Drive Shaft Transfers Power: As the impeller rotates, the connected shaft turns at the same time and transfers mechanical energy to the generator.
4. Generator Produces Electricity: The rotating shaft drives the coreless disc generator, where mechanical energy is converted into electrical energy.
5. DC Power Output: The generated electricity is delivered through the DC output port and can be connected to a compatible charge controller, battery, or DC load.
