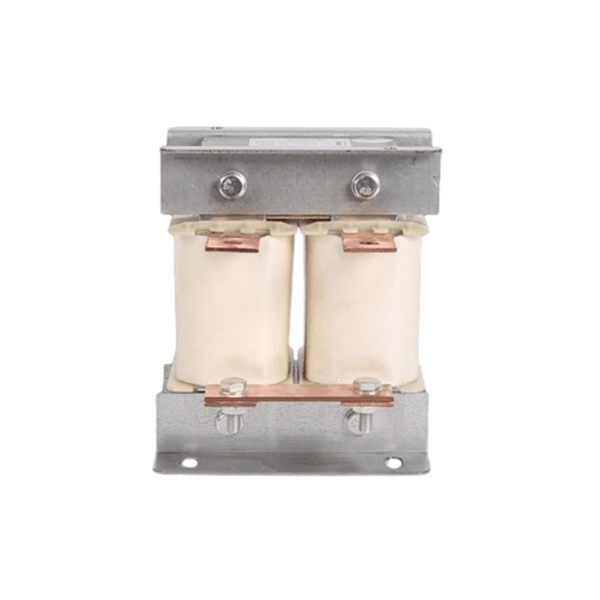

15 hp Single Phase DC Reactor, 30A

SKU: PH-DCR-15

$169.32

● Single-phase DC reactor, capacity 15 hp (11 kW), rated current 30A. ● IP00 protection rating, voltage selectable 220V/380V/400V. ● Adopt copper/aluminum for strong shock resistance. ● Suppresses harmonic, reduces electromagnetic interference, and improves power quality in VFD, photovoltaic inverters, and energy storage systems.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

15 hp DC link reactor, inductance 1.06mH, rated current 30A, F.H insulation class. With copper/aluminum material, robust durability and low energy consumption. DC link chokes suppress harmonics, reduce current fluctuations, and limit inrush current in rectifier or inverter systems. Widely used in VFD systems, photovoltaic power generation systems, industrial DC power supply systems, and motor drive systems.

Feature

Single-phase structure, using high-quality low-loss silicon steel sheets.
Used on the DC side of frequency converters, it maintains continuous rectified current and reduces current ripple.
Improves the input power factor and suppresses harmonics generated by the converter.
Reduces the ripple factor and limits the current in the rectifier during a short circuit.
Environmentally friendly, energy-saving, and low noise.

Details

Cold rolled silicon steel sheet
Iron core wire cover
Tinned copper terminal

15 hp DC Reactor Size

Size

Specs

Model	DCL-30
Phase	1 Phase
Power Adapter	11 kW (15 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	30A
Inductance	1.06mH
Insulation Grade	F.H
Dimension	120115130mm (LWH)
Mounting Dimension	100*65mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	4kg

Application

Power Grid

Transportation

Industrial Equipment

Commerce

FAQ

Q1: Will the DC line reactor lower the system voltage?

No. DC reactor for vfd primarily smooths the DC bus current and suppresses harmonics; it does not directly lower the input/output voltage. During normal operation, there is only a tiny, negligible DC resistance voltage drop.

Q2: Where is the DC Reactor installed in the inverter system?

DC smoothing reactor is installed inside the inverter, in the middle of the DC bus, specifically after the three-phase rectifier bridge and before the inverter module (IGBT).
