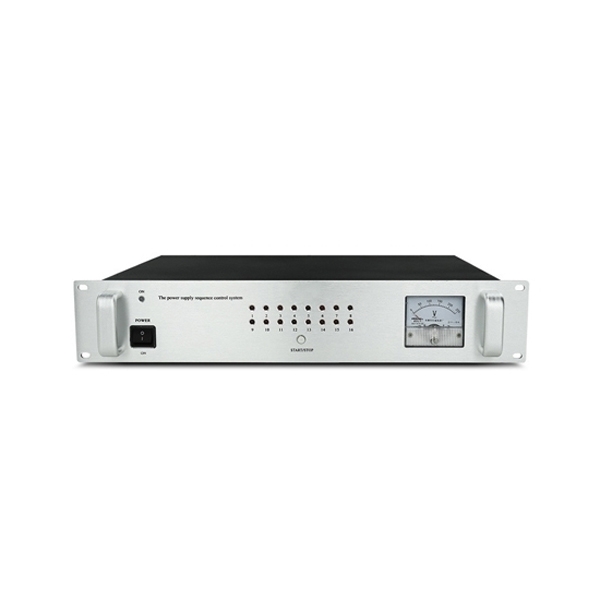

    16 Outlet Power Supply Sequencer, AC 240V

    1 review(s) | Add your review
    SKU: PH-PS-3030
    $314.92
    ● Provides manual sequential control over 16 outlets, powering devices on and off in a 1-second interval. ● Offers manual override buttons for direct system control. ● Built with comprehensive protection, including safeguards against overload, over-current, over-voltage, and short-circuit. ● Delivers robust power handling with a total system capacity of 6KVA.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    8 Outlet Digital Power Sequencer for Audio

    ● Eight individually sequenced outlets turn on/off in order to prevent damaging power surges to your sensitive audio equipment. ● Features professional-grade noise filtering circuitry to minimize electromagnetic interference for cleaner sound output. ● Built with a clear LCD screen that displays real-time voltage, allowing you to monitor power stability at a glance. ● Constructed with pure phosphor copper outlets and flame-retardant materials for maximum safety and durability.
    $114.46

    8 Outlet Power Sequencer with Remote, 6000W

    ● 8-channel sequencer with a 1.5-second delay on each outlet. ● 6000W power capacity, voltage input range from 110V to 240V. ● Infrared remote control with a receiving extension cable. ● Flame-retardant shell, phosphor bronze universal sockets, and a memory switch for enhanced safety and reliability.
    $122.31

    10 Outlet Power Sequencer Controller, 5500W

    ● Intelligent sequential control powers equipment to prevent damaging current surges. ● Features a clear digital display and independent manual switches for each outlet. ● Built with comprehensive electrical protections for your equipment. ● High 5500W total capacity.
    $125.08

    16 Outlet Power Sequencer Controller, WiFi-Enabled

    ● Intelligent WiFi remote control allows centralized management from a computer. ● 16 independent outlets with 2000W per channel, support simultaneous operation of multiple devices. ● Built-in dual protection against short circuits and overcurrent ensures safety, while phosphor copper sockets guarantee durability. ● Features a large LCD for real-time voltage monitoring and supports RS232/RJ45 port expansion.
    $375.97

    8U Rack Mount Power Sequencer, 7000W

    ● Universal phosphor bronze sockets for excellent conductivity and a long service life. ● Built with sequential logic and a high-quality relay. ● Digital display for real-time voltage monitoring and includes 2 USB charging ports. ● Rack mounting with optional matching racks equipment from 1/2U to 8U.
    $276.15
    Overview

    This 16 outlet power supply sequencer is a fundamental solution for managing and protecting multi-device electronic systems. By systematically controlling the power-up and shutdown sequence of connected equipment, it effectively prevents damaging electrical surges that can occur when all devices start simultaneously. Designed for reliability, it features straightforward manual controls and an emergency start function, providing both automated protection and hands-on operational flexibility. It is an essential component for ensuring the longevity and safe operation of professional installations in environments such as sound studios, performance stages, and equipment racks.

    16 outlet power supply sequencer feature

    Feature

    • Sequential Outlet Management: Systematically controls 16 outlets with a set 1-second delay between each, protecting sensitive equipment from harmful inrush currents during startup and shutdown.
    • Manual Control & Emergency Start: Equipped with manual control buttons for direct power management and a dedicated emergency start interface for reliable, immediate system activation when needed.
    • Multi-Layer Safety Protection: Integrates comprehensive safety features including overload, over-current, over-voltage, and short-circuit protection to safeguard all connected devices.
    • High-Capacity Power Handling: Supports a substantial total system capacity of 6KVA, making power supply sequencer capable of powering demanding professional audio, visual, and broadcast equipment setups.

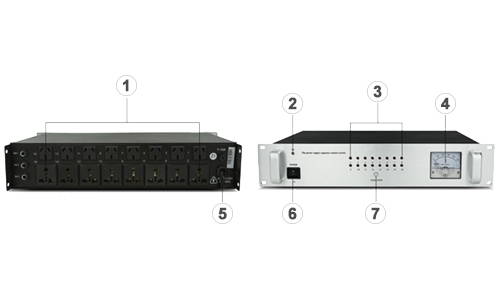

    Details

    1. 16 Outlet Power Output Sockets: Provides 16 controlled power outlets for connecting devices that require sequential power supply.
    2. Power Switch: The main physical switch for the entire unit, used to power the device on or off.
    3. 1-16 Power Output Indicator Lights: Corresponding to the 16 output sockets, these lights visually indicate the power status of each channel.
    4. Voltmeter: Monitors the input voltage in real time, allowing you to check the current supply voltage.
    5. 220V AC Voltage Input: The power input port for the power sequencer, connecting to standard mains electricity.
    6. Power Indicator Light: Shows whether the entire device is powered on.
    7. Turn On/Off Button: Controls the 16 channels to power on/off in a preset sequence, enabling orderly power supply and protection for connected equipment.
    16 outlet power supply sequencer details

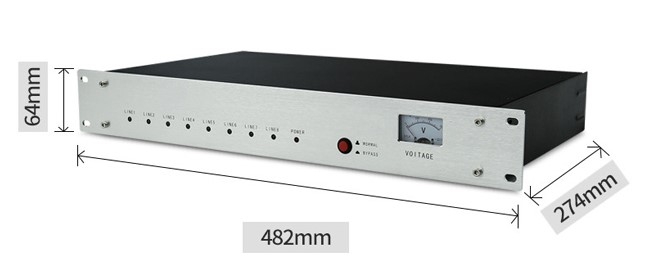

    Dimension (unit: mm)

    16 outlet power supply sequencer demension

    Specs
    Power Supply AC 220V~240V / 50~60Hz
    Number of Outlets 16 Outlets
    Single Circuit Capacity 3KVA
    Total System Capacity 6KVA
    Sequential Time Interval 1 Second
    Protection AC Fuse
    Product Dimensions 485mm * 413mm * 90mm
    Net Weight 7.3KG
    Application
    Home Theater

    Home Theater

    KTV Booth

    KTV Booth

    Multimedia Classroom

    Multimedia Classroom

    Recording Studio

    Recording Studio

    FAQ

    Q1: What is the main purpose of a power sequencer like this?
    Its primary purpose is to protect electronic equipment from damage caused by sudden power surges. It does this by turning multiple power sequencer on and off in a set sequence (one after another) instead of all at once, which is especially important for complex systems like professional audio setups.

    Q2: Can I control the outlets individually, or do they only work in sequence?
    This model is designed for sequential operation with a fixed 1-second delay between outlets. For individual outlet control, you would need to consider a different model that offers independent switching for each channel.

    Q3: What should I check before installing 16 Outlet power supply sequencer?
    Before installation, you should confirm that your local mains power voltage matches the sequencer's input range (220V-240V). It is also crucial to plan your device connections so that the equipment with the highest power draw is plugged into the last outlet in the sequence for optimal performance.
