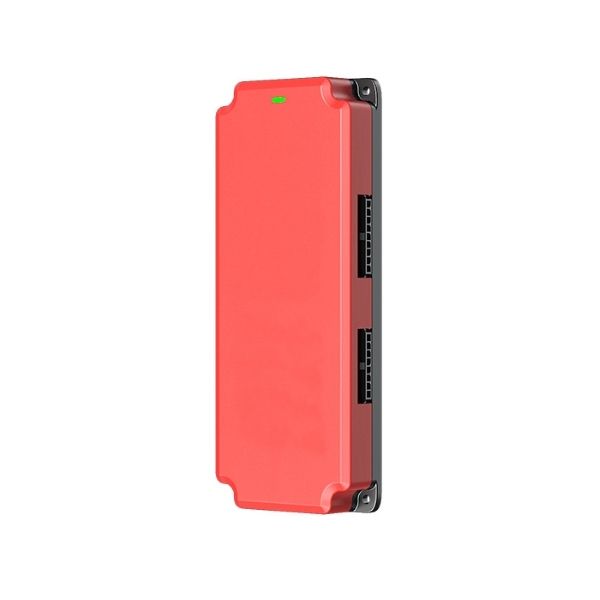

16S 5A Ternary Lithium/LiFePO4 Battery Balancer

16S ternary lithium battery balancer is a must-have upgrade for your lithium battery setup, designed to connect 16 series cells with a powerful 5A balancing current. It seamlessly integrates with your existing BMS to deliver industry-leading voltage equalization, ensuring your lithium-ion or LiPo battery pack operates at peak performance. This is a great component that not only extends battery lifespan but also maximizes energy efficiency—giving you the reliability and performance you need, without breaking the bank.

Feature

• Safe Energy-transfer Balancing: Features an energy-transfer balancing design that operates with low power consumption and minimal heat generation, delivering high safety and allowing for permanent, worry-free connection to your battery pack.

• Fast, Accurate & Stable Performance: Efficiently equalizes cell voltage differences to significantly boost overall battery performance, ensuring reliable power delivery.

• Universal Compatibility: Works seamlessly with both ternary lithium and lithium iron phosphate battery packs, offering flexible use across different battery chemistries.

Details

1. Pre-positioned Screw Holes: Ready-to-install screw holes built right in, so you can mount it in minutes without extra tools or modifications.

2. Error-proof Snap-fit Cable: The error-proof design eliminates incorrect connections entirely, while the snap-fit locking mechanism ensures a secure hold that won't loosen, even under harsh vibration or rough use.



16S 5A Battery Balancer Dimension

16S 5A Battery Balancer Structure

16S 5A Battery Balancer Wiring Diagram

Notes: Please solder and inspect the cable harness independently first. Only after confirming there are no errors should you plug in the balancing module.

1. Solder the Cable Harness: Start connecting the cable harness from the main negative terminal B-. Then, connect the second black wire (first red wire) to the positive terminal of the first battery string, and continue connecting to the positive terminals of each subsequent battery string in sequence, until the last red wire is connected to the main positive terminal B+.
2. Measure the Voltage: After connecting the entire cable harness, use a multimeter to check that the voltage of each string and the total voltage are within the normal range (3.0~4.15V for ternary lithium batteries, 2.5~3.6V for LiFePO4 batteries). If the voltage is abnormal, check for soldering issues such as cold solder joints, false soldering, or uneven solder points. Only after confirming the voltage is normal can you plug in the active balancing module.
3. Start Using: Active balancing module will activate automatically when powered on. If the cable harness becomes disconnected, you will need to power it off and on again to reactivate. The module will automatically start balancing when the voltage of any battery string is ≥3.1+0.1V and stop when it drops to ≤3.0+0.1V. The green indicator light will be on when balancing is active and off when it is inactive.
