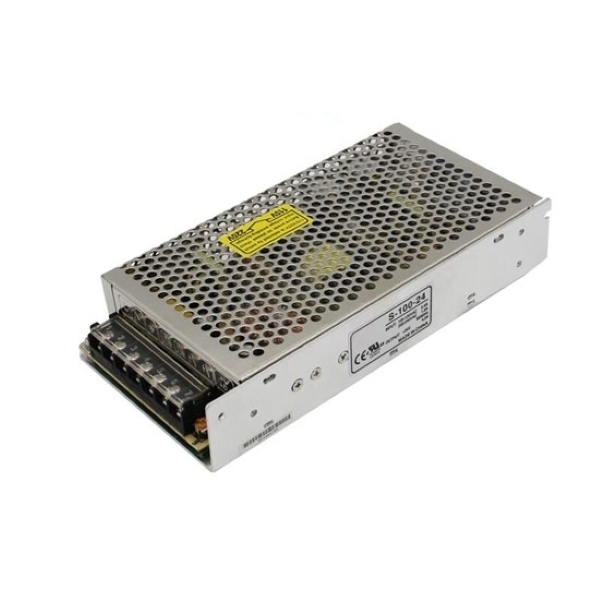

24V 4A 100W SMPS Switching Power Supply

Feature

• Stringent Quality Assurance: 100% full load burn-in test ensures every unit meets performance and durability standards before delivery, minimizing field failures.
• Reliable Protection: Built-in short circuit and overload protection safeguards both the power supply and connected equipment from damage, enhancing operational safety.
• Flexible Input: Universal AC input range selectable by a switch, ensuring compatibility with global power systems and simplifying deployment across different regions.

Details

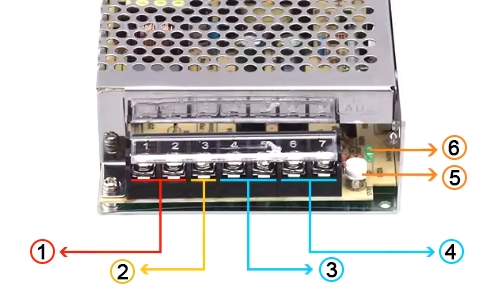

1. 220V Input: Accepts standard 220V AC input for broad compatibility.
2. Ground Wire: Dedicated terminal for safe, compliant electrical grounding.
3. Output Positive Terminal: Clearly labeled for secure positive load connections.
4. Output Negative Terminal: Clearly labeled for secure negative load connections.
5. Voltage Regulation: Adjustable for precise output voltage tuning.
6. Indicator Light: Power-on LED for instant operational status confirmation.

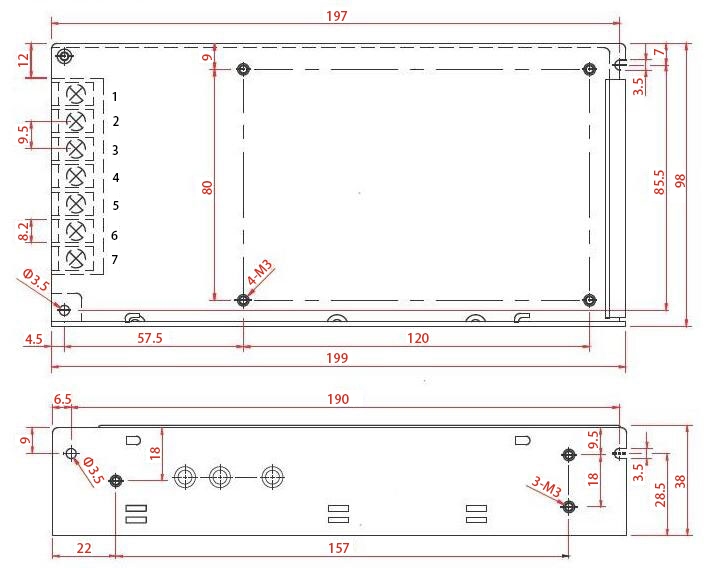

Dimension (Unit: mm)

Application

Household Appliances

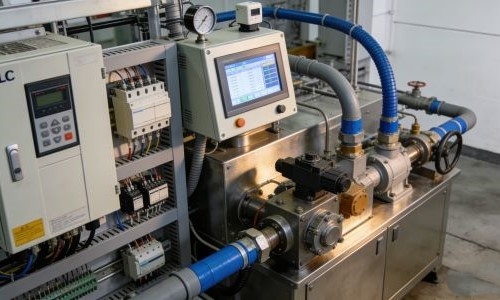

Factory Equipment

Monitoring Equipment

Power Tools

Q1: What are the operating modes and output voltage modes of a switching power supply?

A switching power supply features three operating modes for control: fixed frequency with fixed pulse width modulation, adjustable frequency and adjustable pulse width, and fixed frequency with adjustable pulse width. The fixed frequency and fixed pulse width mode is typically applied in DC/AC inversion or DC/DC voltage conversion, while the other two modes are used in switching voltage regulators. It also offers three voltage output modes: direct output, average output, and amplitude output, where direct output suits DC/AC inversion or DC/DC conversion, and average and amplitude outputs serve switching voltage regulator applications.

Q2: How are switching power supplies classified by circuit connection and structure?

Switching power supplies can be divided into series, parallel, and transformer types based on their circuit connection methods. Transformer-type switching power supplies are further categorized into push-pull, half-bridge, and full-bridge types; according to transformer excitation and voltage output phases, they can also be classified as forward, flyback, single-ended, and double-ended types, with additional classifications available based on specific application purposes.
