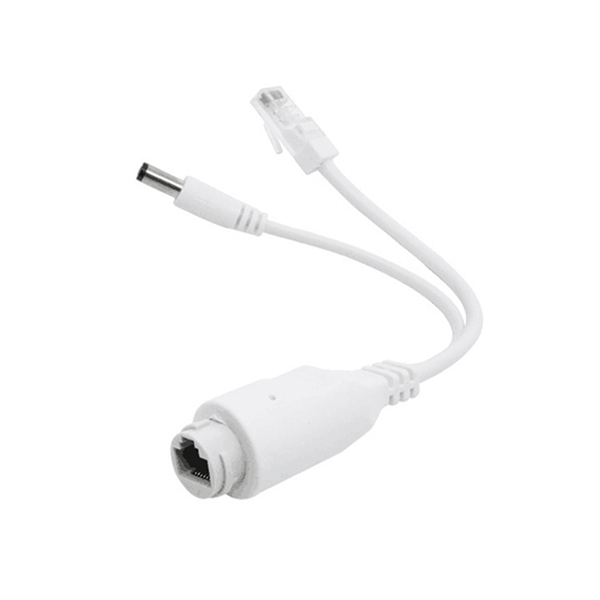

24V to 12V Waterproof PoE Splitter

SKU: PH-POES-05AFS

$46.89

● The PoE splitter converts 24V to 12V, providing a stable output voltage. ● Supports transmission rates of 10/100Mbps, ensuring a stable and uninterrupted network connection. ● Made of PVC material, features a waterproof design. ● Widely used for DC power supply in surveillance systems, wireless network equipment, IoT devices, and network communication systems.

Socket *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The 24V to 12V poe power splitter is made of waterproof PVC material, which is flame-retardant and oxidation-resistant. It features power outage, voltage, and circuit isolation protection, and a transmission rate of up to 10/100Mbps, ensuring smooth network signal transmission. The poe splitter 12v is widely used in smart access control, smart home devices, IP network broadcasting systems, and IoT device power supply.

Feature

Made of PVC, it possesses excellent flame retardant and oxidation-resistant properties.
Supports a stable transmission distance of up to 100 meters, ensuring smooth transmission of monitoring images and network data.
Effectively reduces signal interference, ensuring stable network connections and reducing the likelihood of disconnections.
Built-in power outage protection, voltage protection, and circuit isolation protection effectively protect the safe operation of equipment and network systems.
Enables long-distance power supply and data transmission, simplifying cabling and reducing installation costs.
Widely used in outdoor power supply for network monitoring systems, wireless access points and network communication equipment, smart access control systems, smart home systems, smart city and traffic monitoring equipment.

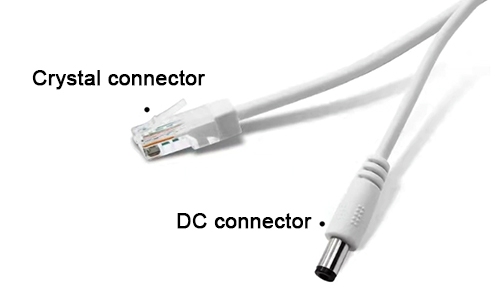

Details

PoE Output Interface
Network Input Interface
Power Interface

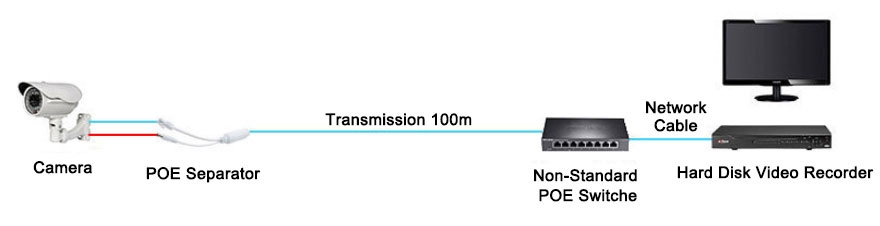

24V Waterproof PoE Splitter Wiring Diagram

Wiring diagram

Specs

Model	POES-05AFS
PoE Voltage	24V
Output Voltage	12V
Current Output	2A (max)
Power Supply	4/5(+)/7/8(-)
Transmission Rate	10/100Mbps
Cable Type	Category 5 and Super Category 5+ unshielded twisted pair
Waterproof	Yes
Dimension	2452823 CM
Operating Temperature	-20°C~+60°C
Operating Humidity	0-90% (non-condensing)

Application

Residential Building

Business Area

Hospital

Office

FAQ

Q1: What is a PoE splitter?

A poe power splitter is a network device used to separate the power and data transmitted simultaneously in a PoE network cable into two independent outputs. It receives the PoE signal through an RJ45 interface, then continues data transmission through the network cable, while simultaneously outputting DC power to power non-PoE devices.

Q2: How does a PoE splitter work?

A outdoor poe splitter connects to a PoE switch or PoE injector, receiving power and data through an Ethernet cable. Internal circuitry then separates the two. Data continues transmission through the RJ45 interface, while power is output to devices such as IP cameras or wireless access points (APs) through the DC interface.

Q3: When is a PoE splitter needed?

A poe splitter adapter is needed when network devices do not support PoE power supply but require a PoE network. For example, ordinary IP cameras, wireless access points, or network terminal devices can obtain power from a PoE network through a PoE splitter adapter.
