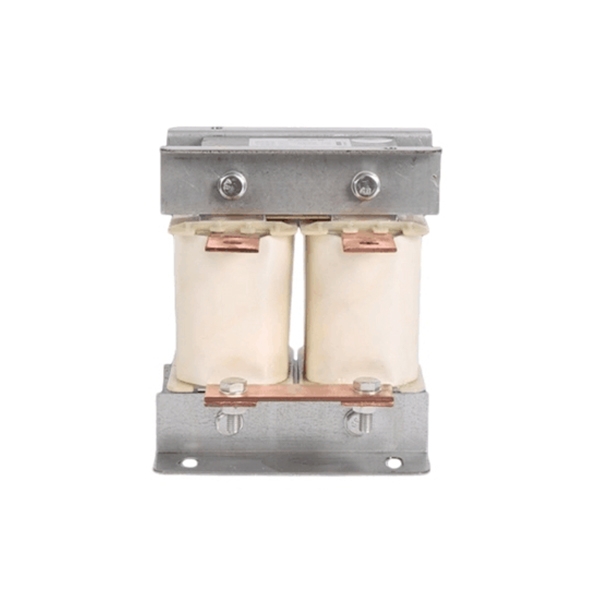

25 hp Single Phase DC Reactor, 50A

SKU: PH-DCR-25

$277.06

● 25 hp DC reactor, 0.635mH inductance, single-phase structure. ● Rated current 50A, high-strength pressure-resistant iron clamps. ● Energy-saving, low-consumption, robust and durable. ● Reduces current ripple and limits inrush current to improve DC power quality.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Single-phase DC link reactor with a rated current of 50A, low-energy-consumption design, core made of low-loss silicon steel sheets, strong impact resistance. 220V/380V/400V voltage selectable, F.H insulation class, safe and reliable. The DC reactor for vfd acts as an inductor for DC power, limiting current, reducing DC ripple, and suppressing DC harmonics. Widely used in VFD DC buses, rectifiers, and DC power systems.

Feature

Reduces DC bus ripple for more stable DC voltage.
Limits inrush current, protecting rectifiers and DC capacitors during startup.
Suppresses harmonics, reducing high-frequency harmonics on the DC bus.
Extends the lifespan of capacitors and inverter components, improving reliability.

Details

Cold rolled silicon steel sheet
Iron core wire cover
Tinned copper terminal

25 hp DC Reactor Size

Size

Specs

Model	DCL-50
Phase	1 Phase
Power Adapter	18 kW (25 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	50A
Inductance	0.635mH
Insulation Grade	F.H
Dimension	132125140mm (LWH)
Mounting Dimension	110*75mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	9.5kg

Application

Power Grid

Transportation

Industrial Equipment

Commerce

FAQ

Q1: What is a DC reactor in a frequency converter?

A DC link choke in a frequency converter is an inductive element installed between the rectifier and the DC bus. Its main functions are to smooth DC current, suppress harmonics, limit inrush current, and protect the DC bus capacitor and rectifier components, thereby improving the stability and lifespan of the frequency converter system.

Q2: Does a DC reactor lower the system voltage?

A DC smoothing reactor generally does not significantly lower the system voltage. It is not a device used to change the voltage, but rather to limit current changes through its inductive characteristics. In actual operation, due to the influence of coil resistance and inductance, a certain voltage drop will occur, but this drop is usually small and will not affect the normal operation of the system within the normal design range. In other words, the main function of a DC reactor for inverter is to smooth current and suppress harmonics, not to reduce voltage.
