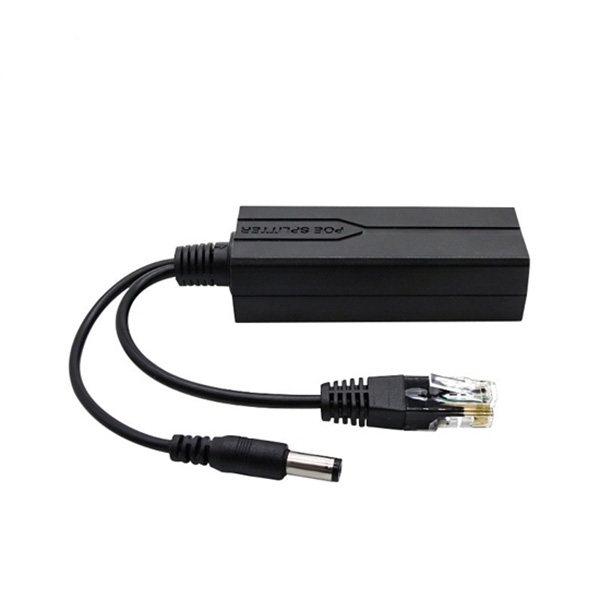

48V to 5V PoE Power Splitter

Q1: How to choose a suitable poe ethernet splitter?

Several key factors need to be considered when choosing a PoE splitter. First, PoE standard compatibility is crucial. Ensure the poe power splitter supports standards such as IEEE 802.3af, 802.3at, or 802.3bt to match the PoE switch or PoE power supply used. Second, select the appropriate output voltage and power based on the device requirements. Common output voltages include 5V, 9V, 12V, or 24V DC. Also, confirm that the splitter's maximum output power meets the power consumption requirements of the end devices. Choose products with overload, overvoltage, and short-circuit protection to ensure safe and stable operation.

Q2: Where should a outdoor poe splitter be installed?

IP camera splitters are typically installed near the end devices, i.e., next to network devices that require power but do not support PoE. The PoE switch or PoE injector in the network transmits power and data to the poe camera splitter via a network cable. The splitter then outputs an RJ45 data interface and a DC power interface, which are connected to the network port and power port of the device, respectively. This installation method reduces the need for power adapters and simplifies cabling.

Q3: Which devices can use a network poe splitter?

PoE splitter adapters are suitable for various devices that do not support PoE power supply but require network connectivity. Common applications include standard IP network cameras, wireless access points (APs), routers, small network switches, Raspberry Pis, IoT devices, and some network terminal devices. By using a mini PoE splitter, these devices can obtain both network connectivity and power supply through a single network cable, thereby increasing installation flexibility and reducing cabling costs.
