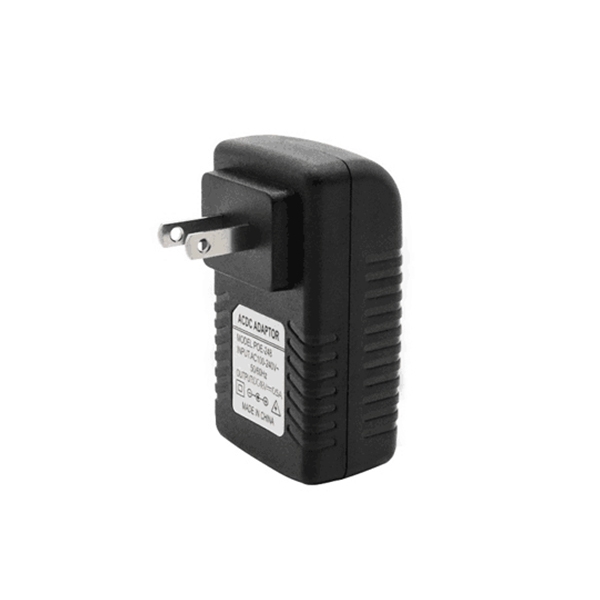

48V Portable PoE Injector Adapter

Q1: What is a passive PoE power injector?

A passive PoE power supply is a device that transmits both power and network data over a network cable. It combines DC power with Ethernet data, providing power and data connectivity to remote network devices through a single cable. Unlike standdard poe power adapter, passive PoE does not have automatic detection or power negotiation capabilities; instead, it directly outputs a fixed voltage to power devices.

Q2: What are the differences between passive PoE and standard PoE?

Standard poe+ injector comply with protocols such as IEEE 802.3af/at/bt. Before supplying power, they automatically detect devices and negotiate the required power, ensuring safe and stable power supply. Passive poe injector, however, does not perform device identification or voltage negotiation and continuously outputs a fixed voltage. Therefore, it is essential to ensure that the device supports the corresponding supply voltage during use.

Q3: What voltage does a passive poe power injector typically use?

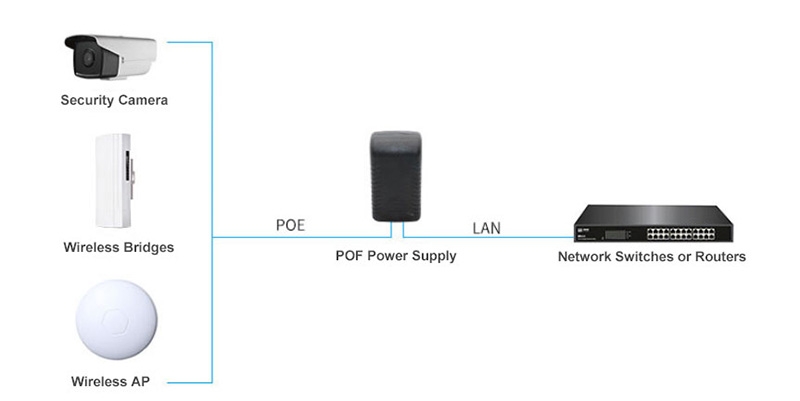

Passive PoE power supplies typically use a fixed DC voltage, such as 12V, 24V, or 48V, with 24V and 48V being the most common. These voltages can power devices such as wireless access points (APs), wireless bridges, IP cameras, or outdoor CPEs via network cables, and are widely used in network coverage, security monitoring, and wireless communication systems.
