    3 Phase AC Line Reactor, 50 HP Input

    0 review(s) | Add your review
    SKU: PH-ILR-037
    $505.84
    ● Supports 3-phase input, 37kW power, with 1.5x overload protection for 60 seconds. ● Works with 220V–480V voltages and 50/60Hz frequencies to match global VFD systems. ● Offers optional aluminum/copper winding materials to meet different application needs. ● Operates reliably in temperatures from -25°C to +45°C and altitudes up to 2000m.
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    3 Phase AC Line Reactor, 30 HP Input

    ● Supports 30 hp (22 kW) VFD systems with 60A rated current, ideal for industrial drive applications. ● Withstands 1.5× rated current for 60s to handle power surges and fluctuations. ● Delivers only 2% voltage drop for stable power transmission and minimal energy loss. ● Uses precision vacuum impregnation to eliminate air gaps and boost thermal stability.
    $389.68

    3 Phase AC Line Reactor, 30 HP Output

    ● Supports global voltage options (220V–480V), ideal for worldwide industrial applications. ● Keeps voltage drop at just 2% to minimize energy loss. ● Operates reliably in temperatures from -25℃ to +45℃, adapting to extreme conditions. ● Offers optional copper/aluminum windings to balance cost efficiency and high conductivity for diverse needs.
    $389.68

    3 Phase AC Line Reactor, 50 HP Output

    ● Supports 220V–480V voltages with aluminum or copper material options. ● Effectively suppresses harmonics to protect your systems and extend equipment service life. ● Operates at ≤65dB noise level with a compact 10kg design. ● Direct factory sales deliver unbeatable pricing for cost-effective industrial solutions.
    $505.84

    3 Phase AC Line Reactor, 75 HP Output

    ● Supports 3-phase operation with wide voltage and 50/60Hz frequency. ● Delivers 150A rated current with overload capacity for 60s, ensuring stable performance. ● Features vacuum impregnation to eliminate air gaps, enhancing thermal stability. ● Maintains a 2% voltage drop to effectively stabilize power supply and protect equipment.
    $583.46

    3 Phase AC Line Reactor, 100 HP Output

    ● Supports 380V with optional 220V–480V outputs, adapting to global power grids. ● Boasts ≥100MΩ insulation resistance and Class F/H insulation. ● Epoxy encapsulation forms a tough protective barrier, resisting chemical corrosion. ● Performs reliably from -25℃ to +45℃ and up to 2000m altitude, suitable for diverse conditions.
    $653.12

    3 Phase AC Line Reactor, 150 HP Output

    ● Factory-direct pricing ensures cost-effectiveness without compromising quality. ● Operates at ≤65dB noise level with IP00-IP22 protection and ≥100MΩ insulation resistance. ● Offers flexible aluminium or copper winding options to balance conductive performance. ● Performs reliably in temperatures from -25℃ to +45℃ and altitudes up to 2000m.
    $896.87
    Overview

    Boost your VFD performance with our cost-effective 3-phase AC line reactor (37kW, 90A). Supporting 220V–480V voltages and 50/60Hz frequency, it features superior insulation and rust resistance to protect your equipment. A reliable, budget-friendly choice for stable power delivery and long-lasting industrial use.

    50 HP Input AC Line Reactor Feature

    Feature

    • Versatile Compatibility: 3-phase design supports 220V–480V voltages and 50/60Hz frequencies, perfectly matching global VFD systems.
    • Robust Current Capacity: 90A rated current with 1.5x overload protection (60s duration) ensures stable operation under transient loads.
    • Low Noise & Loss: ≤65dB noise level and 2% voltage drop minimize energy waste and ensure quiet operation.


    Details

    1. Vacuum Impregnation: Removes air gaps for improved thermal stability and mechanical strength, reducing failure risks.
    2. Class H Winding: Resists high temperatures to prolong product lifespan under heavy industrial loads.
    3. Epoxy Encapsulation: Shields against moisture and chemicals, boosting durability in tough working conditions.
    50 HP Input AC Line Reactor Details

    50 HP Input Line Reactor Dimension

    50 HP Input AC Line Reactor Dimension

    Dimension (±5mm)
    L D W W1 H A×B
    195mm 120mm 150mm 92mm 165mm 8.5×20


    50 HP Input Line Reactor Circuit Diagram

    50 HP Input AC Line Reactor Circuit Diagram

    Specs
    Model PH-ACR-0090-0M16-0.4SC
    Basic Phase 3 Phase
    Power 50 hp (37 kW)
    Weight 17 kg
    Technical Parameters Work Voltage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50 Hz/60 Hz
    Rated Current 90A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.156 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altitude ≤2000m
    Application

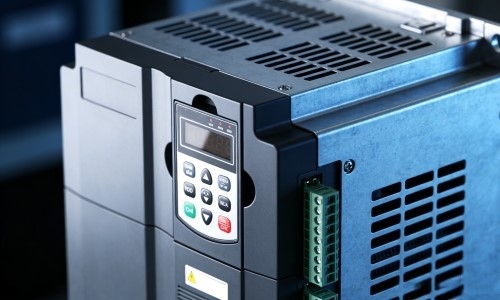

    VFD

    AC Reactor for VFD

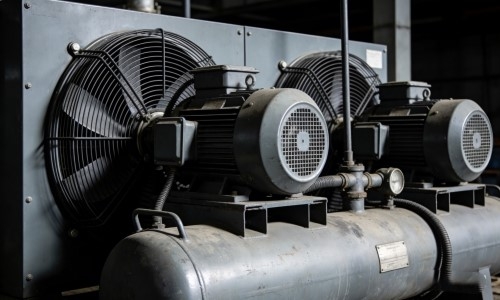

    Fan

    AC Reactor for Fan

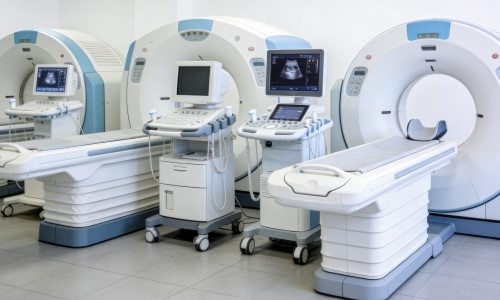

    Medical Imaging Equipment

    AC Reactor for Medical Imaging Equipment

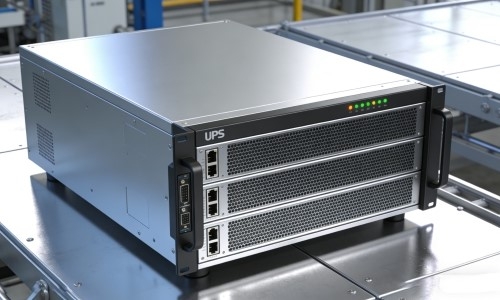

    UPS

    AC Reactor for UPS

    FAQ

    Q1: Does an AC input reactor influence system efficiency at partial load?

    At partial load, the reactor’s loss is very low, while its harmonic suppression still improves overall power factor. This results in stable or even improved system efficiency compared to operation without a reactor.

    Q2: Can I use an AC reactor with a regenerative VFD?

    Yes, it works well with regenerative drives. It stabilizes bidirectional power flow, limits harmonic feedback to the grid, and protects both the drive and power supply during energy regeneration.
