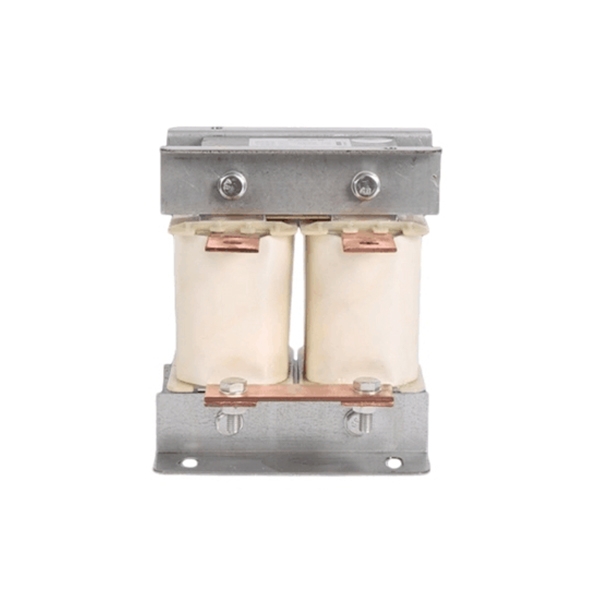

75 hp Single Phase DC Reactor, 150A

SKU: PH-DCR-75

$421.87

● The 75hp DC reactor is a single-phase, available in copper/aluminum, robust and durable. ● Rated current 150A, F.H insulation class, safe and reliable. ● IP00 protection class, voltage range 220V-1200V. ● Used in VFD DC buses and DC power supply systems, it limits current, reduces DC ripple, and suppresses DC harmonics.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This single-phase DC reactor, with a capacity of 75hp, can be used in 3-phase VFDs, smoothing current and limiting inrush current. The DC choke for vfd uses a silicon steel core, providing strong anti-saturation capability. It effectively reduces DC ripple current, suppresses harmonics, and improves system stability.

Feature

Smooths DC current, making the current waveform on the DC side more stable.
Improves the power factor, enhancing the system's energy utilization efficiency.
Suppresses DC side harmonic currents, reducing harmonic interference to the power grid and equipment.
Enhances the rectifier's operational stability, ensuring reliable rectification.
Reduces DC bus voltage fluctuations, providing a stable power supply for downstream equipment.
Protect the inverter from DC-side current surges. Improve motor operating performance and make motor operation smoother.

Details

Cold rolled silicon steel sheet
Iron core wire cover
Tinned copper terminal

75 hp DC Reactor Size

Size

Specs

Model	DCL-150
Phase	1 Phase
Power Adapter	55 kW (75 hp)
Recommended VFD Model	GK3000-4T0550G (75 hp 3 phase VFD)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	150A
Inductance	0.21mH
Insulation Grade	F.H
Dimension	165165185mm (LWH)
Mounting Dimension	120*90mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	17kg

Application

Power Grid

Transportation

Industrial Equipment

Commerce

FAQ

Q1: How to select the inductance of a DC reactor?

The inductance should be selected based on the inverter's power, voltage, and allowable DC ripple. Generally, the inductance should control the DC ripple to around 5%-10%. Higher power or greater requirements for current stability necessitate a larger inductance, but excessive inductance may cause voltage drop or slower response.

Q2: What is the DC reactance ratio?

The DC reactance ratio is the ratio of the DC line reactor's voltage drop to the DC bus voltage. General reference values:

Small power VFD: 2%-3%
Medium power VFD: 3%-5%
High power VFD: 5%-7%

A balance must be struck between ripple suppression and voltage stability when selecting the inductance.
