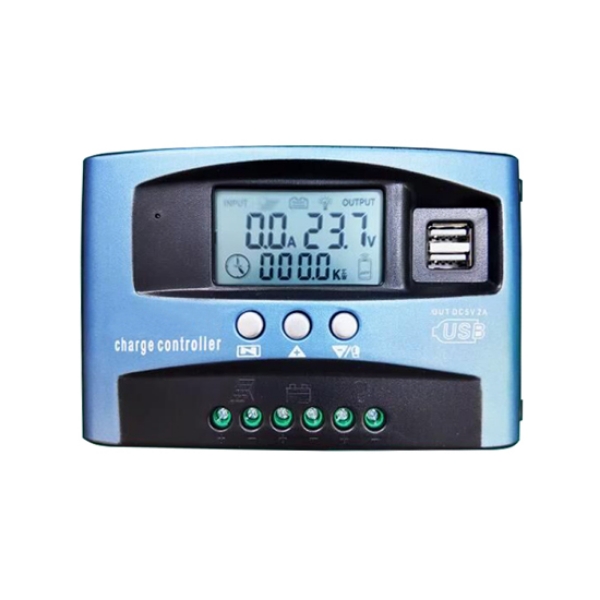

MPPT Charge Controller with Bluetooth/WiFi, 12V/24V-60V

The MPPT charge controller with Bluetooth/WiFi supports 12V/24V/36V/48V/60V battery systems and 20A–60A current, offering high charging efficiency, 0V startup, and battery repair. It has remote APP management, dual USB ports, automatic battery identification, and an industrial-grade chip with a high-resolution LCD display. Built-in protections include lightning, overheating, overcurrent, short-circuit, and reverse connection, all with automatic recovery. With a thick metal heat sink and two-way MPPT tracking, charge controller ensures stable performance in off-grid solar systems, RVs, boats, home backups, and portable power setups.

Feature

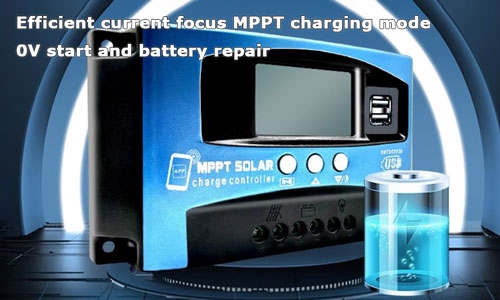

• Efficient current focus MPPT charging mode.
• Solar charge controller support 12V/24V/36V/48V/60V battery automatic identification.
• 0V start and battery repair, Mobile APP management.
• Non-stop detection during charging, two-way focus tracking.
• Built-in protection against lightning strike, overheating, overcurrent, short-circuit protection, open-circuit protection reverse connection protection, all of which are automatic recovery type, will not damage the controller.

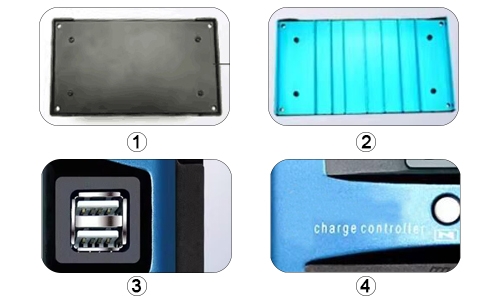

Details

1. App Integration: Upgraded version with more APP icons and mobile APP functionality.
2. High-Resolution LCD Screen: MPPT charge controller Large high-definition LCD display for improved user interaction.
3. Dual USB Outputs: Supports USB ports for charging mobile phones, iPads, and similar devices.
4. Metal Heat Sink: Thick metal heat sink enhances heat dissipation, enabling normal operation in high-temperature environments.

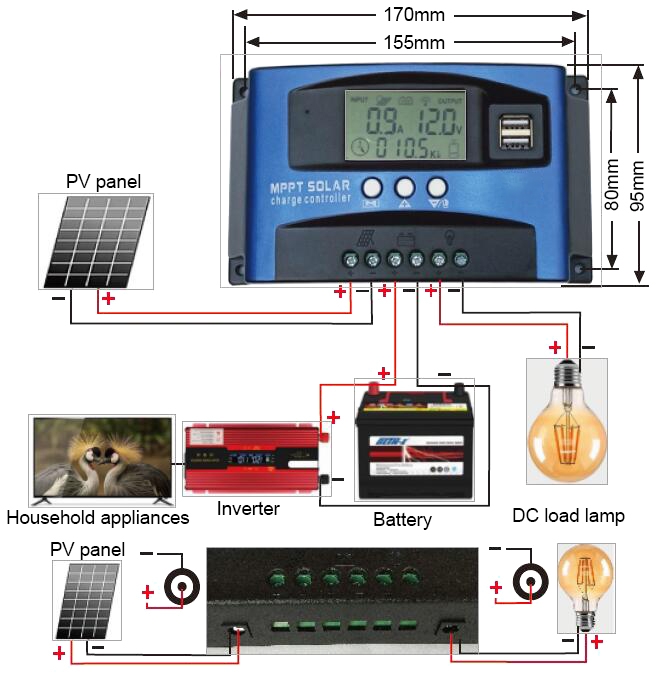

Size and Generation System Connection Diagram

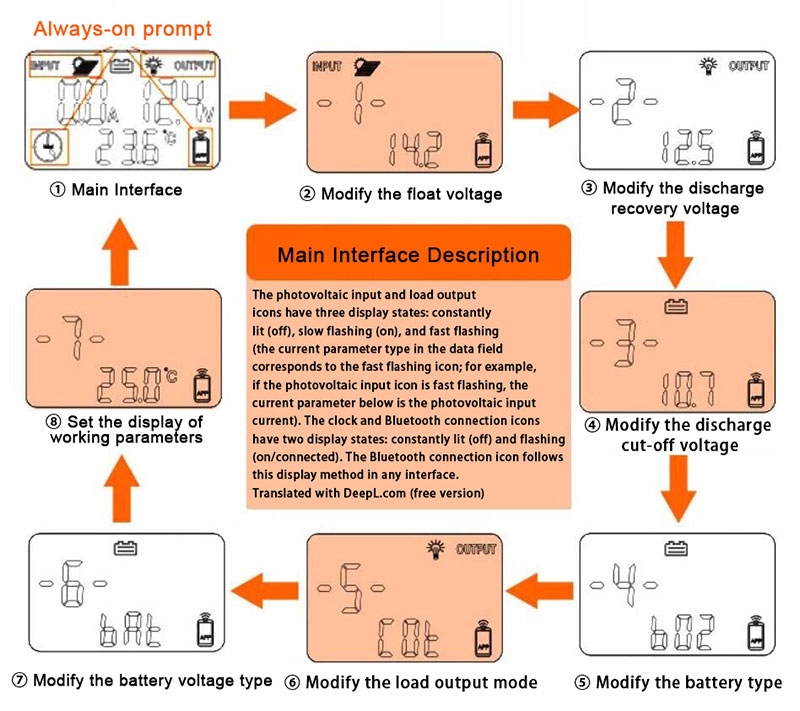

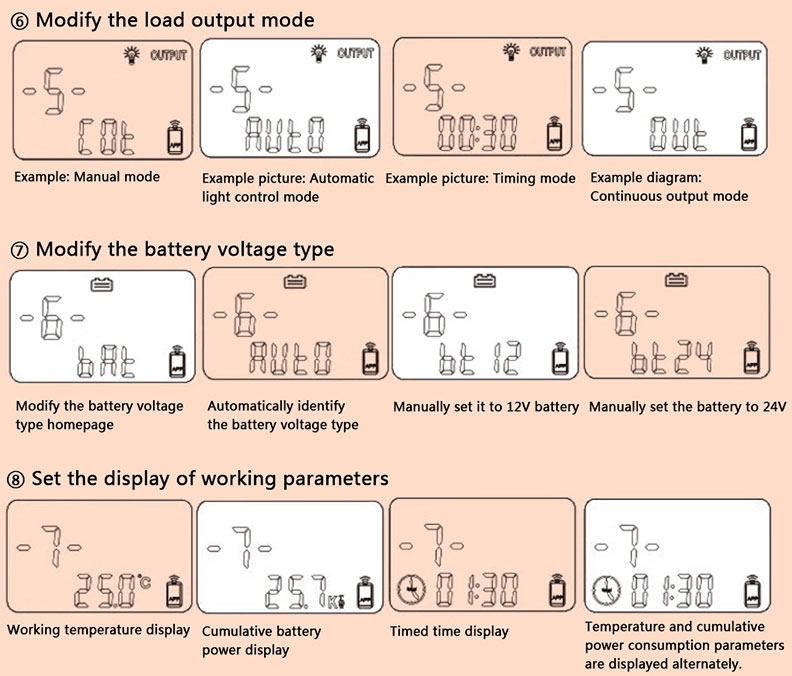

Display Interface/Parameter Setting
