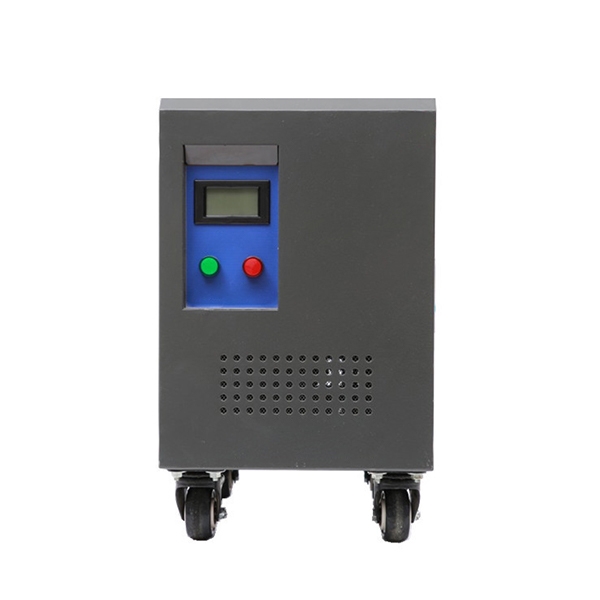

    1 kVA Single Phase Isolation Transformer, 240V to 120V

    1 review(s) | Add your review
    SKU: PH-T-DG1KVA
    $784.36
    ● Single-phase 1kVA isolation transformer for AC voltage conversion. ● Customizable input/output voltages: 110V / 120V / 208V / 220V / 230V / 240V and more supported. ● Choice of aluminum or copper enameled wire winding to suit budget and performance needs. ● Enclosed structure with IP20 protection. ● Stable performance with low noise operation.
    *
    *
    *
    *
    *
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ā±ļø Delivery: 10-20 days
    šŸ”™ 30-day Returns
    Related products

    500VA Single Phase Isolation Transformer, 220V to 110V

    ● 500VA single-phase dry-type isolation transformer, steps down 220V to 110V; step-up 110V to 220V also available. ● Flexible voltage configuration, primary and secondary voltages both support a wide range: 110V / 120V / 208V / 220V / 230V / 240V. ● Optional aluminum or copper wire winding; CE & ISO certified. ● Working efficiency ≥95%, natural air self-cooling, 50Hz/60Hz compatible.
    $547.25

    800VA Single Phase Isolation Transformer, 110V to 240V

    ● 800 VA single-phase isolation transformer for sale, step up 110V to 240V or step down 240V to 110V. ● Wide voltage compatibility: primary and secondary voltages customizable across 110V / 120V / 208V / 220V / 230V / 240V and more. ● Dry-type air self-cooling design; compatible with AC 50Hz / 60Hz circuits. ● Class H insulation, IP20 protection grade; working efficiency ≥95%. ● Zero waveform distortion — complete galvanic isolation between primary and secondary sides. ● Trusted across industrial, commercial, and infrastructure applications.
    $633.84

    2 kVA Single Phase Isolation Transformer, 240V to 110V

    ● 2 kVA dry-type single-phase isolation transformer, ideal for residential, commercial, and light industrial use. ● Supports a wide range of voltage configurations: 110V / 120V / 208V / 220V / 230V / 240V on both primary and secondary sides. ● Multiple wiring options: 240V→110V, 208V→120V, 110V→230V, and more — fully customizable to application needs. ● Rated for 50 Hz and 60 Hz systems, compatible with global power standards. ● Choice of enameled copper wire or aluminum wire winding to suit different budgets and performance needs. ● Up to 95% efficiency with low core loss, reducing operating costs by up to 30%.
    $854.47

    3 kVA Single Phase Isolation Transformer, 208V to 240V

    ● 3kVA isolation transformer, default 208V to 240V step-up; step-down and custom voltages available. ● Full galvanic isolation between primary and secondary sides. ● Flexible voltage selection: 110V / 120V / 208V / 220V / 230V / 240V configurable on both input and output. ● Natural air self-cooling; IP20 encapsulated enclosure for dust and impact protection.
    $1,036.45

    4 kVA Single Phase Isolation Transformer, 220V to 110V

    ● 4 kVA single-phase isolation transformer, steps down 220V to 110V or steps up 110V to 220V; other voltages customizable. ● Supports a wide range of voltage configurations: 110V / 120V / 208V / 220V / 230V / 240V on both primary and secondary sides. ● Choice of enclosure type (IP20) or open type; aluminum or copper enameled wire winding available. ● Zero waveform distortion; complete galvanic isolation between primary and secondary circuits.
    $1,135.24

    5 kVA Single Phase Isolation Transformer, 230V to 120V

    ● 5 kVA isolation transformer, default 230V to 120V step-down; step-up and custom voltages available. ● Compatible with AC 50Hz / 60Hz for global applications. ● Multi-voltage support: 110V / 120V / 208V / 220V / 230V / 240V configurable on both primary and secondary sides. ● Working efficiency up to 95%; enhanced dielectric strength and insulation resistance for higher safety. ● Dry-type natural air self-cooling; IP20 enclosure protection; aluminum or copper wire winding optional.
    $1,436.54
    Overview

    The single-phase 1 kVA isolation transformer offers reliable, cost-effective voltage conversion between 240V and 120V AC,  in both step-down and step-up configurations. The sealed IP20 enclosure provides effective protection against dust, moisture, and mechanical shock, while the cold-rolled oriented silicon steel core delivers low core loss and stable magnetization characteristics.  A multi-hole enclosure design with rear-mounted cooling fan maintains optimal operating temperatures, and an LCD digital display with two-color indicator lights offers clear, at-a-glance voltage monitoring. Four 360Ā° universal casters complete the package for flexible on-site positioning.

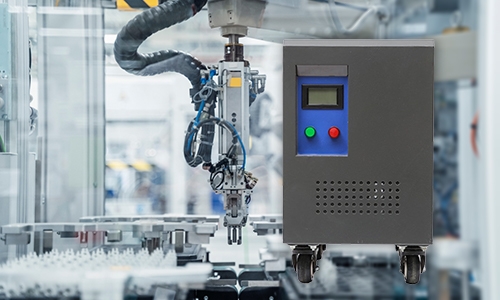

    1 kVA single-phase isolation transformer feature

    Feature

    • Cooling & Heat Dissipation: Designed with ventilation holes and a rear cooling fan, ensuring effective heat dissipation and stable long-term operation.
    • High-Temperature Resistant Insulation: Uses enameled wire with up to 180Ā°C resistance, providing strong insulation and extended service life.
    • Low Loss Core & Quiet Operation: Built with oriented silicon steel sheets, reducing core loss while maintaining low noise and efficient performance.
    • Real-Time Monitoring & Indicators: Equipped with an LCD and dual indicators for clear input/output voltage monitoring during operation.
    • Enclosure with Mobility Design: Features a protective enclosure (IP20) and 360Ā° universal casters, making it easy to move and suitable for various environments.


    1. Details

      1. Power indicator
      2. Over-temperature indicator
      3. Output voltage digital display screen
    Single-phase isolation transformer details

    Single-phase Isolation Transformer Schematic Diagram

    0.5kVA to 10kVA single-phase isolation transformer schematic diagram

    Single-phase Isolation Transformer Dimension

    Single-phase isolation transformer dimension



    Aluminium Wire Transformer Size Copper Wire Transformer Size
    Without Enclosure: a*b*c=150*170*180 (mm) Without Enclosure: a*b*c=150*160*180 (mm)
    Mouting Size: D*E=120*125 (mm) (aperture: 15*8mm) Mouting Size: D*E=120*115 (mm) (aperture: 15*8mm)
    With Enclosure: A*B*C=250*360*420 (mm) With Enclosure: A*B*C=250*360*420 (mm)
    Specs
    Basics
    Phase Single-phase
    Capacity 1000 VA / 1 kVA
    Weight 29 kg
    Technical Parameters
    Primary Voltage 240V AC (optional: 110V/ 120V/ 208V/ 220V/ 230V)
    Secondary Voltage 120V AC (optional: 110V/ 208V/ 220V/ 230V/ 240V)
    Frequency 50Hz / 60Hz
    Winding Material Aluminium / Copper wire (Optional)
    Work Efficiency ā‰„95%
    Insulation Resistance ā‰„50 MĪ©
    Electrical Strength 2000V AC / 1 min
    Noise ā‰¤35dB (1 meter)
    Insulation Grade Grade B (130ā„ƒ) / Grade F (155ā„ƒ) / Grade H (180ā„ƒ)
    Induced Overvoltage Withstand Test 125Hz / 800V / min
    Impedance Voltage About 6%
    Total Losses 10%
    Cooling Mode Natural or air cooling
    Overload Capacity Allow more than 1.2 times the rated load to work for up to 1 hour
    Enclosure Protection Grade IP20
    Certificate CE, ISO
    Warranty 12 months
    Working Environment
    Temperature -15ā„ƒ ~ +45ā„ƒ

    Note:

    1. The transformer can only convert voltage, and CANNOT convert frequency.
    2. The transformer CANNOT convert 1-phase voltage to 3-phase voltage.
    3. Support voltage customization, various specifications customization.
    Application
    Single-phase isolation transformer for industrial equipment

    Industrial Equipment

    Single-phase isolation transformer for factory and industrial parks

    Factory & Industrial Parks

    Single-phase isolation transformer for machine tools and equipment

    Machine Tools & Equipment

    Single-phase isolation transformer for communication equipment

    Communication Equipment

    FAQ

    Q1. Can the input and output voltages of this 1 kVA isolation transformer be customized?

    Yes. While the default configuration converts 240V (primary) to 120V (secondary), both input and output voltages are fully customizable. Supported options include 110V, 120V, 208V, 220V, 230V, and 240V on both sides. Step-up configurations (e.g., 120V to 240V) are equally available. Please specify your required voltage pairing at the time of order.

    Q2. What is the advantage of choosing copper wire winding over aluminum wire?

    Copper enameled wire offers higher electrical conductivity and greater resistance to thermal fatigue compared to aluminum wire, making it the preferred choice for applications with higher continuous load demands or longer operating cycles. Aluminum wire winding provides a cost-effective alternative where budget is the primary consideration, with no compromise to the transformer's rated efficiency or insulation class.
